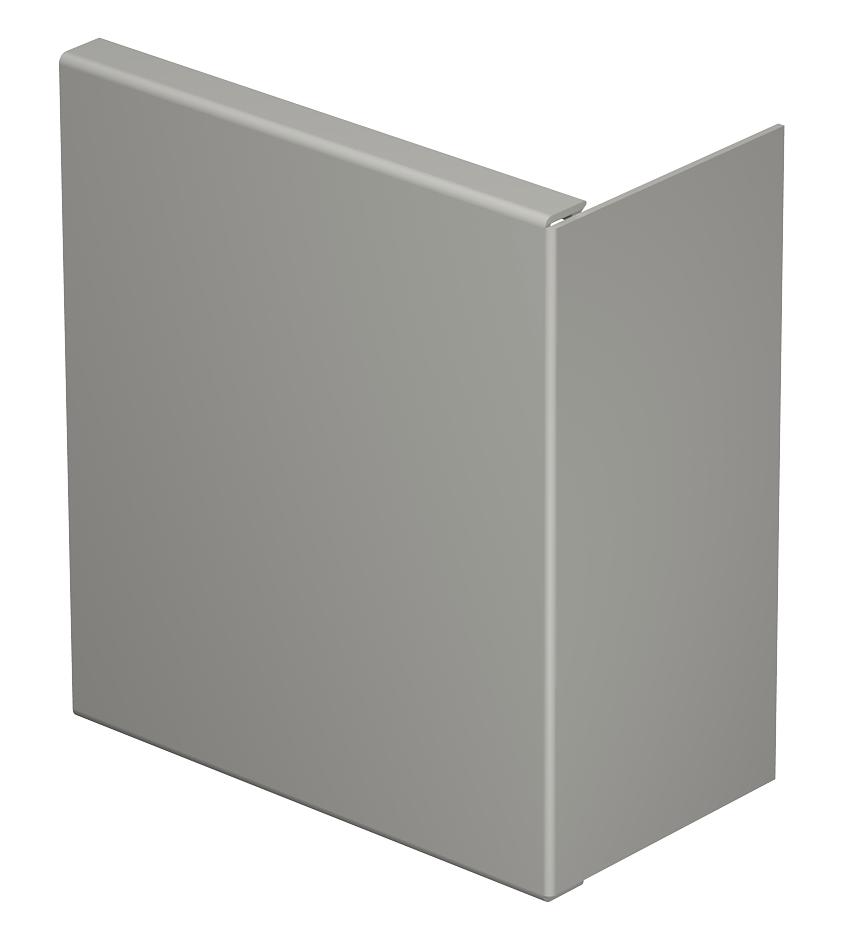

End piece, trunking type WDK 80170

Item no. / Types

Dimension a	150 mm

Dimension b	170 mm

Dimension H	170 mm

Colour

Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	80x170mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE80170GR	150 mm	170 mm	170 mm	Stone grey; RAL 7030	6024858	piece	10 piece
WDK HE80170CW	150 mm	170 mm	170 mm	Cream; RAL 9001	6163009	piece	10 piece
WDK HE80170LGR	150 mm	170 mm	170 mm	Light grey; RAL 7035	6183913	piece	10 piece
WDK HE80170RW	150 mm	170 mm	170 mm	Pure white; RAL 9010	6193387	piece	10 piece
