End piece, trunking type WDK 80170 150 | 170 | 170 | Pure white; RAL 9010
morepic-1 morepic-2

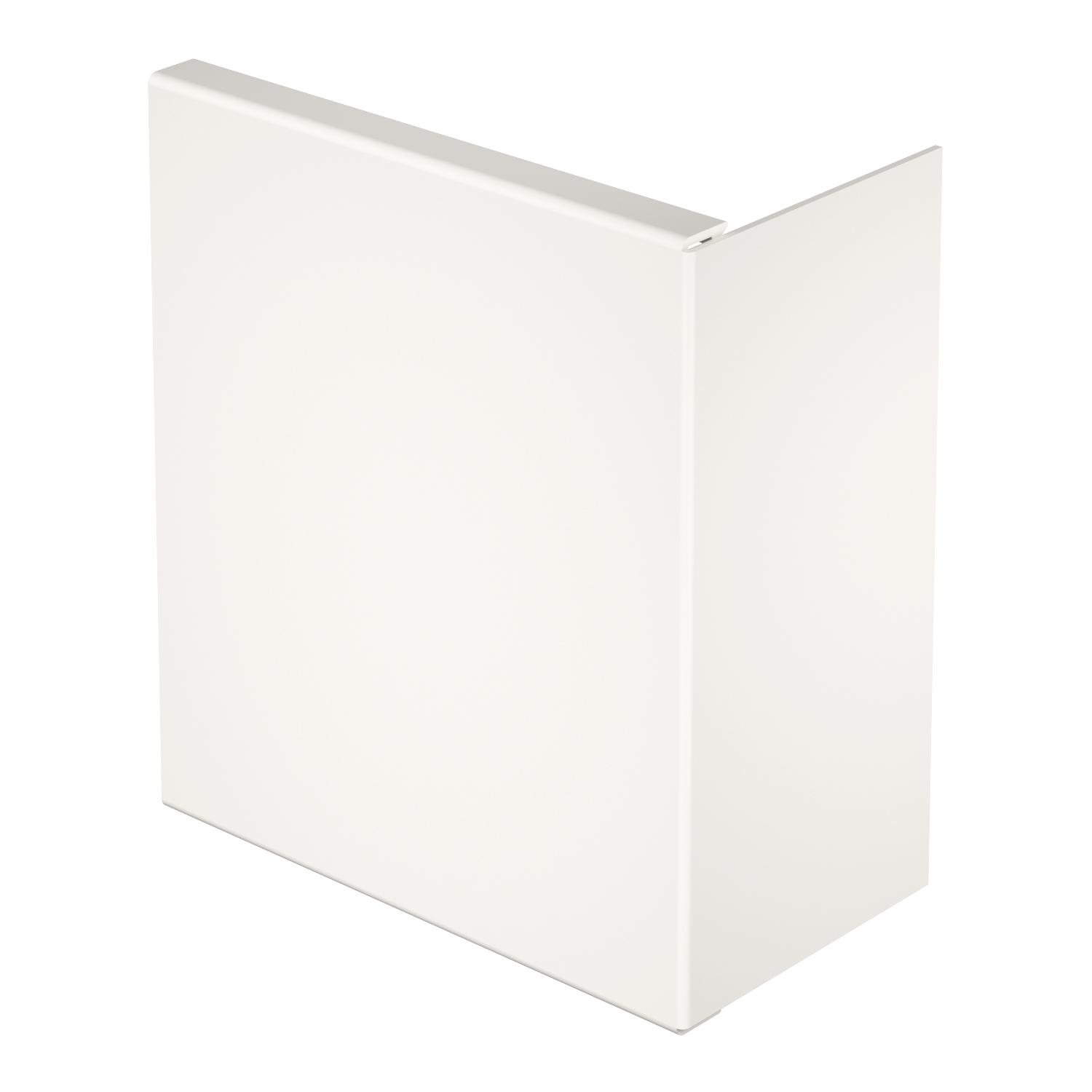

End piece, trunking type WDK 80170

Item no. 6193387 | EAN 4012195042518

150 mm
170 mm
170 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 80x170mm
Dimension a 150 mm
Dimension b 170 mm
Dimension H 170 mm
Fastening type Lockable
Halogen-free no
Height 80 mm
Length 150 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 170 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE80170GR 150 mm 170 mm 170 mm Stone grey; RAL 7030 6024858
10 piece
WDK HE80170CW 150 mm 170 mm 170 mm Cream; RAL 9001 6163009
10 piece
WDK HE80170LGR 150 mm 170 mm 170 mm Light grey; RAL 7035 6183913
10 piece
WDK HE80170RW 150 mm 170 mm 170 mm Pure white; RAL 9010 6193387
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE80170RW / 6193387 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE80170RW / 6193387 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE80170RW / 6193387 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE80170RW / 6193387 , 0.12MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
