End piece, trunking type WDK 60150

Item no. / Types

Dimension a	150 mm

Dimension b	60 mm

Dimension H	150 mm

Colour

Product description

Product description

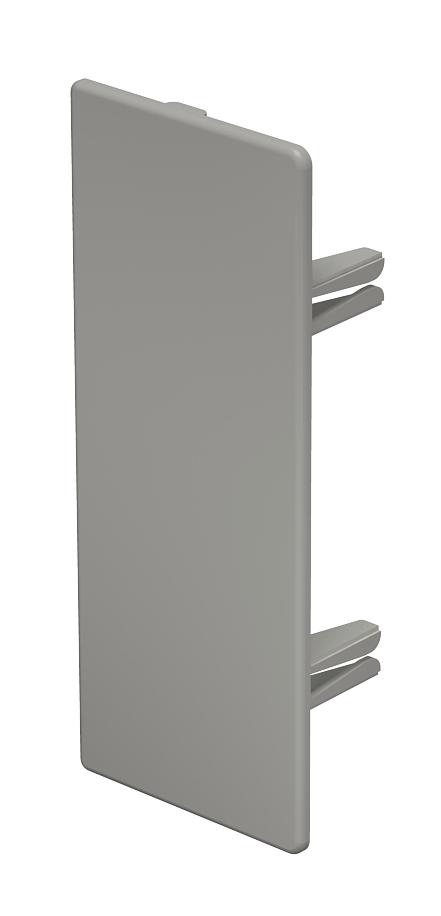

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	60x150mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE60150GR	150 mm	60 mm	150 mm	Stone grey; RAL 7030	6024823	piece	10 piece
WDK HE60150CW	150 mm	60 mm	150 mm	Cream; RAL 9001	6162878	piece	10 piece
WDK HE60150LGR	150 mm	60 mm	150 mm	Light grey; RAL 7035	6183840	piece	10 piece
WDK HE60150RW	150 mm	60 mm	150 mm	Pure white; RAL 9010	6193323	piece	10 piece
