End piece, trunking type WDK 60150 150 | 60 | 150 | Light grey; RAL 7035
morepic-1 morepic-2

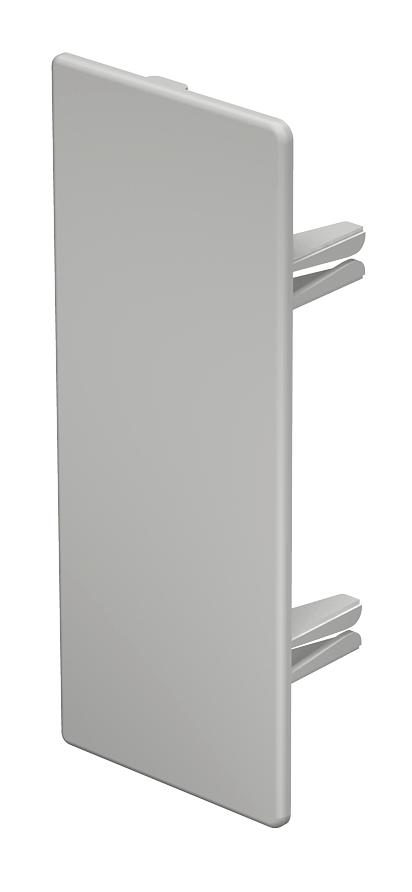

End piece, trunking type WDK 60150

Item no. 6183840 | EAN 4012196678617

150 mm
60 mm
150 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 60x150mm
Dimension a 150 mm
Dimension b 60 mm
Dimension H 150 mm
Fastening type Lockable
Halogen-free no
Height 60 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 150 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE60150GR 150 mm 60 mm 150 mm Stone grey; RAL 7030 6024823
10 piece
WDK HE60150CW 150 mm 60 mm 150 mm Cream; RAL 9001 6162878
10 piece
WDK HE60150LGR 150 mm 60 mm 150 mm Light grey; RAL 7035 6183840
10 piece
WDK HE60150RW 150 mm 60 mm 150 mm Pure white; RAL 9010 6193323
10 piece
