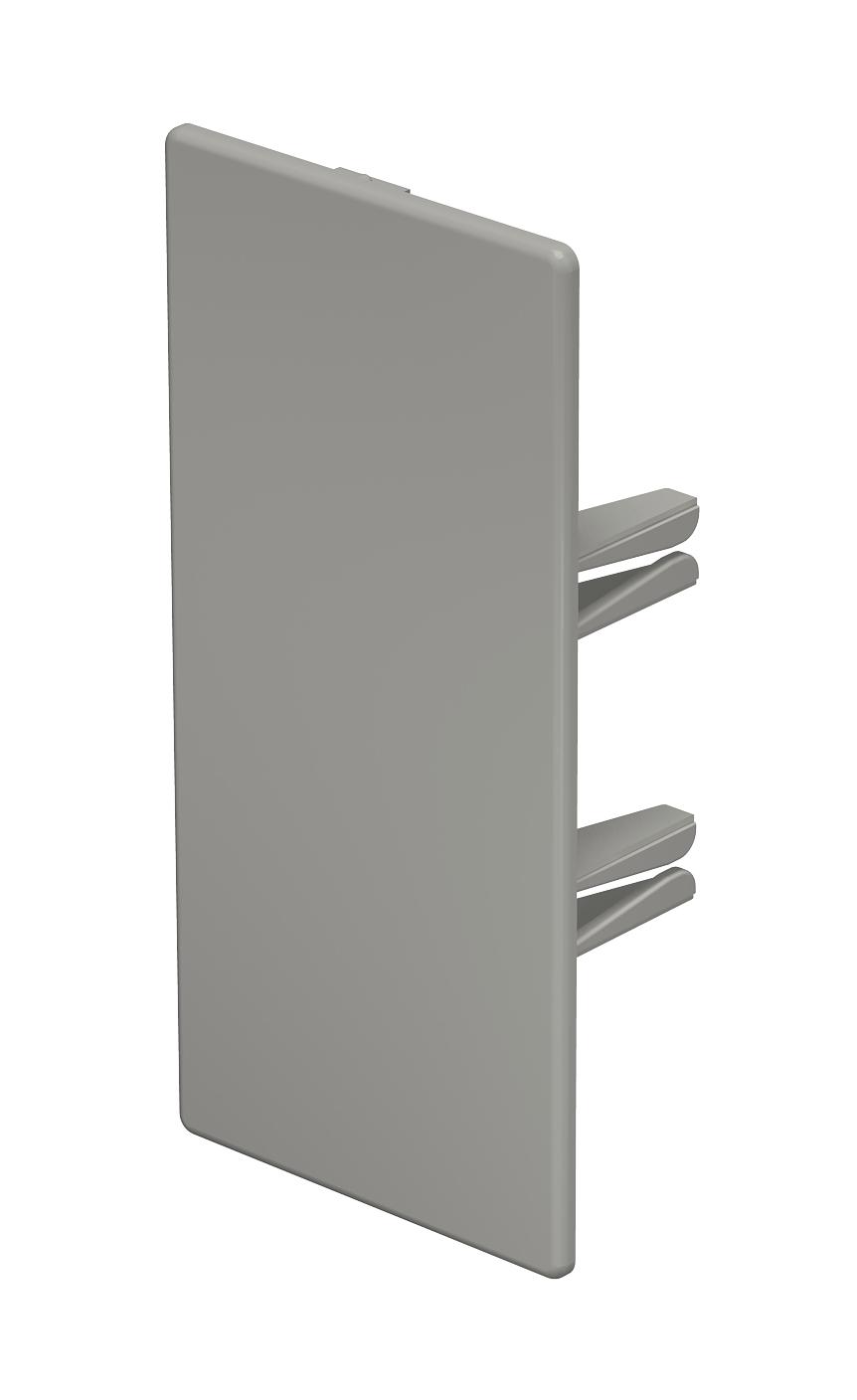

End piece, trunking type WDK 60130
Item no. 6022529 | EAN 4012196022816
- Product description
-
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 60x130mm Fastening type Lockable Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Dimensions
Dimension a 130 mm Dimension b 61 mm Dimension H 130 mm Height 60 mm Length 27,5 mm Width 130 mm - All types
-
All types
- Downloads
-
Data sheet WDK HE60130GR / 6022529 , 0.25MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HE60130GR / 6022529 , 0.13MB , pdfUK Declaration of Conformity WDK HE60130GR / 6022529 , 0.14MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
