End piece, trunking type WDK 60110

Item no. / Types

Dimension a	110 mm

Dimension b	60 mm

Dimension H	110 mm

Colour

Product description

Product description

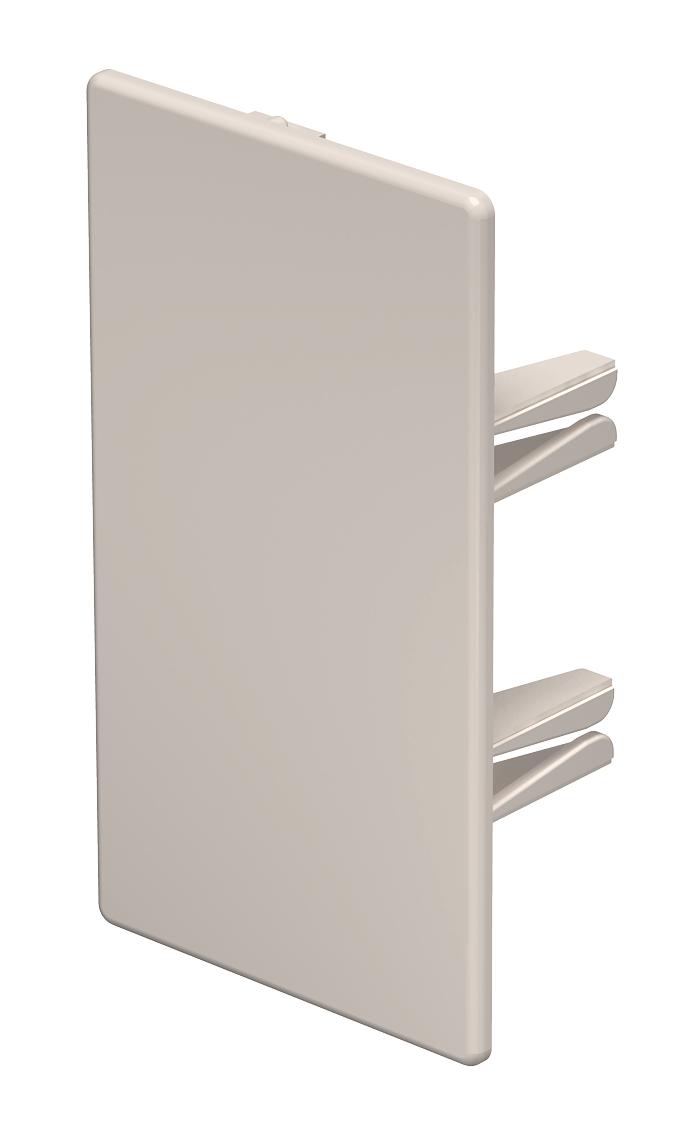

End piece for closing the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.

Technical data

Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right
Width	110 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE60110GR	110 mm	60 mm	110 mm	Stone grey; RAL 7030	6022588	piece	10 piece
WDK HE60110CW	110 mm	60 mm	110 mm	Cream; RAL 9001	6162827	piece	10 piece
WDK HE60110LGR	110 mm	60 mm	110 mm	Light grey; RAL 7035	6183824	piece	10 piece
WDK HE60110RW	110 mm	60 mm	110 mm	Pure white; RAL 9010	6193307	piece	10 piece
