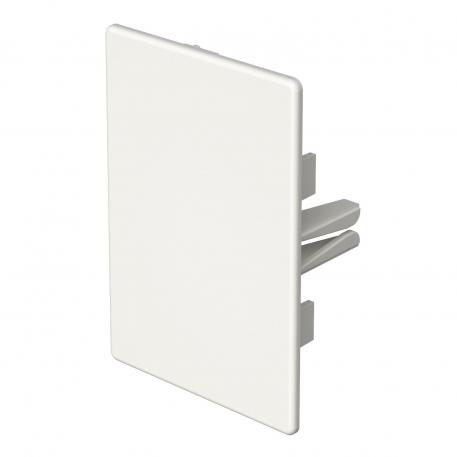

End piece, trunking type WDK 60090

Item no. / Types

Dimension a	90 mm

Dimension b	60 mm

Dimension H	90 mm

Colour

Product description

Product description

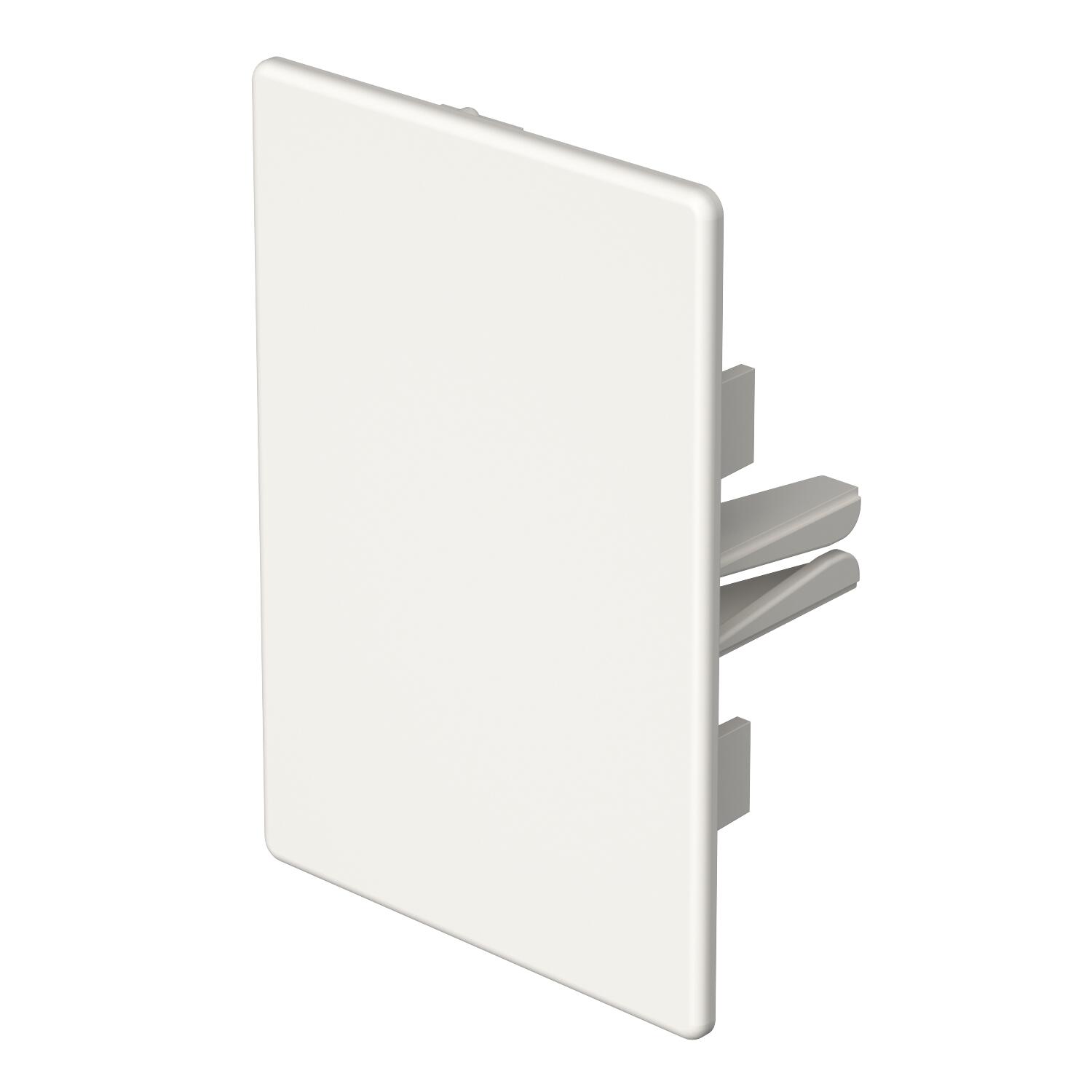

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
CO₂ Footprint (GWP) Cradle-to-Gate	7,354 kg CO₂e / 1 Piece
Dimension	60x90mm
Dimension a	90 mm
Dimension b	60 mm
Dimension H	90 mm
Fastening type	Lockable
Halogen-free	no
Height	60 mm

Length	27,5 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right
Width	90 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE60090GR	90 mm	60 mm	90 mm	Stone grey; RAL 7030	6022502	piece	10 piece
WDK HE60090CW	90 mm	60 mm	90 mm	Cream; RAL 9001	6162819	piece	10 piece
WDK HE60090LGR	90 mm	60 mm	90 mm	Light grey; RAL 7035	6183816	piece	10 piece
WDK HE60090RW	90 mm	60 mm	90 mm	Pure white; RAL 9010	6193293	piece	10 piece
