End piece, trunking type WDK 60060 60 | 60 | 60 | Stone grey; RAL 7030
morepic-1 morepic-2

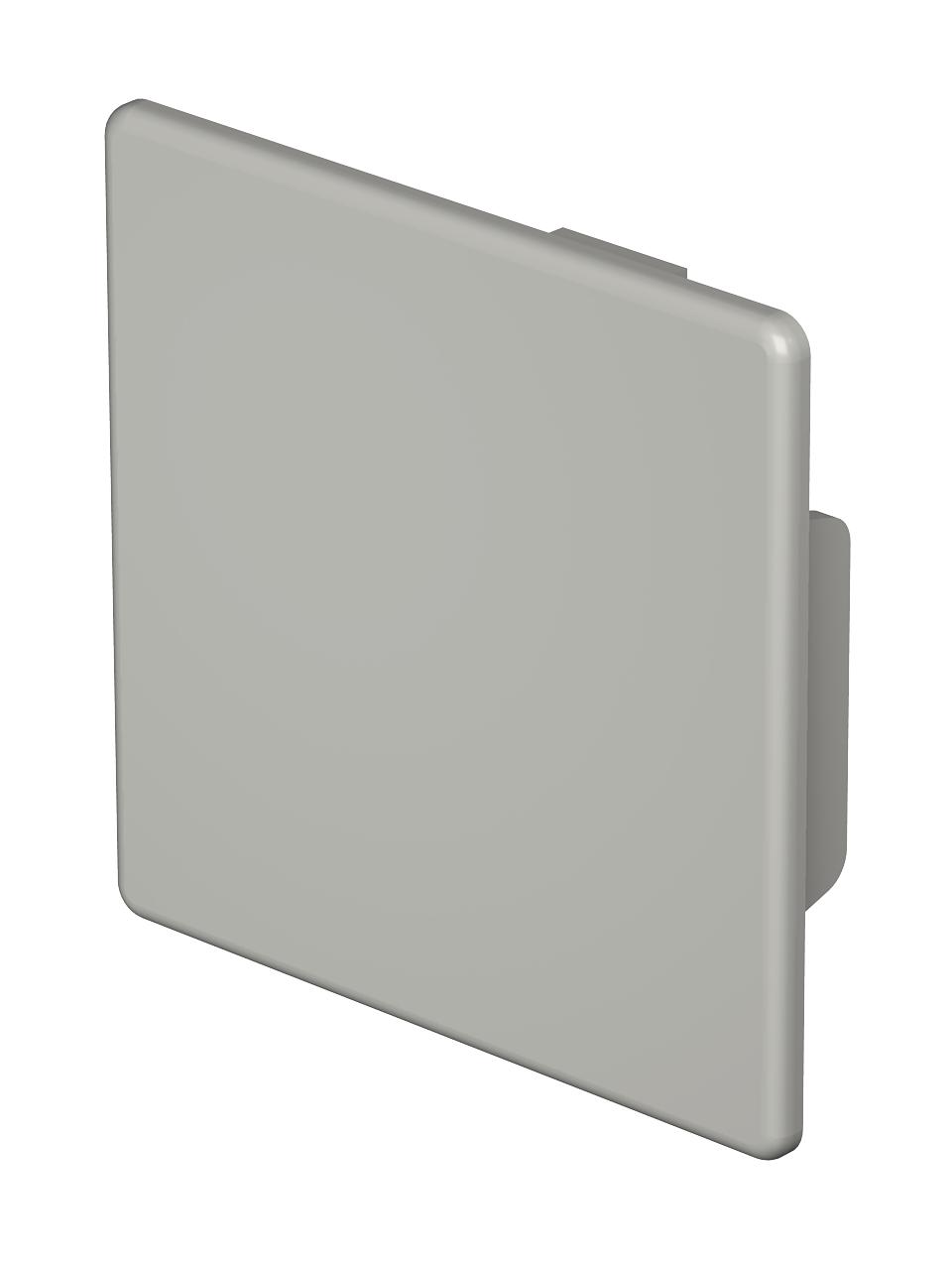

End piece, trunking type WDK 60060

Item no. 6022499 | EAN 4012196022694

60 mm
60 mm
60 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 60x60mm
Dimension a 60 mm
Dimension b 60 mm
Dimension H 60 mm
Fastening type Lockable
Halogen-free no
Height 60 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 60 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE60060GR 60 mm 60 mm 60 mm Stone grey; RAL 7030 6022499
10 piece
WDK HE60060CW 60 mm 60 mm 60 mm Cream; RAL 9001 6162800
10 piece
WDK HE60060LGR 60 mm 60 mm 60 mm Light grey; RAL 7035 6183808
10 piece
WDK HE60060RW 60 mm 60 mm 60 mm Pure white; RAL 9010 6193285
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE60060GR / 6022499 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE60060GR / 6022499 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE60060GR / 6022499 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE60060GR / 6022499 , 0.12MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
