End piece, trunking type WDK 40060 60 | 40 | 60 | Cream; RAL 9001
morepic-1 morepic-2

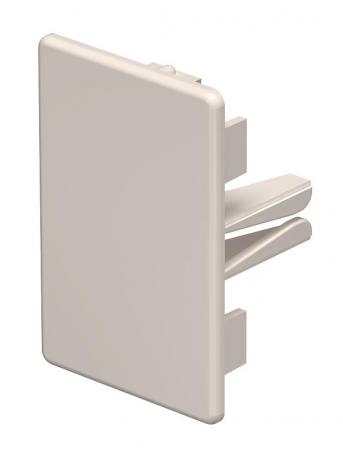

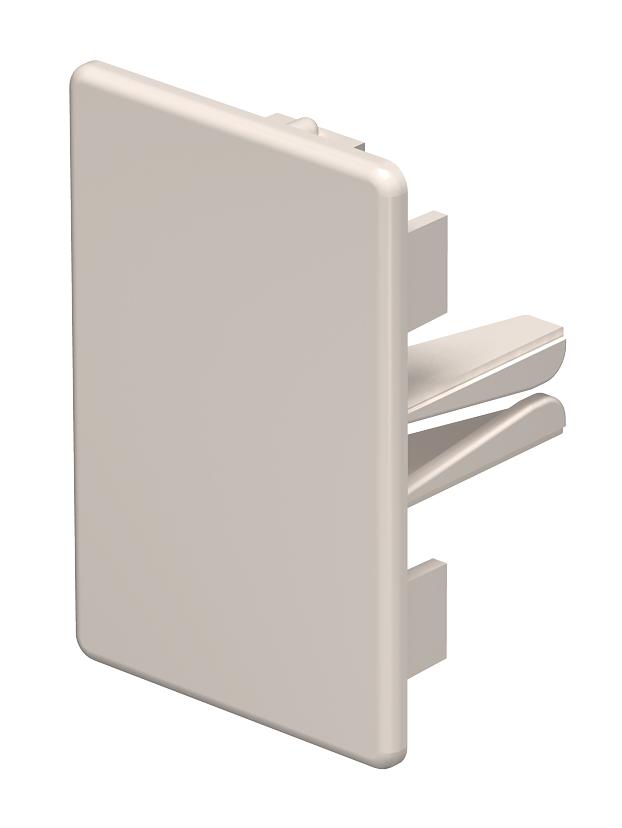

End piece, trunking type WDK 40060

Item no. 6162606 | EAN 4012196109517

60 mm
40 mm
60 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 40x60mm
Dimension a 60 mm
Dimension b 40 mm
Dimension H 60 mm
Fastening type Lockable
Halogen-free no
Height 40 mm
Length 27,5 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 60 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE40060GR 60 mm 40 mm 60 mm Stone grey; RAL 7030 6021492
10 piece
WDK HE40060CW 60 mm 40 mm 60 mm Cream; RAL 9001 6162606
10 piece
WDK HE40060LGR 60 mm 40 mm 60 mm Light grey; RAL 7035 6183735
10 piece
WDK HE40060RW 60 mm 40 mm 60 mm Pure white; RAL 9010 6193226
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE40060CW / 6162606 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE40060CW / 6162606 , 0.14MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
