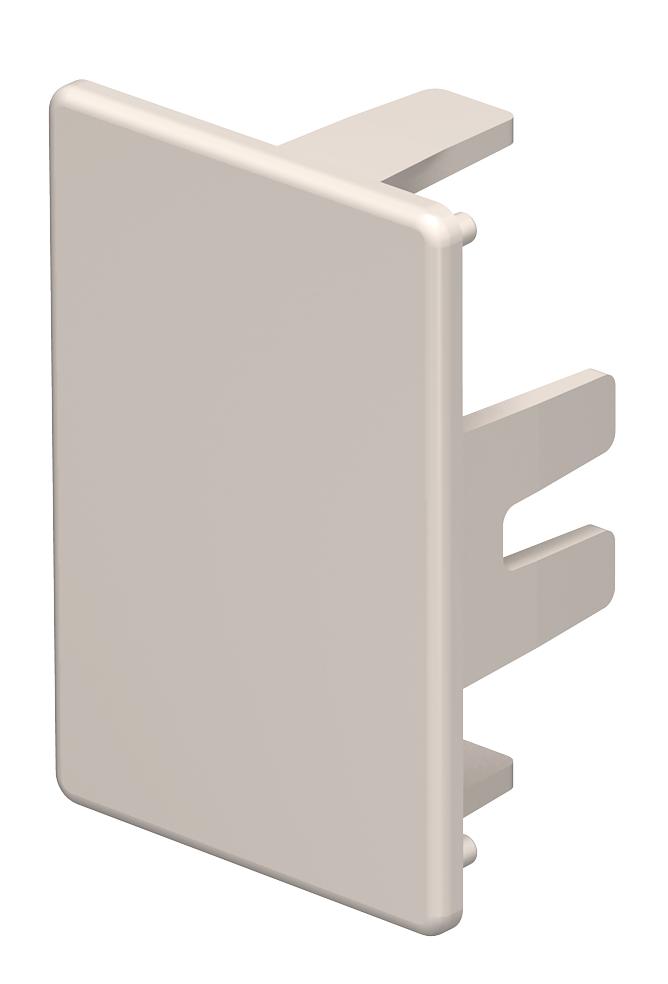

End piece, trunking type WDK 30045

Item no. / Types

Dimension a	45 mm

Dimension b	30 mm

Dimension H	45 mm

Colour

Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	30x45mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE30045GR	45 mm	30 mm	45 mm	Stone grey; RAL 7030	6158803	piece	10 piece
WDK HE30045CW	45 mm	30 mm	45 mm	Cream; RAL 9001	6162584	piece	10 piece
WDK HE30045LGR	45 mm	30 mm	45 mm	Light grey; RAL 7035	6183700	piece	10 piece
WDK HE30045RW	45 mm	30 mm	45 mm	Pure white; RAL 9010	6193196	piece	10 piece
