End piece, trunking type WDK 25040 40 | 25 | 40 | Pure white; RAL 9010
morepic-1 morepic-2

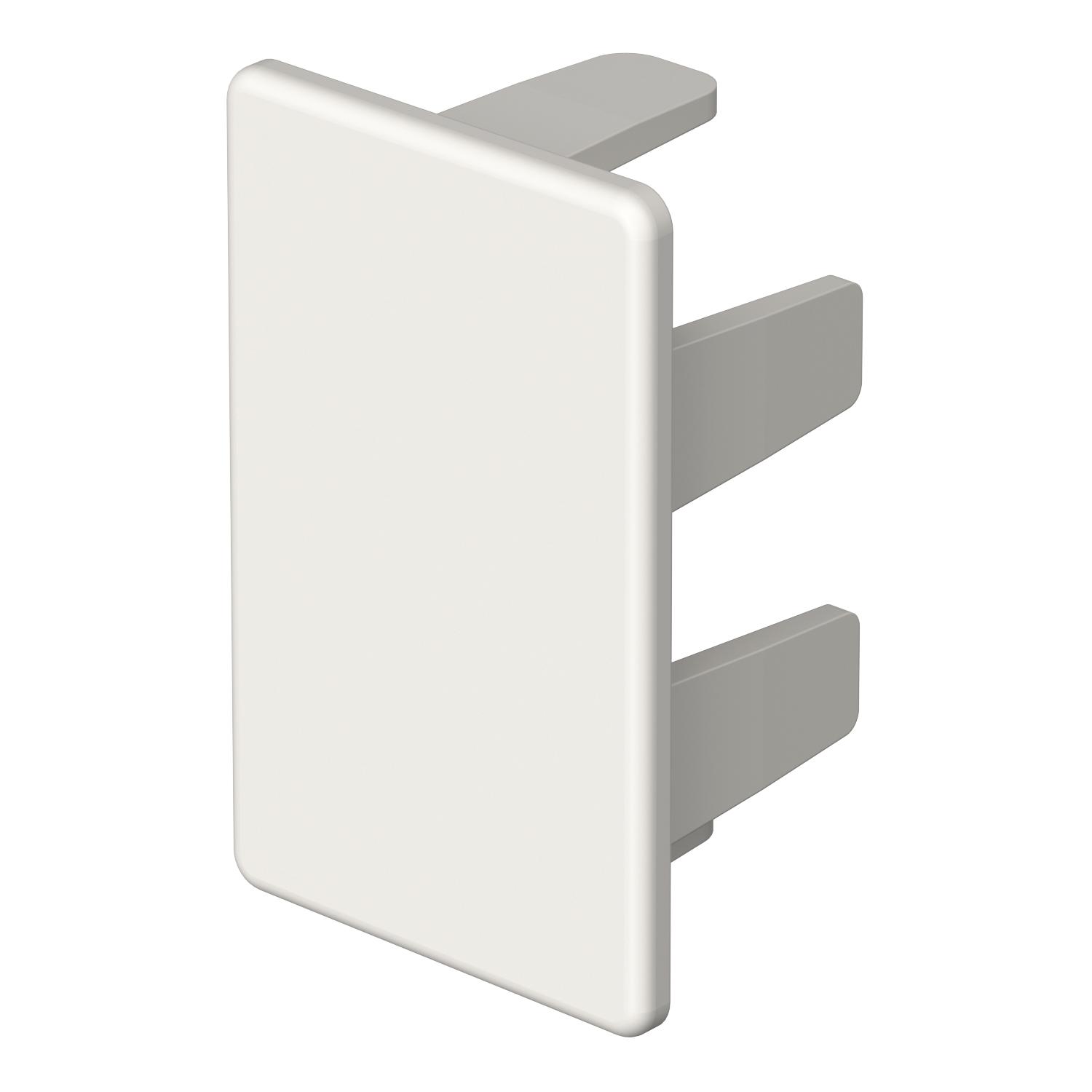

End piece, trunking type WDK 25040

Item no. 6193153 | EAN 4012196797356

40 mm
25 mm
40 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 25x40mm
Dimension a 40 mm
Dimension b 25 mm
Dimension H 40 mm
Fastening type Lockable
Halogen-free no
Height 25 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 40 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE25040GR 40 mm 25 mm 40 mm Stone grey; RAL 7030 6158749
10 piece
WDK HE25040CW 40 mm 25 mm 40 mm Cream; RAL 9001 6162541
10 piece
WDK HE25040RW 40 mm 25 mm 40 mm Pure white; RAL 9010 6193153
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE25040RW / 6193153 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE25040RW / 6193153 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HE25040RW / 6193153 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE25040RW / 6193153 , 0.28MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
