End piece, trunking type WDK 20050 50 | 20 | 50 | Pure white; RAL 9010
morepic-1 morepic-2

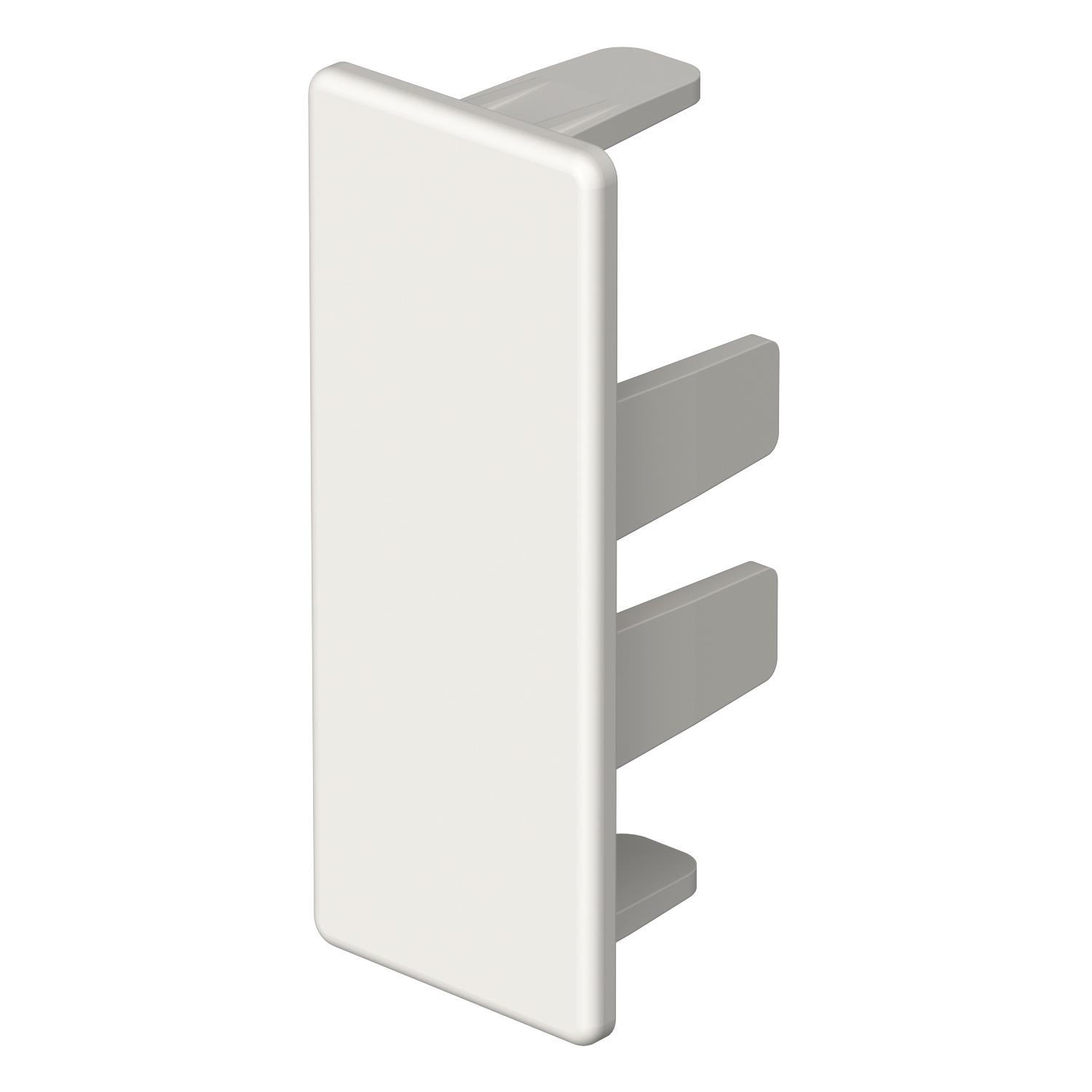

End piece, trunking type WDK 20050

Item no. 6154557 | EAN 4012196493395

50 mm
20 mm
50 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 20x50mm
Dimension a 50 mm
Dimension b 20 mm
Dimension H 50 mm
Fastening type Lockable
Halogen-free no
Height 20 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 50 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE20050CW 50 mm 20 mm 50 mm Cream; RAL 9001 6153674
10 piece
WDK HE20050RW 50 mm 20 mm 50 mm Pure white; RAL 9010 6154557
10 piece
