End piece, trunking type WDK 15030 30 | 17 | 30 | Stone grey; RAL 7030
morepic-1 morepic-2

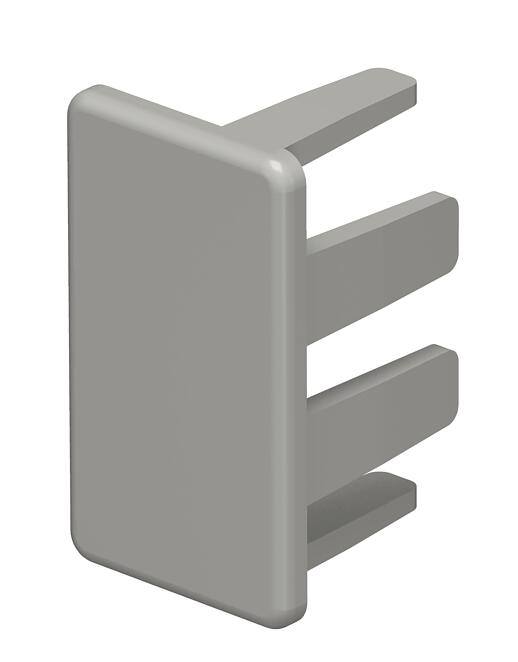

End piece, trunking type WDK 15030

Item no. 6158714 | EAN 4012196434534

30 mm
17 mm
30 mm
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Stone grey; RAL 7030
Dimension 15x30mm
Dimension a 30 mm
Dimension b 17 mm
Dimension H 30 mm
Fastening type Lockable
Halogen-free no
Height 17 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 30 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE15030GR 30 mm 17 mm 30 mm Stone grey; RAL 7030 6158714
10 piece
WDK HE15030CW 30 mm 17 mm 30 mm Cream; RAL 9001 6162517
10 piece
WDK HE15030RW 30 mm 17 mm 30 mm Pure white; RAL 9010 6193102
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HE15030GR / 6158714 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HE15030GR / 6158714 , 0.14MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
