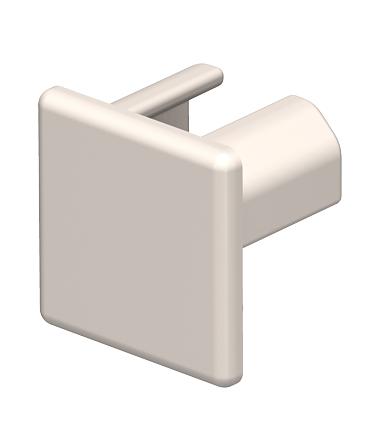

End piece, trunking type WDK 15015

Item no. / Types

Dimension a	15 mm

Dimension b	15 mm

Dimension H	15 mm

Colour

Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	15x15mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE15015GR	15 mm	15 mm	15 mm	Stone grey; RAL 7030	6158692	piece	10 piece
WDK HE15015CW	15 mm	15 mm	15 mm	Cream; RAL 9001	6162495	piece	10 piece
WDK HE15015LGR	15 mm	15 mm	15 mm	Light grey; RAL 7035	6183603	piece	10 piece
WDK HE15015RW	15 mm	15 mm	15 mm	Pure white; RAL 9010	6193099	piece	10 piece
