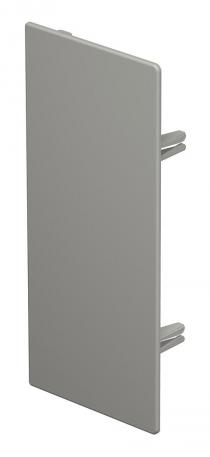

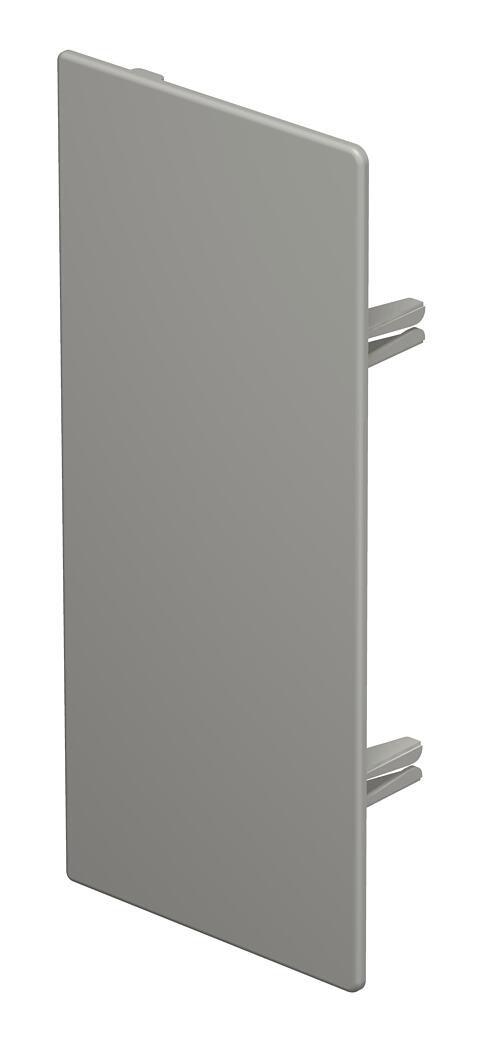

End piece, trunking type WDK 100230

Item no. / Types

Dimension a	230 mm

Dimension b	100 mm

Dimension H	230 mm

Colour

Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	100x230mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE100230GR	230 mm	100 mm	230 mm	Stone grey; RAL 7030	6024904	piece	5 piece
WDK HE100230CW	230 mm	100 mm	230 mm	Cream; RAL 9001	6163076	piece	5 piece
WDK HE100230LGR	230 mm	100 mm	230 mm	Light grey; RAL 7035	6183980	piece	5 piece
WDK HE100230RW	230 mm	100 mm	230 mm	Pure white; RAL 9010	6193399	piece	5 piece
