End piece, trunking type WDK 100130

Item no. / Types

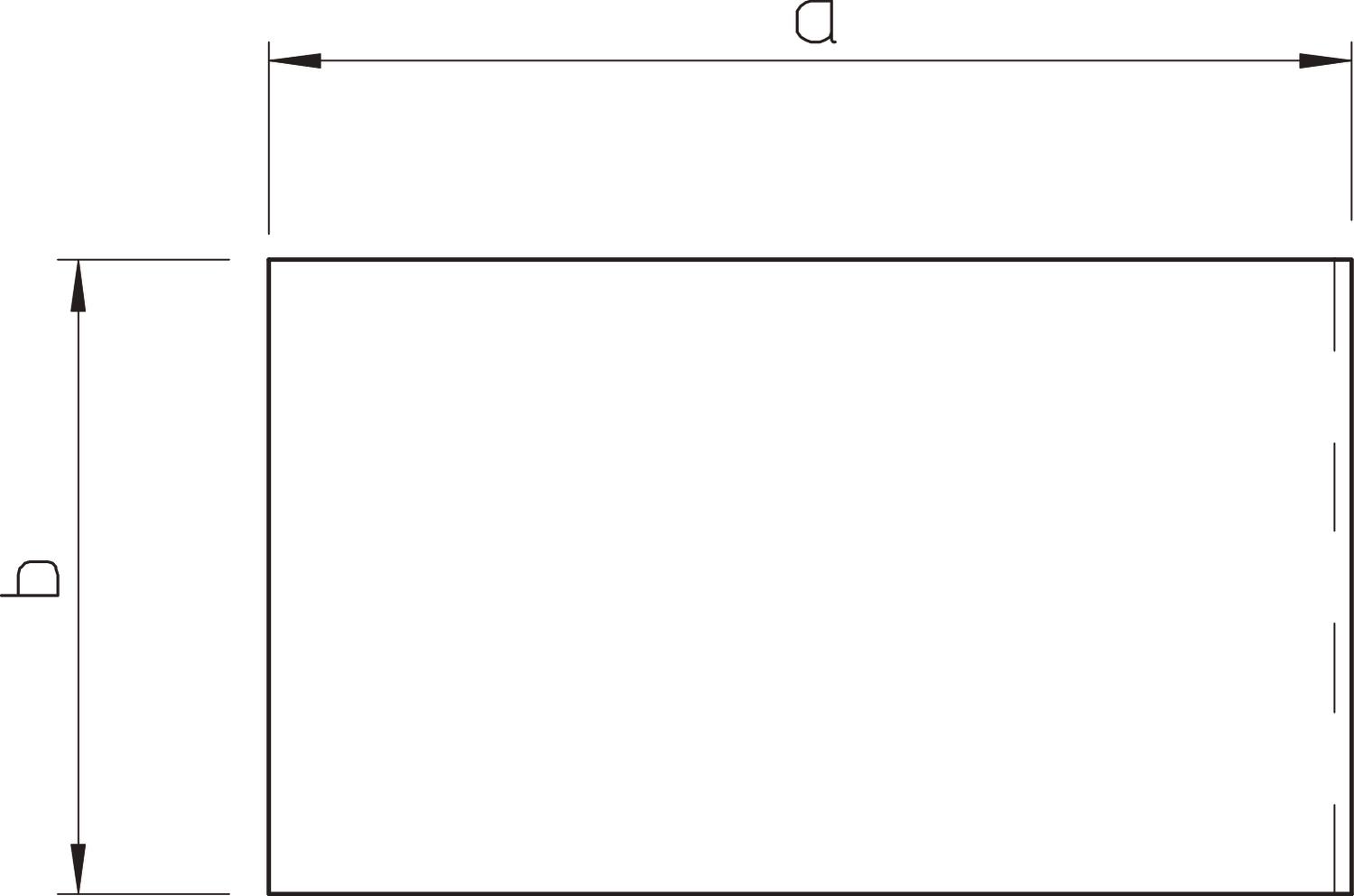

Dimension a	150 mm

Dimension b	130 mm

Dimension H	130 mm

Colour

Product description

Product description

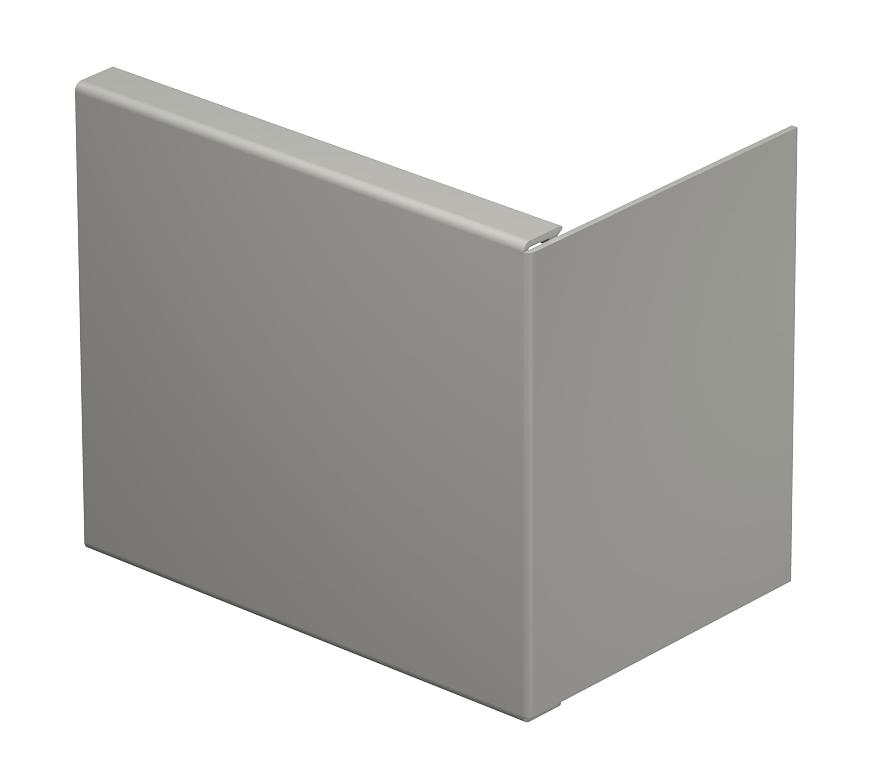

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	100x130mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE100130GR	150 mm	130 mm	130 mm	Stone grey; RAL 7030	6024882	piece	10 piece
WDK HE100130CW	150 mm	130 mm	130 mm	Cream; RAL 9001	6163041	piece	10 piece
WDK HE100130LGR	150 mm	130 mm	130 mm	Light grey; RAL 7035	6183956	piece	10 piece
WDK HE100130RW	150 mm	130 mm	130 mm	Pure white; RAL 9010	6193395	piece	10 piece
