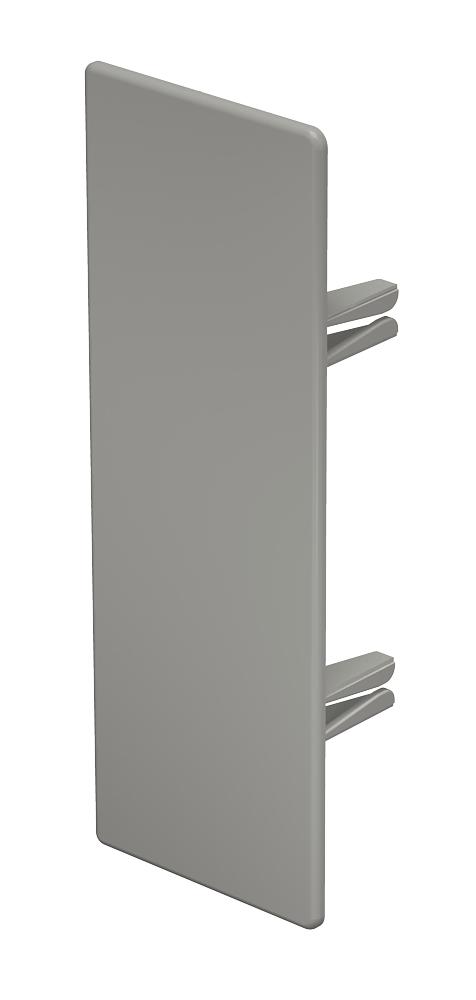

End piece, for trunking type WDK 60170
Item no. 6022545 | EAN 4012196022878
- Product description
-
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 60x170mm Fastening type Lockable Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Version for Left/right Dimensions
Dimension a 170 mm Dimension b 60 mm Dimension H 170 mm Height 60 mm Length 27,5 mm Width 170 mm - All types
-
All types
