End piece for PYROLINE® Con D BSK I120/E90
Item no. 7215274 | EAN 4012195430445
- Product description
-
Product description

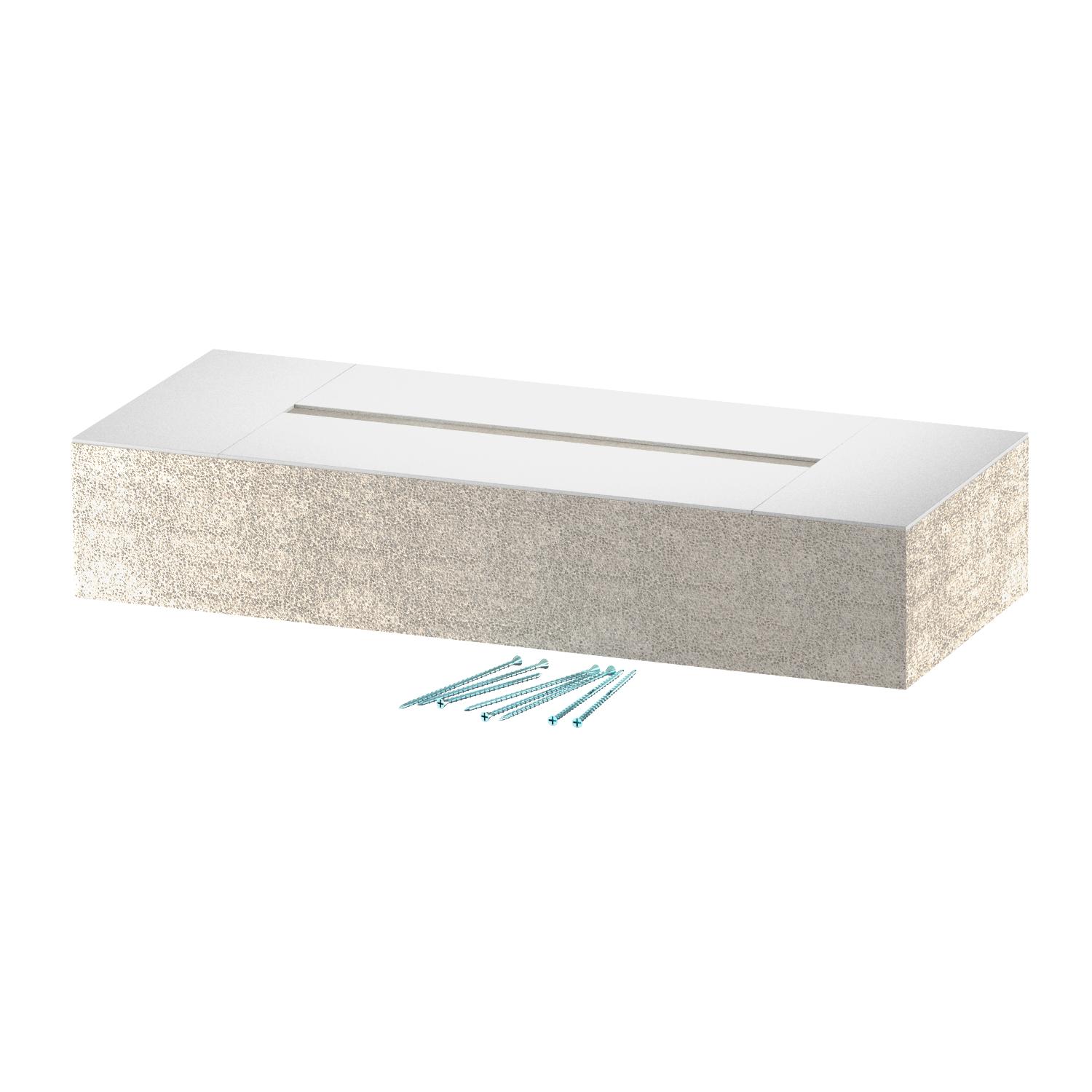

End piece for PYROLINE® Con D BSK I120/EI90 fire protection duct, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and a stick-on sealing strip.
-
- Technical data
-
Technical data
Colour Grey Dimension 50x210 Fire resistance class E − function maintenance 90 Fire resistance class I − installation duct 120 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 3 Version for Left/right Dimensions

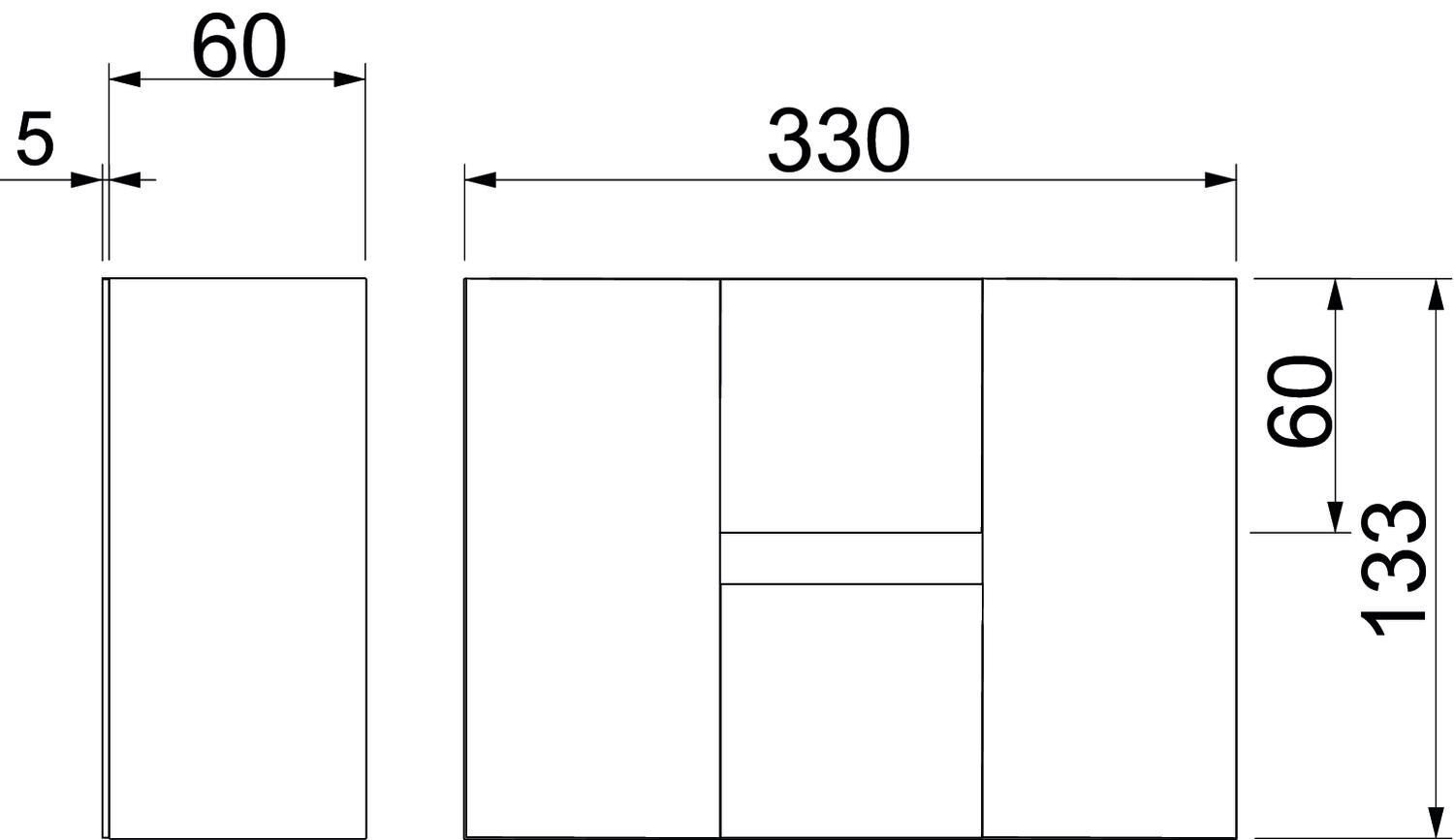

Dimension A 60 mm Dimension B 330 mm Dimension H 133 mm Dimension L 60 mm Height 133 mm Length 60 mm Width 330 mm - All types
- Downloads
-
Data sheet BSKD12-E0521 / 7215274 , 0.26MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfSafety data sheet Safety datasheet, fire protection duct PYROLINE® Con , 2.00MB , pdfNo invitation to tender text is available for this product.
