End piece for PYROLINE® Con D BSK I120/E90
Item no. 7215272 | EAN 4012195430438
- Product description
-
Product description

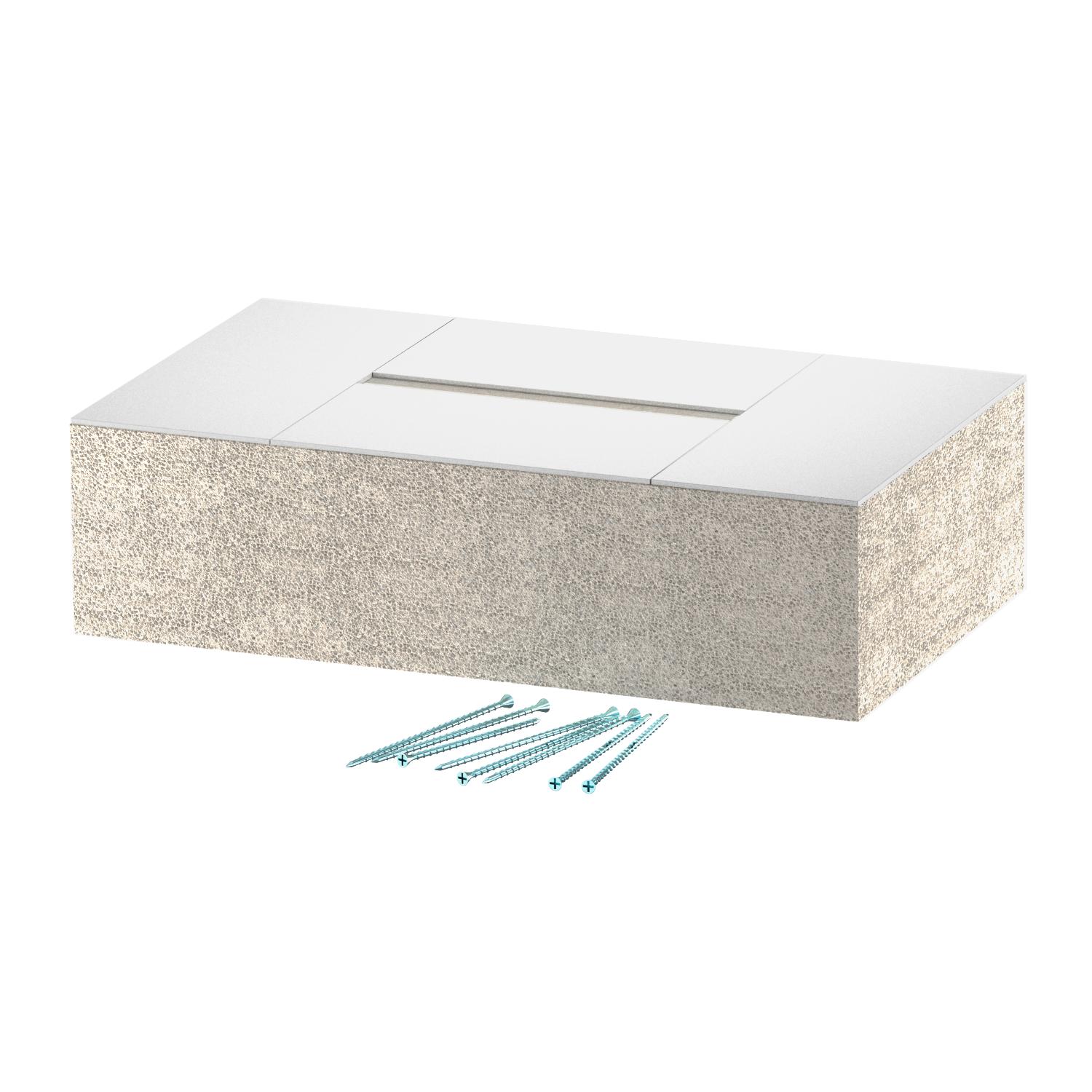

End piece for PYROLINE® Con D BSK I120/EI90 fire protection duct, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and a stick-on sealing strip.
-
- Technical data
-
Technical data

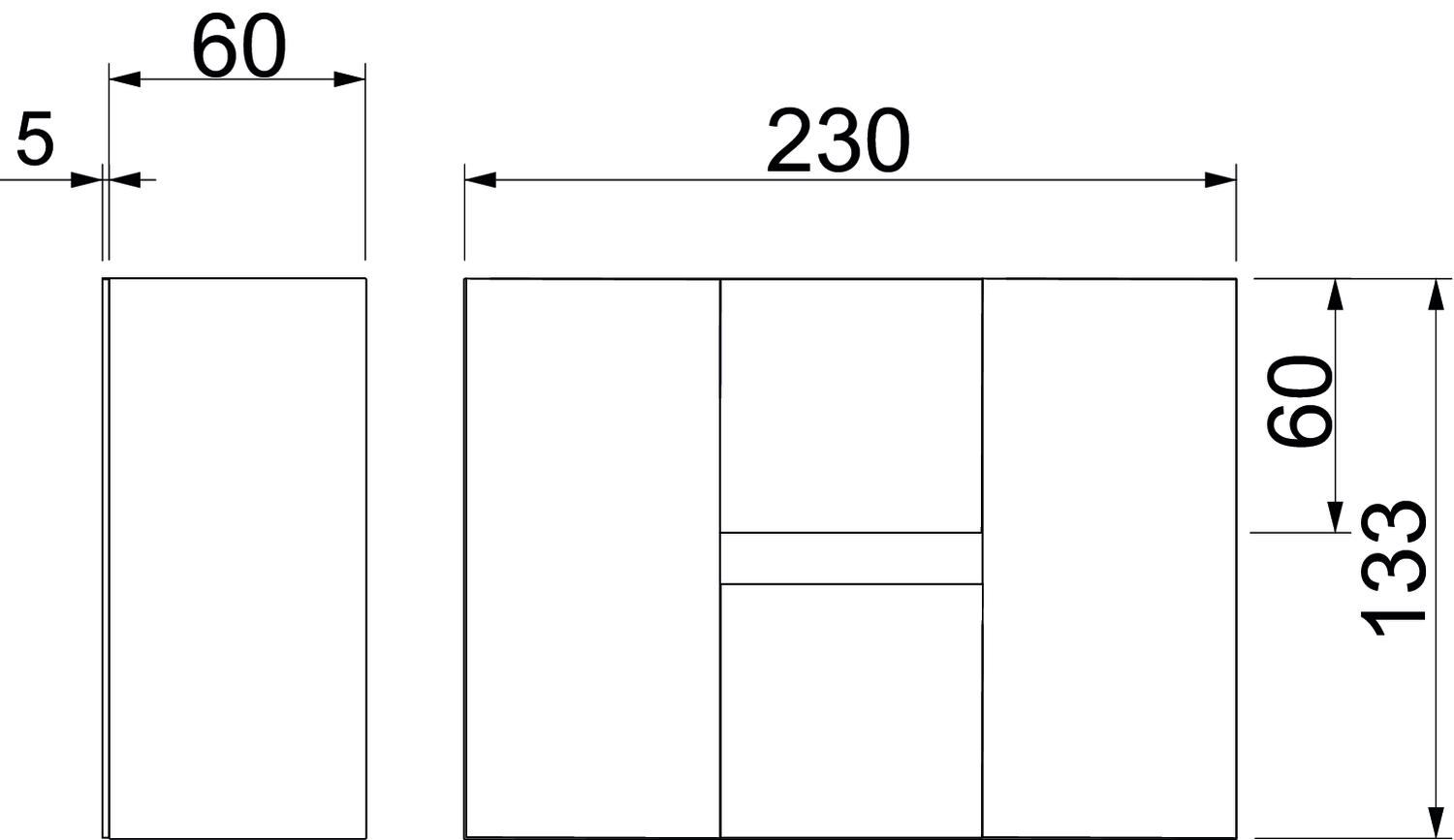

Colour Grey Dimension 50x110 Dimension A 60 mm Dimension B 230 mm Dimension H 133 mm Dimension L 60 mm Fire resistance class E − function maintenance 90 Fire resistance class I − installation duct 120 Height 133 mm Jacketing Without Length 60 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 3 Version for Left/right Width 230 mm - All types
