End piece, for cable trunking type LKM 80080 80 | 80 | | Pure white; RAL 9010
morepic-1 morepic-2 video-1

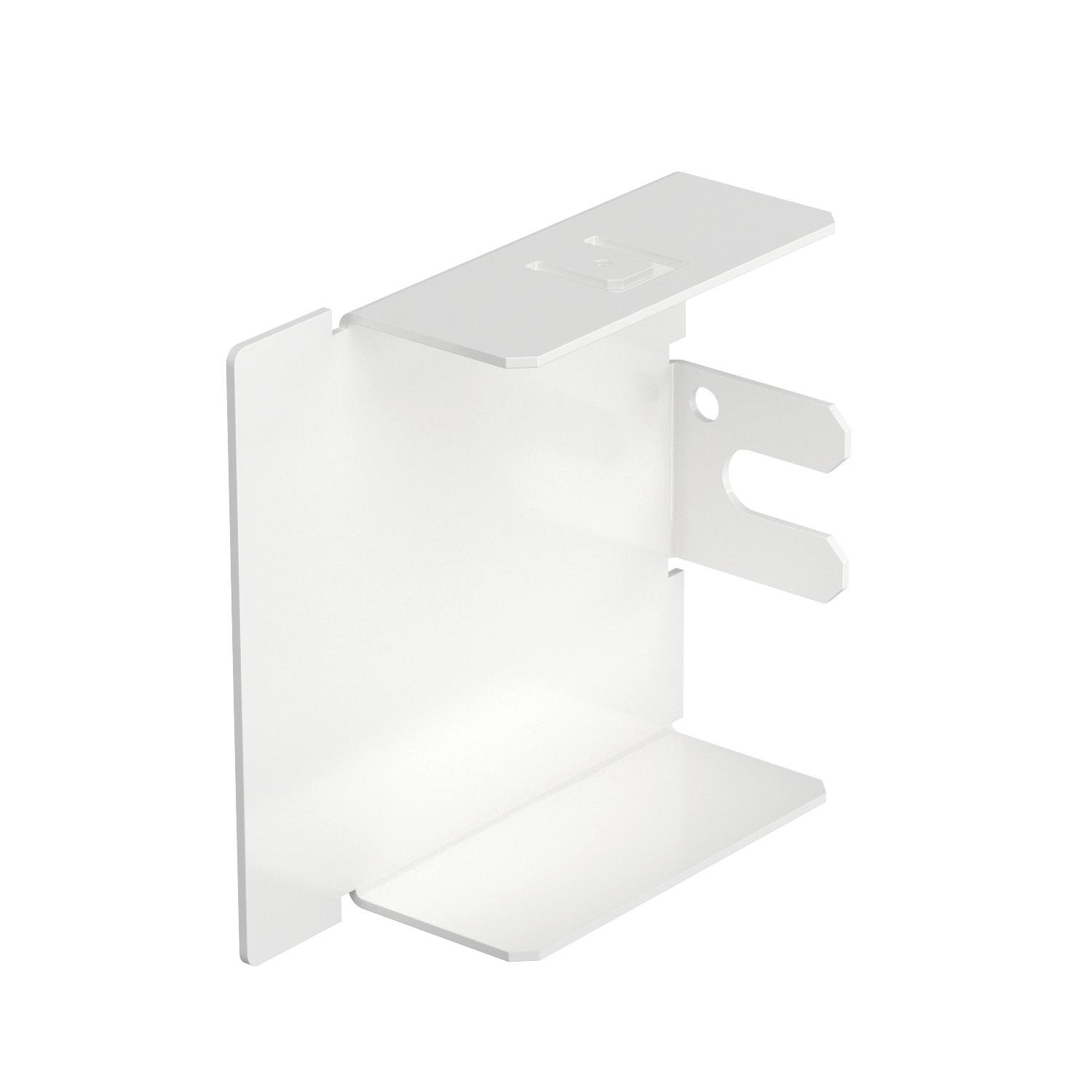

End piece, for cable trunking type LKM 80080

Item no. 6248454 | EAN 4012195699156

80 mm
80 mm
Product description
Product description
End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

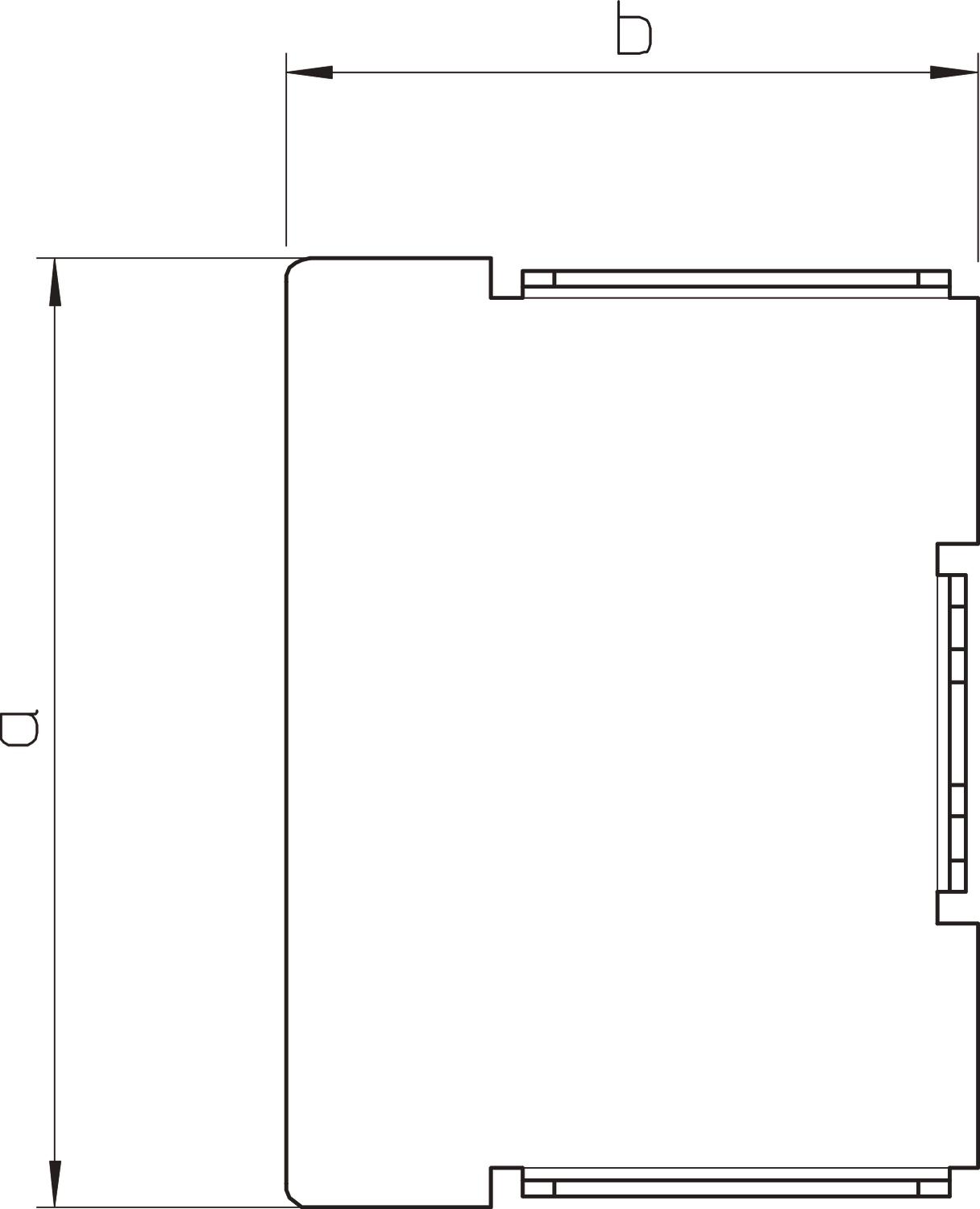

Dimension 80x80mm
Dimension a 80 mm
Dimension b 80 mm
Fastening type Lockable
Halogen-free yes
Height 80 mm
Length 21 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized / plastic coated
Version for Left/right
Width 80 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
LKM E80080FS 80 mm 80 mm - 6248344
1 piece
LKM E80080RW 80 mm 80 mm Pure white; RAL 9010 6248454
1 piece
