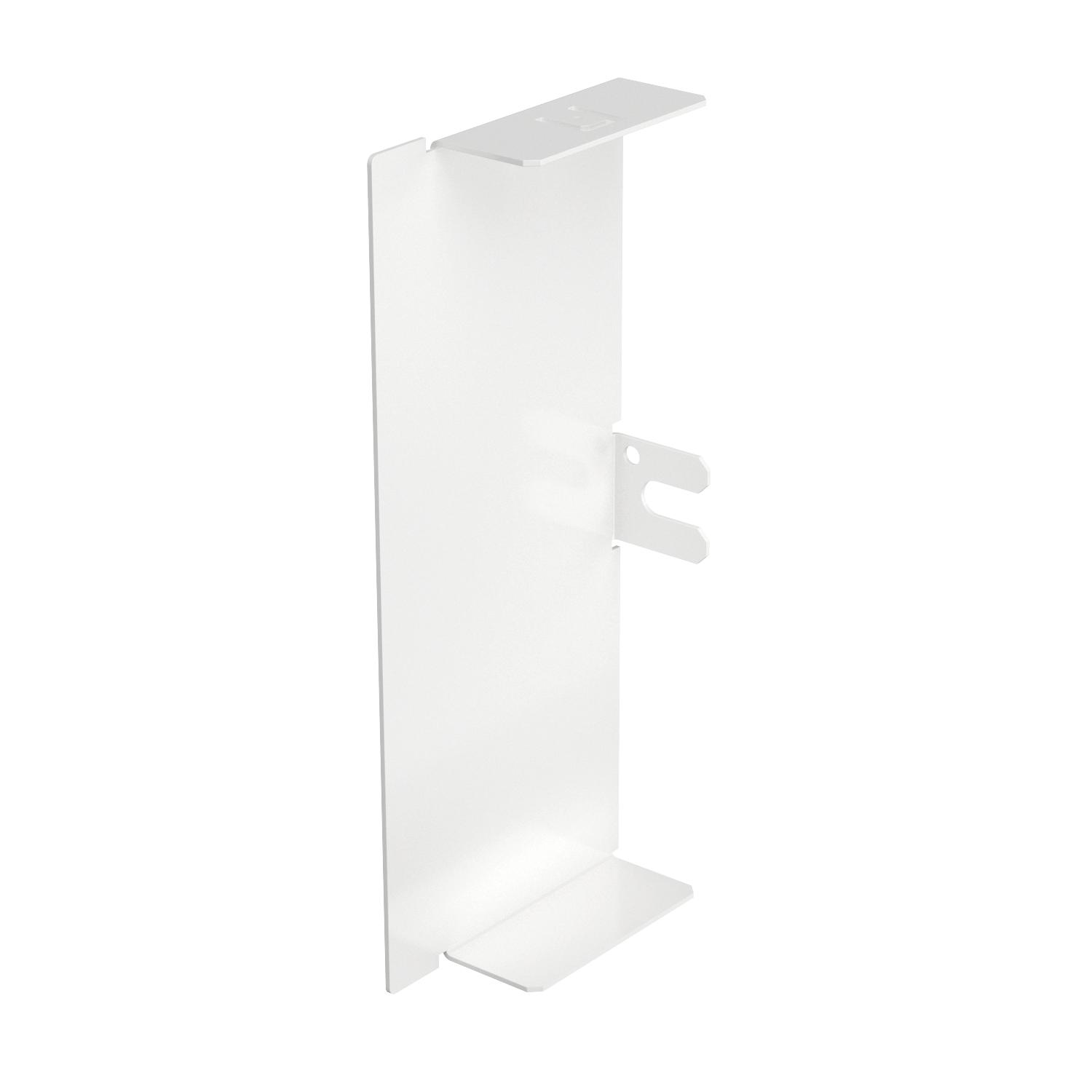

End piece, for cable trunking type LKM 60150
Item no. 6249825 | EAN 4012196575831
- Product description
-
Product description
End piece for closing the LKM ducts.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 60x150mm Dimension a 150 mm Dimension b 64 mm Fastening type Lockable Halogen-free yes Height 64 mm Length 21 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Version for Left/right Width 150 mm - All types
- Downloads
-
Data sheet LKM E60150RW / 6249825 , 0.22MB , pdfDeclaration of conformity LKM E60150RW / 6249825 , 0.13MB , pdfUK Declaration of Conformity LKM E60150RW / 6249825 , 0.14MB , pdfREACH Declaration of conformity LKM E60150RW / 6249825 , 0.27MB , pdfRoHS Declaration of conformity LKM E60150RW / 6249825 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
