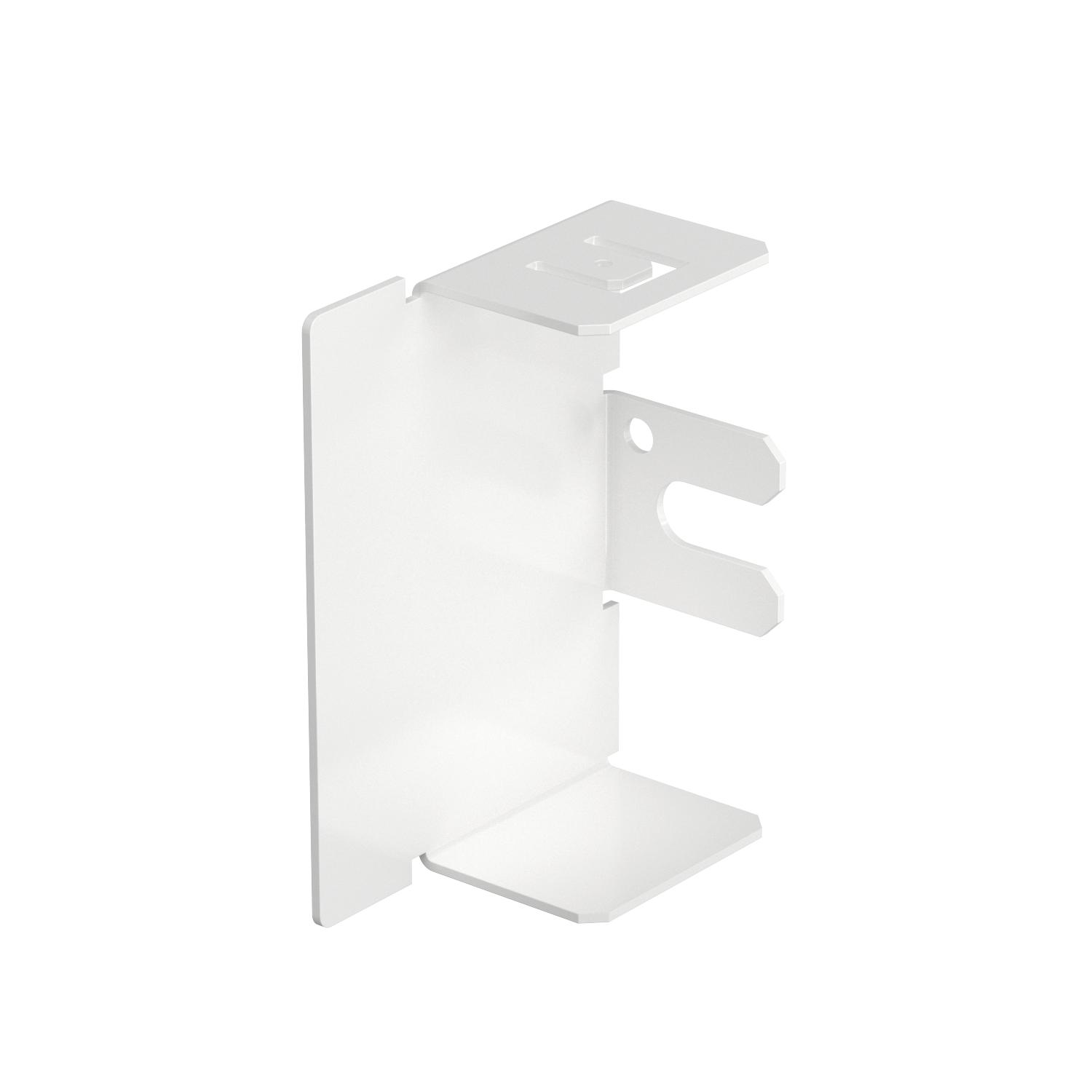

End piece, for cable trunking type LKM 40060
Item no. 6249426 | EAN 4012196575350
- Product description
-
Product description
End piece for closing the LKM ducts.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 40x60mm Fastening type Lockable Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Version for Left/right Dimensions

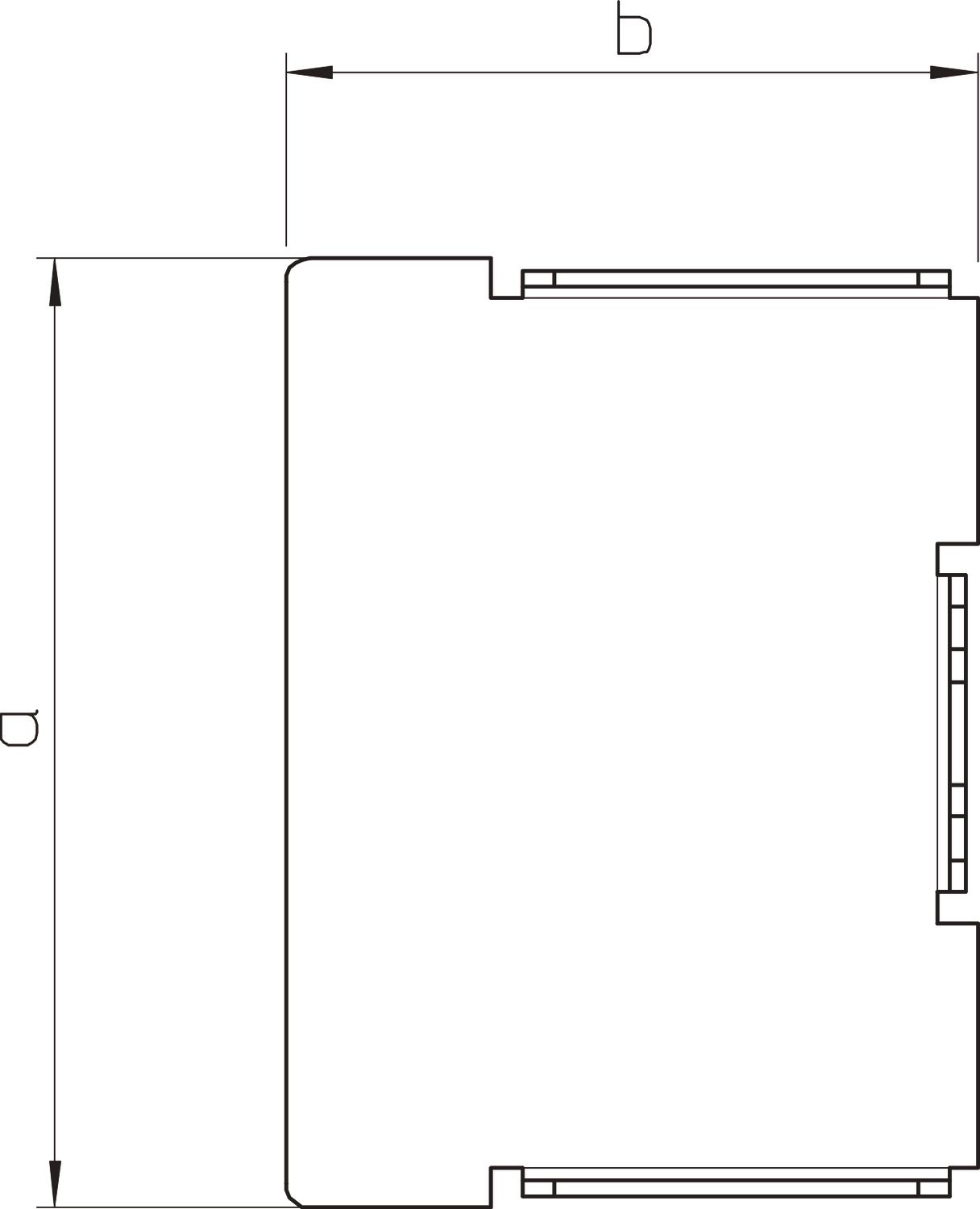

Dimension a 60 mm Dimension b 44 mm Height 44 mm Length 21 mm Width 60 mm - All types
- Downloads
-
Data sheet LKM E40060RW / 6249426 , 0.21MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity LKM E40060RW / 6249426 , 0.13MB , pdfUK Declaration of Conformity LKM E40060RW / 6249426 , 0.14MB , pdfREACH Declaration of conformity LKM E40060RW / 6249426 , 0.27MB , pdfRoHS Declaration of conformity LKM E40060RW / 6249426 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdf
