End piece, for cable duct type LKM 60100 100 | 64 | | Pure white; RAL 9010

morepic-1

morepic-2

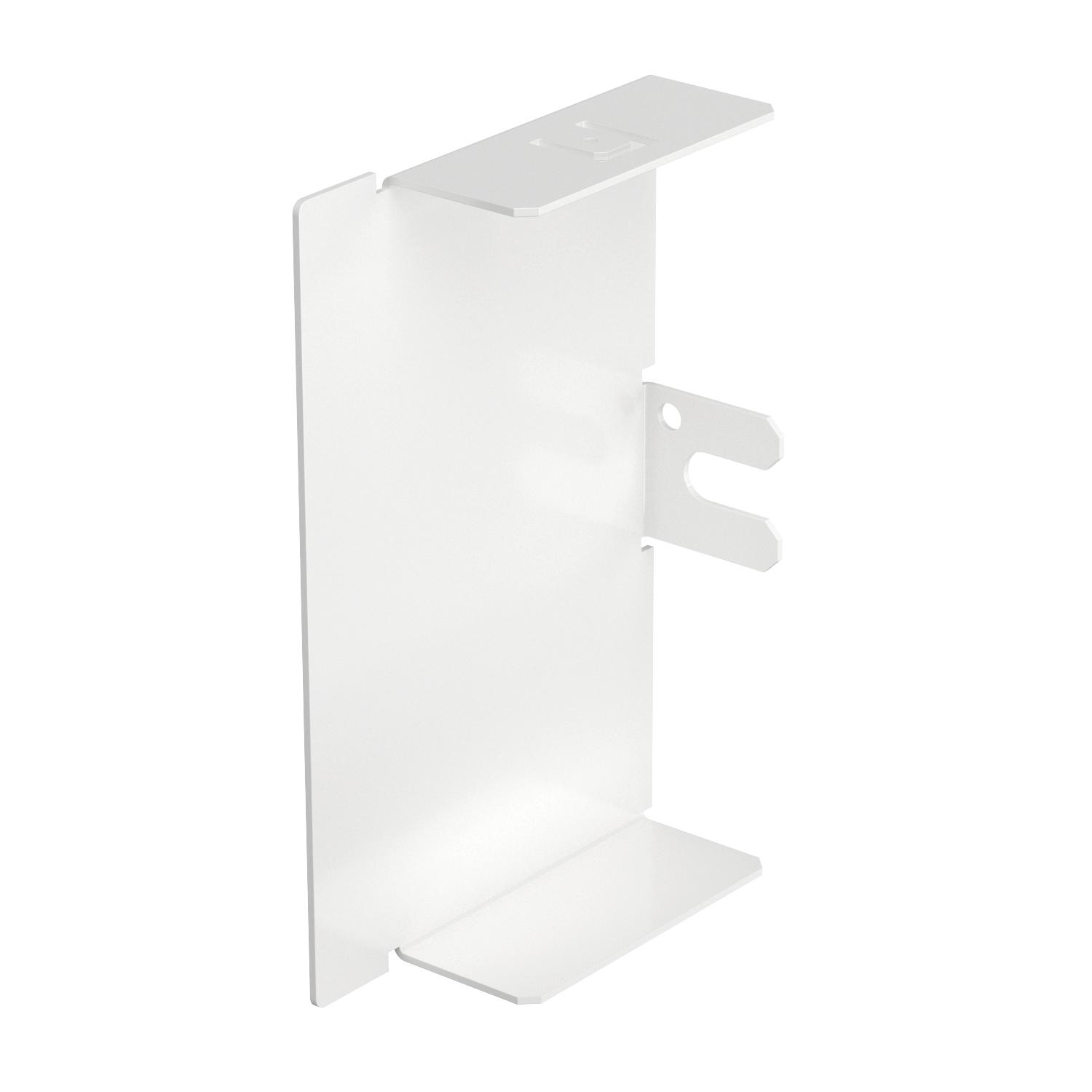

End piece, for cable duct type LKM 60100

Item no. 6249817 | EAN 4012196575770

Item no. / Types

Dimension a	100 mm

Dimension b	64 mm

Colour

Product description

Product description

End piece for closing the LKM ducts.

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	60x100mm
Fastening type	Lockable
Halogen-free	yes
Maintain electrical functions	yes
Material	Steel
Permitted temperature range, max.	90 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized / plastic coated
Version for	Left/right

Dimensions

Dimension a	100 mm
Dimension b	64 mm
Height	64 mm

Length	21 mm
Width	100 mm

All types

All types

Types	Dimension a	Dimension b	Colour	Item no.	Quantity	SSU
LKM E60100FS	100 mm	64 mm	-	6248306	piece	10 piece
LKM E60100RW	100 mm	64 mm	Pure white; RAL 9010	6249817	piece	10 piece
