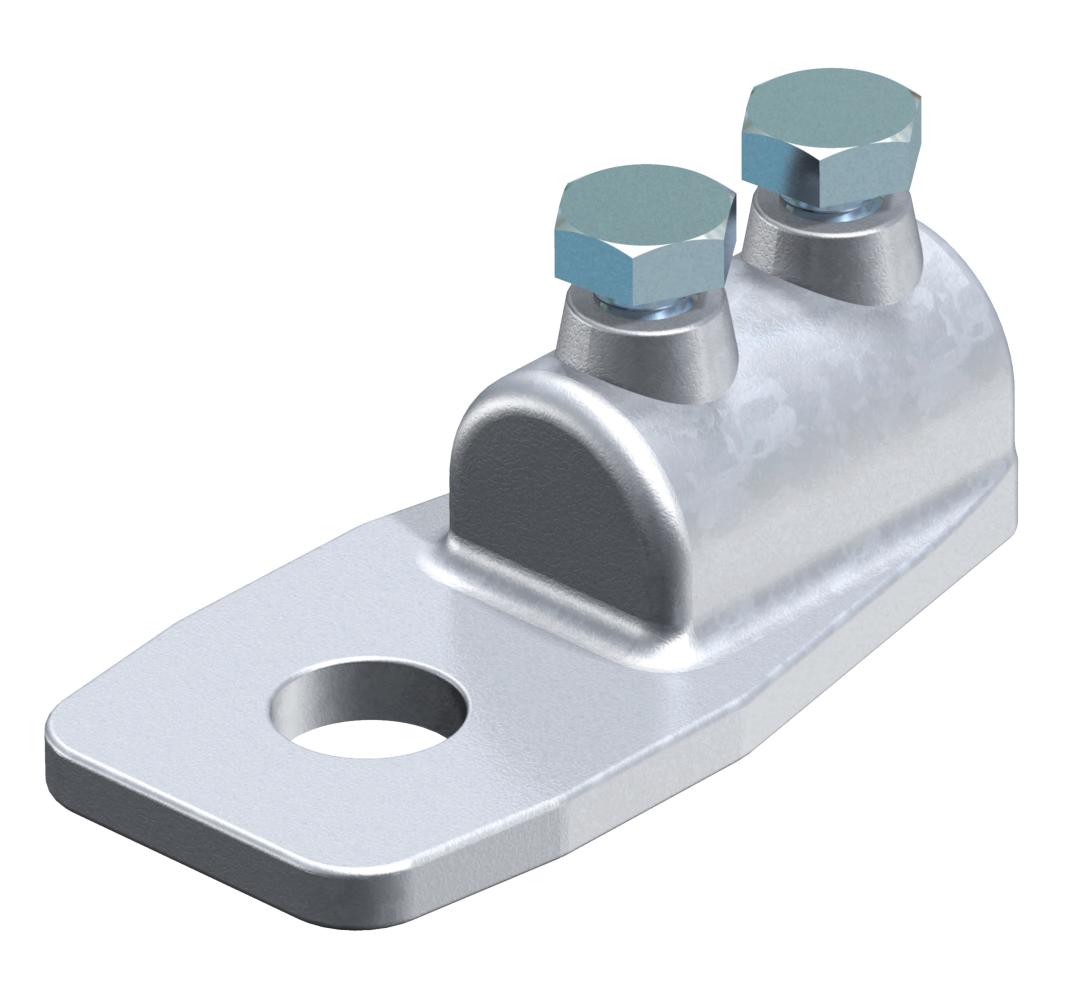

End piece, copper-plated
Item no. 5320054 | EAN 4012195421337
- Product description
-
Product description
• With Ø 11 mm fastening hole
• 2 hexagonal bolts M6 x 12, bolts made of hot galvanised steel or of VA
• Clamping block made of die-cast zinc or copper-plated die-cast zinc
- Technical data
-
Technical data

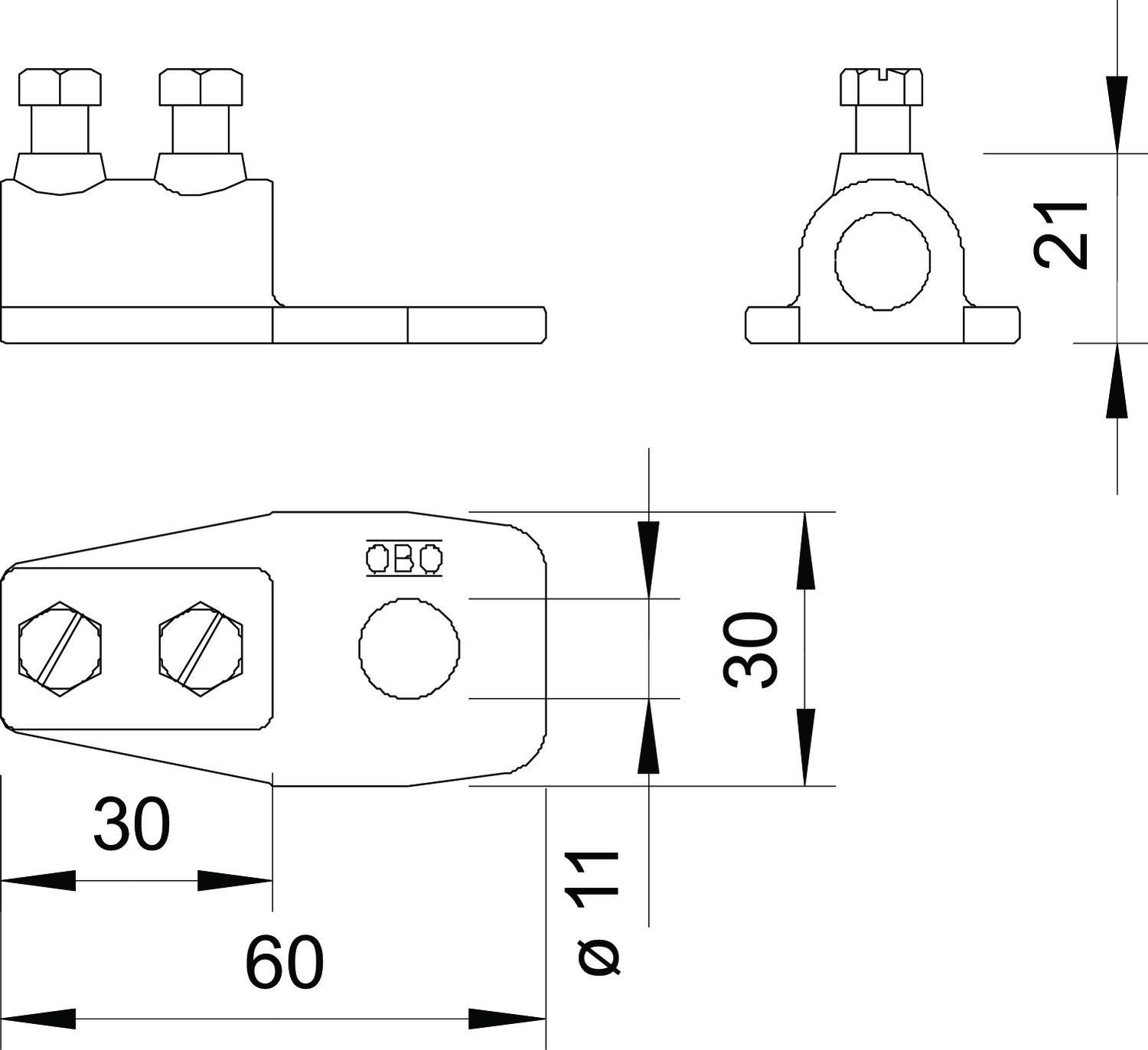

Dimension 60x30x25 Fastening hole 11 mm Fit Rd 8-10 mm Intermediate plate no Material Die-cast zinc Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector End piece Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 280 VK / 5320054 , 0.16MB , pdfDeclaration of conformity 280 VK / 5320054 , 0.06MB , pdf
