Empty housing X 25 with hat profile rail

Item no. 2005572 | EAN 4012196582952

271x187x110 mm
IP67
Product description

Product description

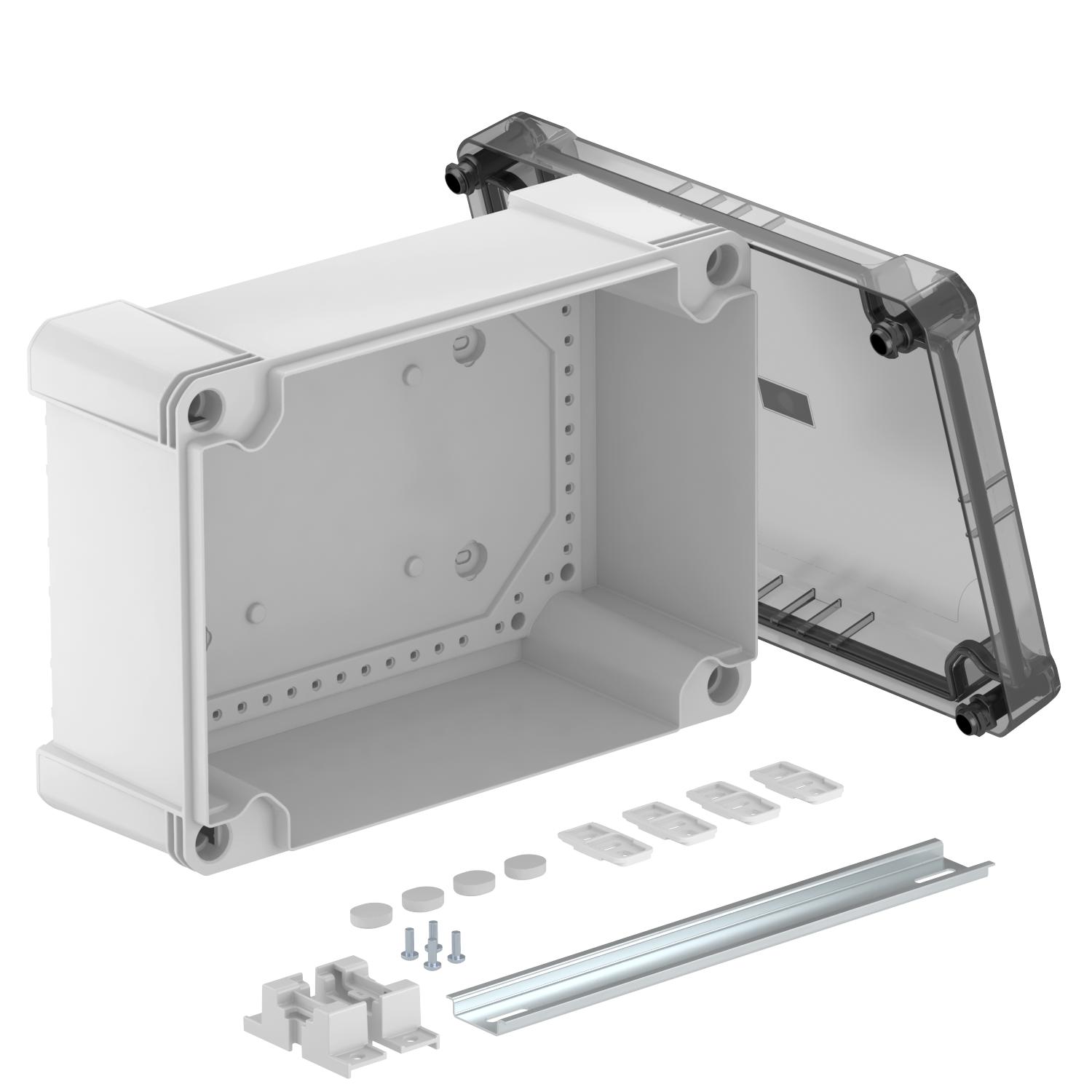

Junction box with hat profile rail for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK08. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail, type 2069, and fastening set.

Junction box according to DIN EN 60670. Impact resistance IK08 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 67
  • Nominal voltage 750 V
  • IK Code 09
Technical data

Technical data

Colour Grey / transparent
Cover fastening Screwed
Dimension 286x202x125
Extension option no
Material Polycarbonate
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP67
Protection rating IK code IK09
Shape Rectangular
Suitable for outdoor use yes
Transparent lid yes
Weatherproof yes
with lid yes

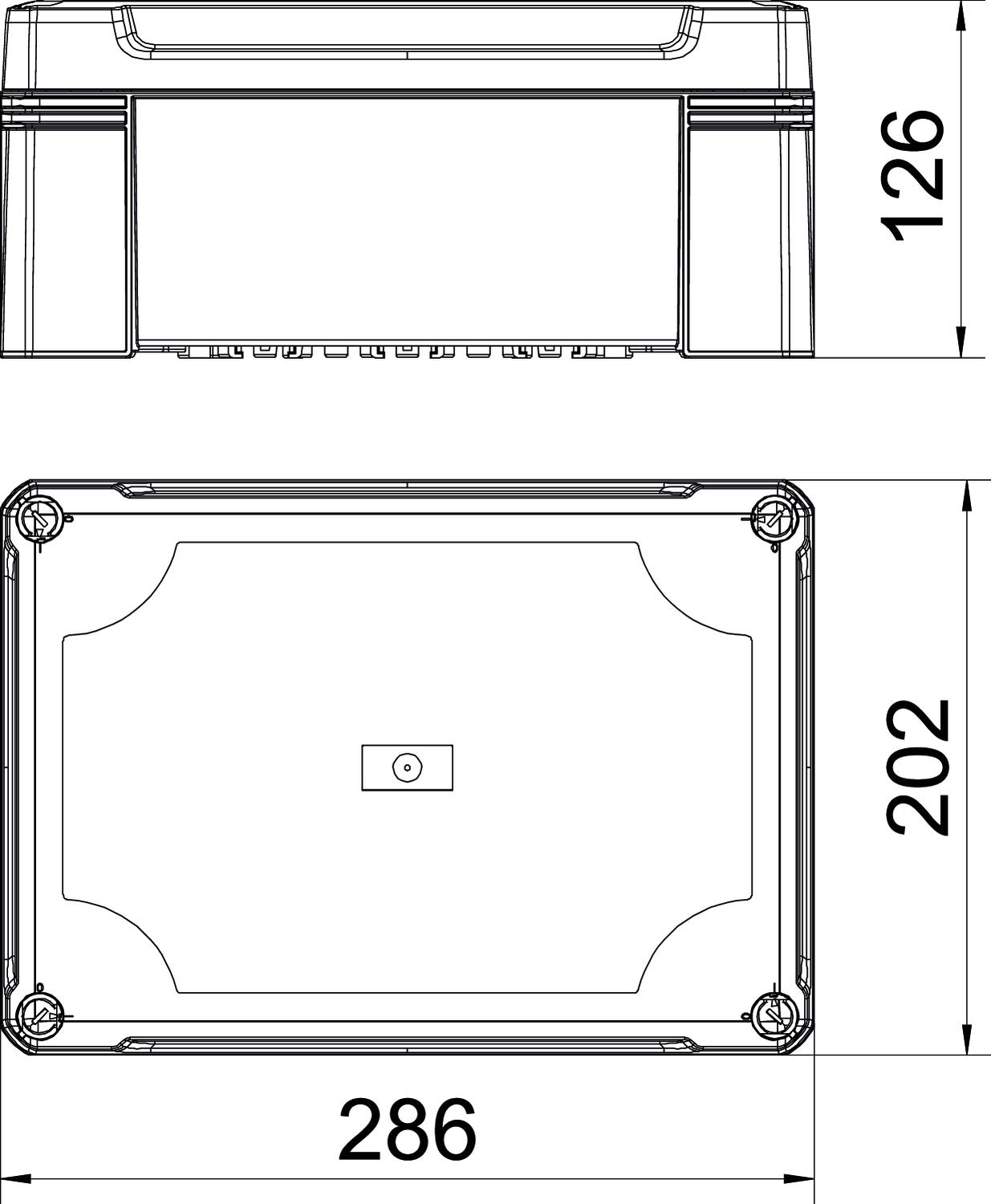

Dimensions

Clear internal dimensions 271x187x110 mm
Height 126 mm
Length 286 mm
Width 202 mm
All types

All types

Types Clear internal dimensions Protection rating Colour Item no. Quantity SSU
X25C R LGR 271x187x110 mm IP67 Light grey; RAL 7035 2005502
1 piece
X25C R LGR-TR 271x187x110 mm IP67 Grey / transparent 2005572
1 piece
