Empty housing X 16 with hat profile rail

Item no. 2005568 | EAN 4012196582945

Item no. / Types

Clear internal dimensions	227x177x110 mm

Protection rating	IP67

Colour

Product description

Product description

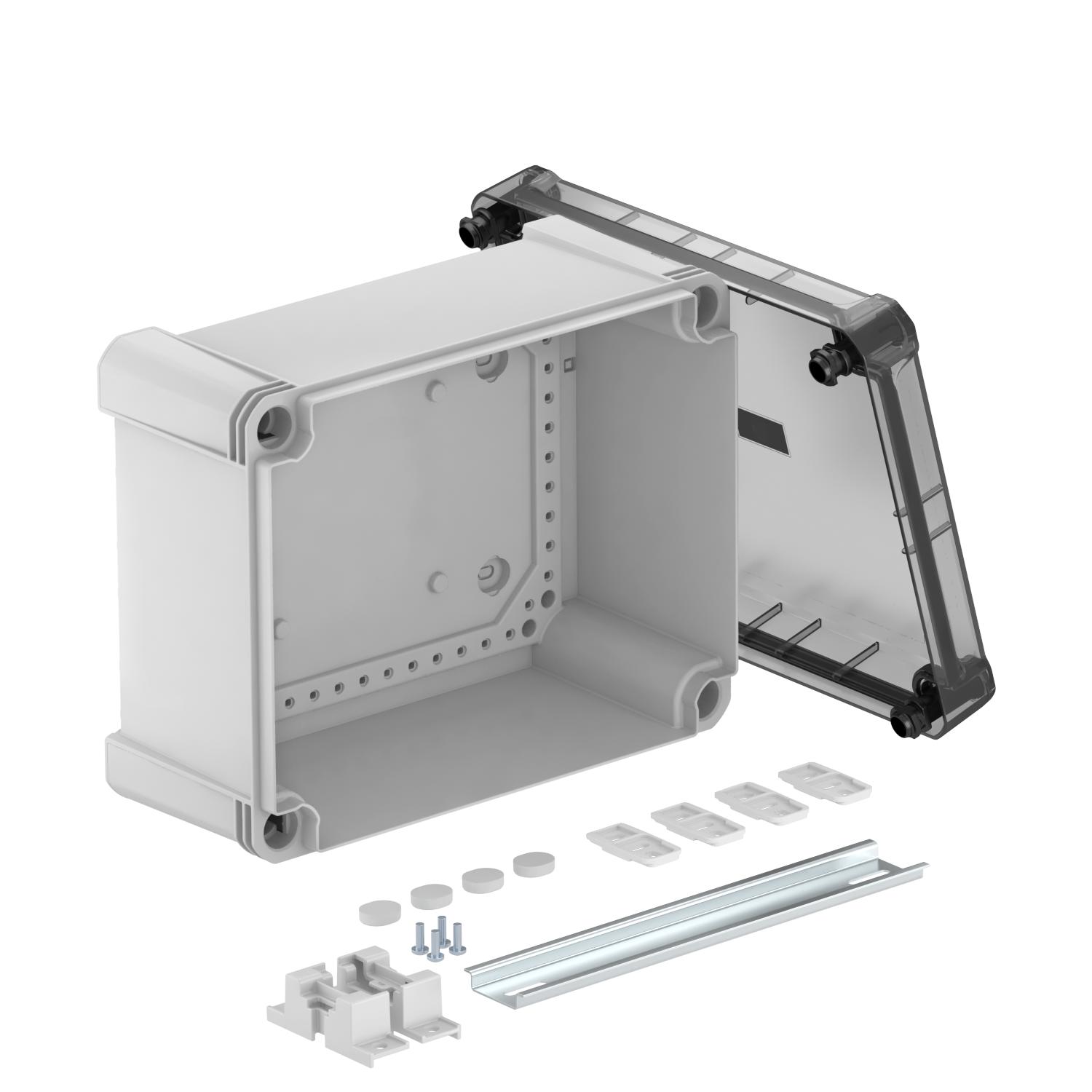

Junction box with hat profile rail for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail 2069 and fastening set.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.

Technical data

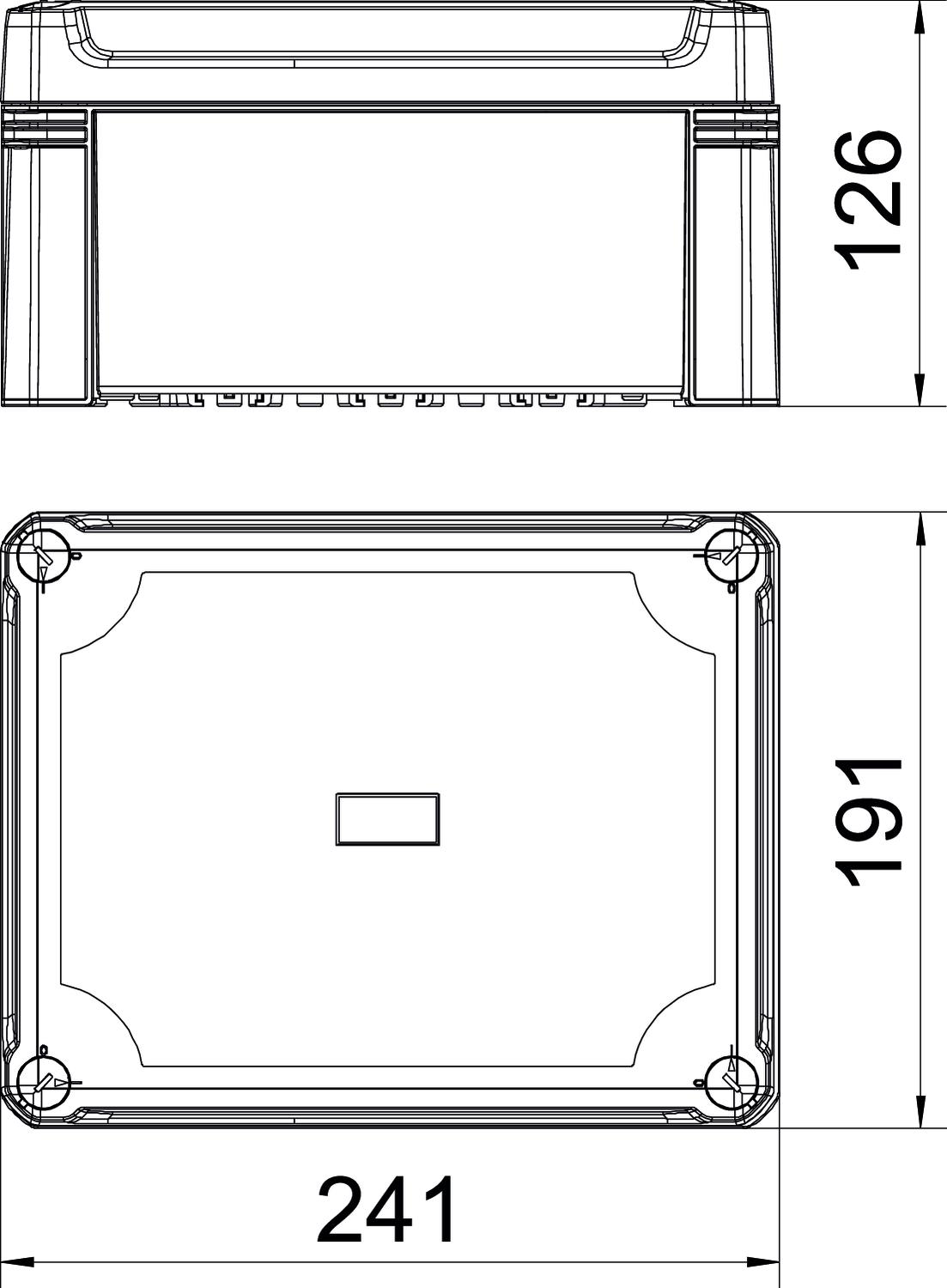

Dimensions

Clear internal dimensions	227x177x110 mm
Colour	Grey / transparent
Cover fastening	Screwed
Dimension	240x191x125
Extension option	no
Height	126 mm
Length	241 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Rectangular
Suitable for outdoor use	yes
Transparent lid	yes
Weatherproof	yes
Width	191 mm
with lid	yes
