Product description

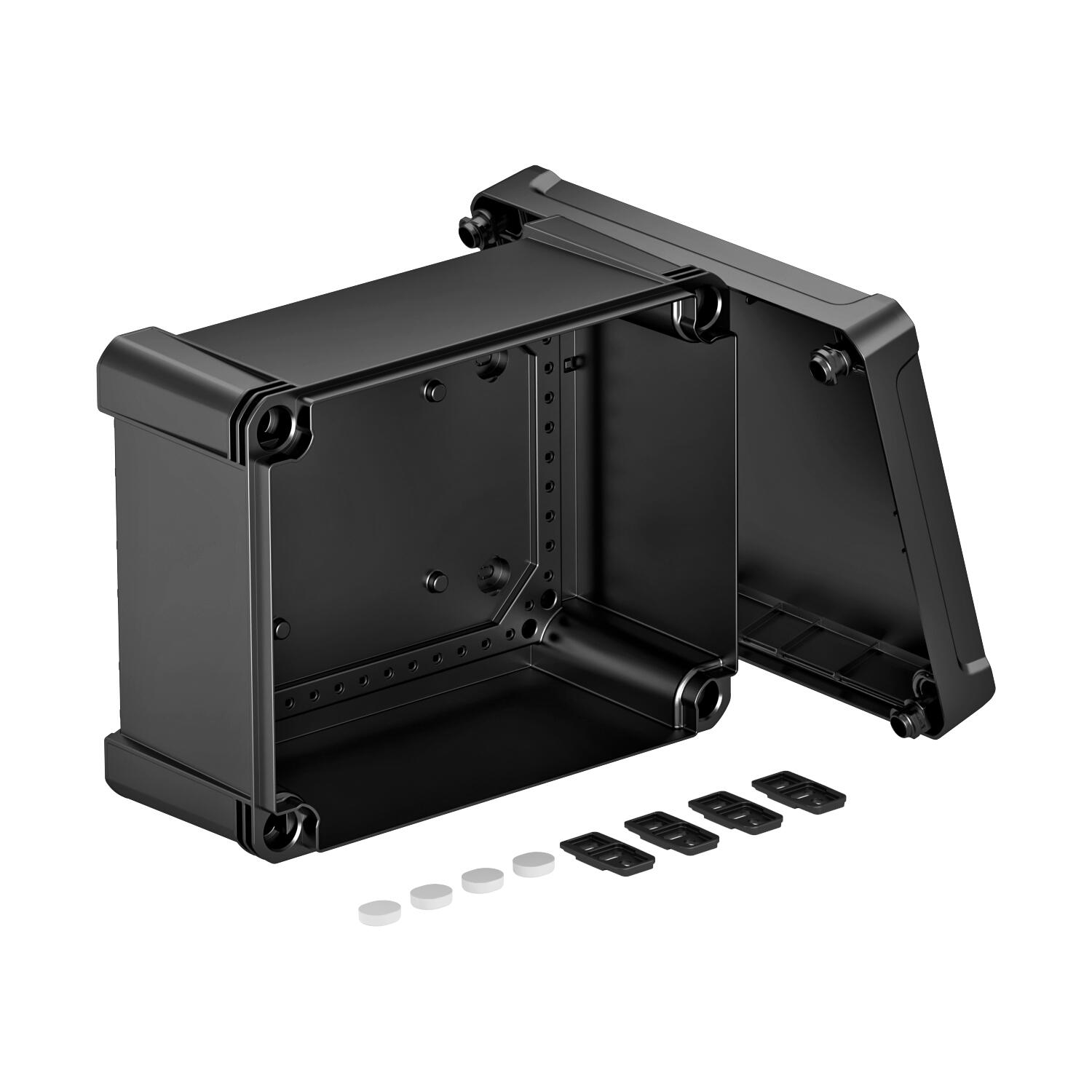

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.
- Technical data
-
Technical data
Colour Graphite black; RAL 9011 Cover fastening Screwed Dimension 240x191x125 Extension option no Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Rectangular Suitable for outdoor use yes Weatherproof yes with lid yes Dimensions

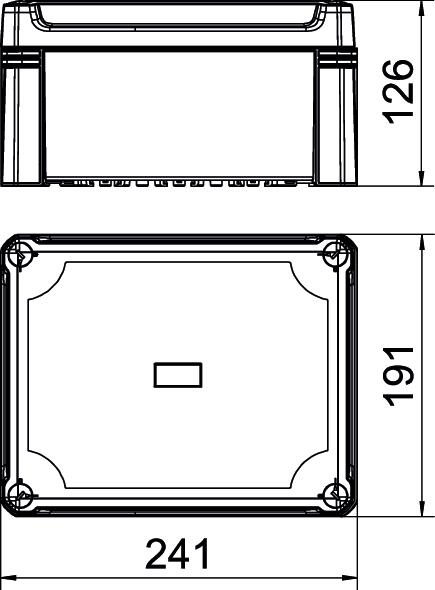

Clear internal dimensions 227x177x110 mm Height 126 mm Length 241 mm Width 191 mm - All types
- Downloads
-
Declaration of conformity X16C SW / 2005610 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 0.08MB , pdfInstructions for use Drilling template X16, SDB09 , 0.09MB , pdf
