Empty housing X 10 177x137x110 | | IP67 | | Graphite black; RAL 9011

Empty housing X 10

Item no. 2005606 | EAN 4012196580729

Item no. / Types

Clear internal dimensions	177x137x110 mm

Protection rating	IP67

Colour

Product description

Product description

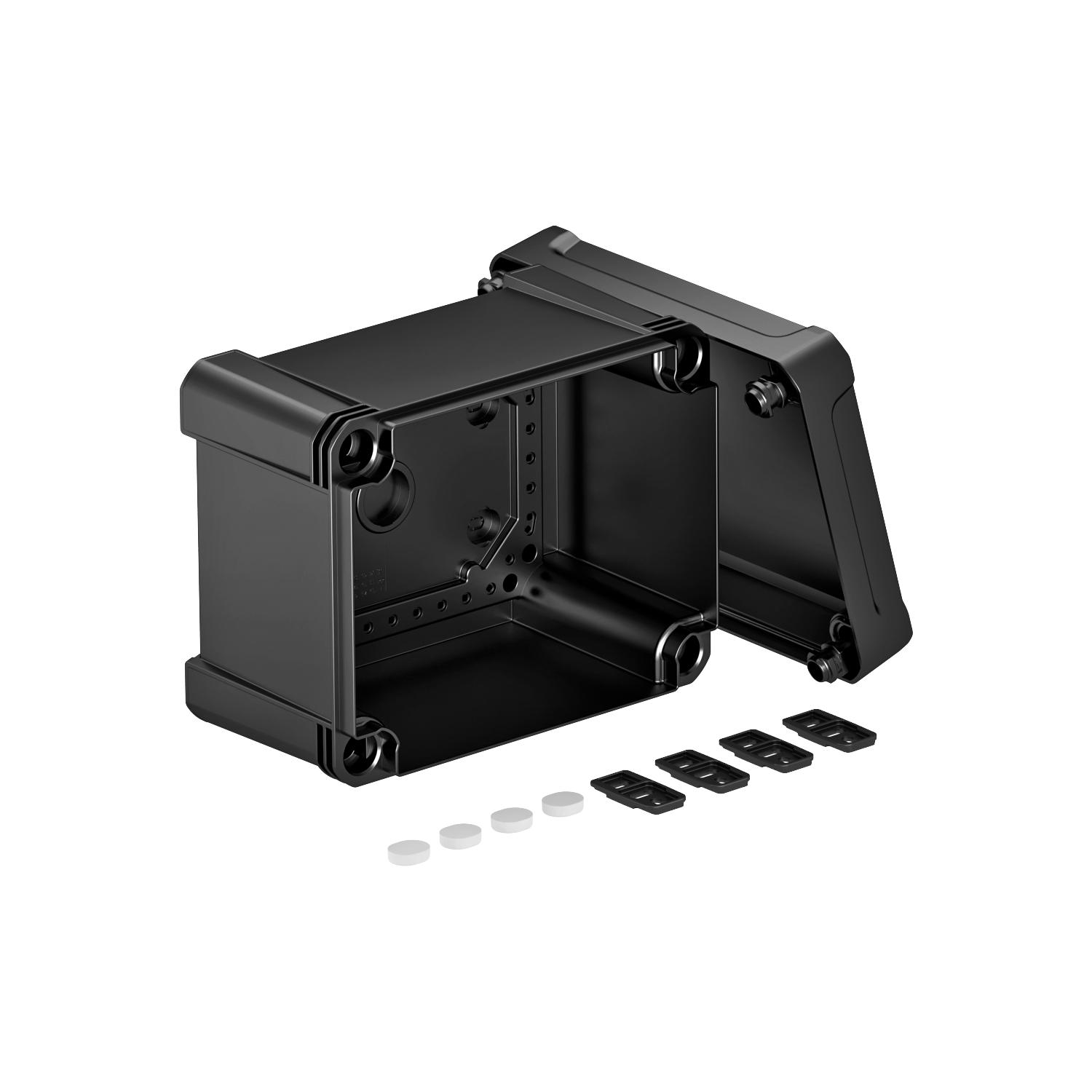

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.

Technical data

Dimensions

Clear internal dimensions	177x137x110 mm
Colour	Graphite black; RAL 9011
Cover fastening	Screwed
Dimension	190x150x125
Extension option	no

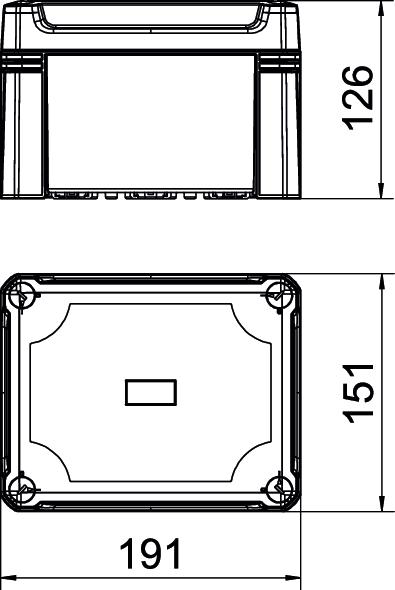

Height	126 mm
Length	191 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Square
Suitable for outdoor use	yes
Weatherproof	yes
Width	151 mm
with lid	yes

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
X10C LGR	177x137x110 mm	IP67	Light grey; RAL 7035	2005466	piece	1 piece
X10C LGR-TR	177x137x110 mm	IP67	Grey / transparent	2005536	piece	1 piece
X10C SW	177x137x110 mm	IP67	Graphite black; RAL 9011	2005606	piece	1 piece
