Empty housing X 06 with hat profile rail
Item no. 2005560 | EAN 4012196582891
- Product description
-
Product description

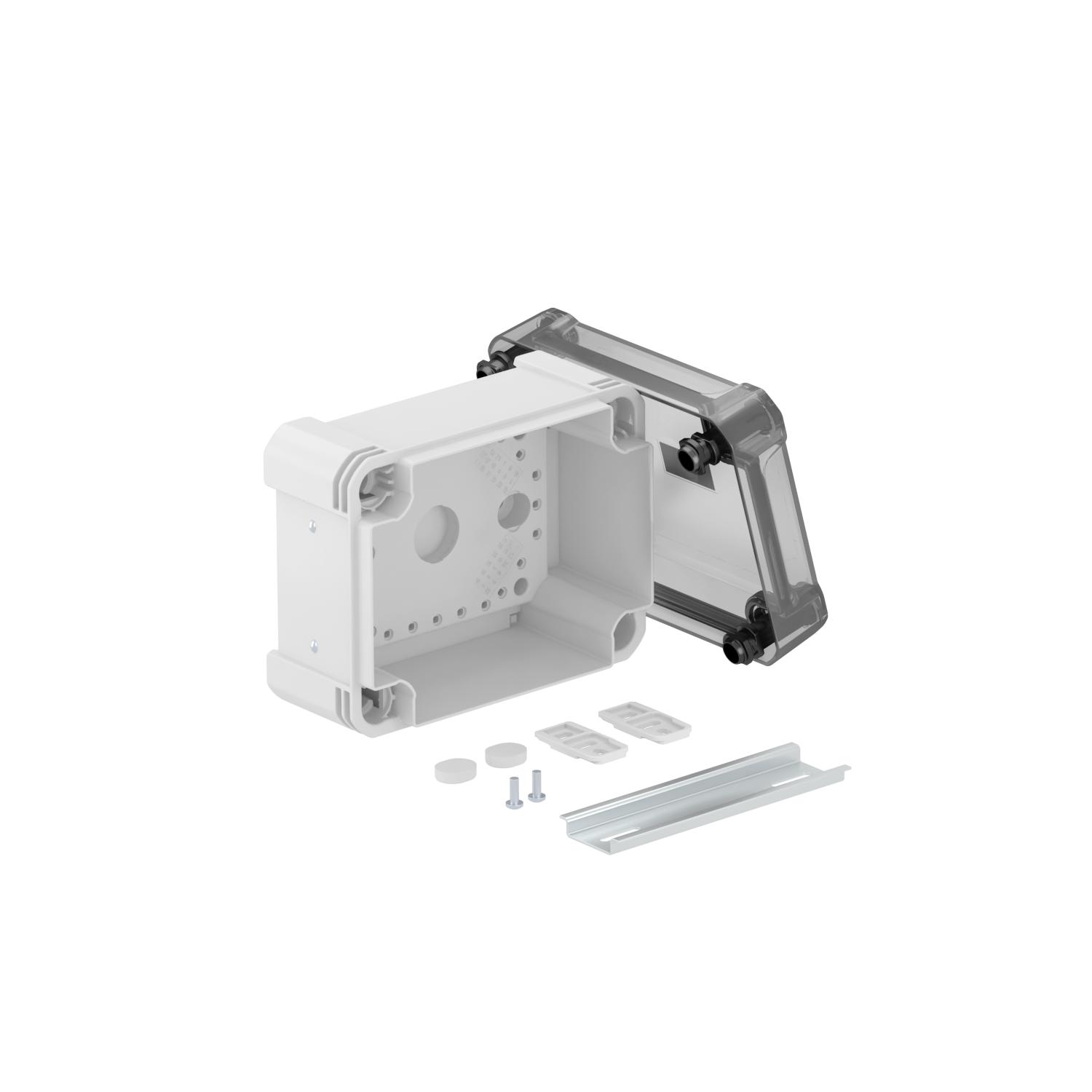

Junction box with hat profile rail for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
With hat profile rail, type 2069, and fastening set.
Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.
-
- Technical data
-
Technical data
Colour Grey / transparent Cover fastening Screwed Dimension 150x116x86 Extension option no Material Polycarbonate Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP67 Protection rating IK code IK09 Shape Rectangular Suitable for outdoor use yes Transparent lid yes Weatherproof yes with lid yes Dimensions

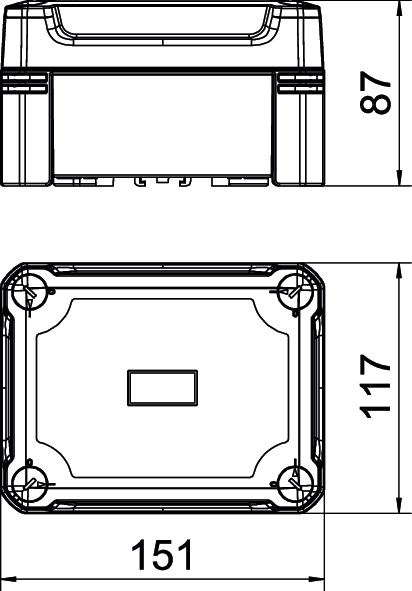

Clear internal dimensions 137x105x68 mm Height 86 mm Length 151 mm Width 117 mm - All types
- Downloads
-
Data sheet X06C R LGR-TR / 2005560 , 0.39MB , pdfDeclaration of conformity X06C R LGR-TR / 2005560 , 0.13MB , pdfMounting instructions Mounting instructions, X series , 0.08MB , pdfInstructions for use Drilling template X06 , 0.03MB , pdf
