Empty housing X 04 102x102x60 | | IP67 | | Light grey; RAL 7035

Empty housing X 04

Item no. 2005458 | EAN 4012196577613

Item no. / Types

Clear internal dimensions	102x102x60 mm

Protection rating	IP67

Colour

Product description

Product description

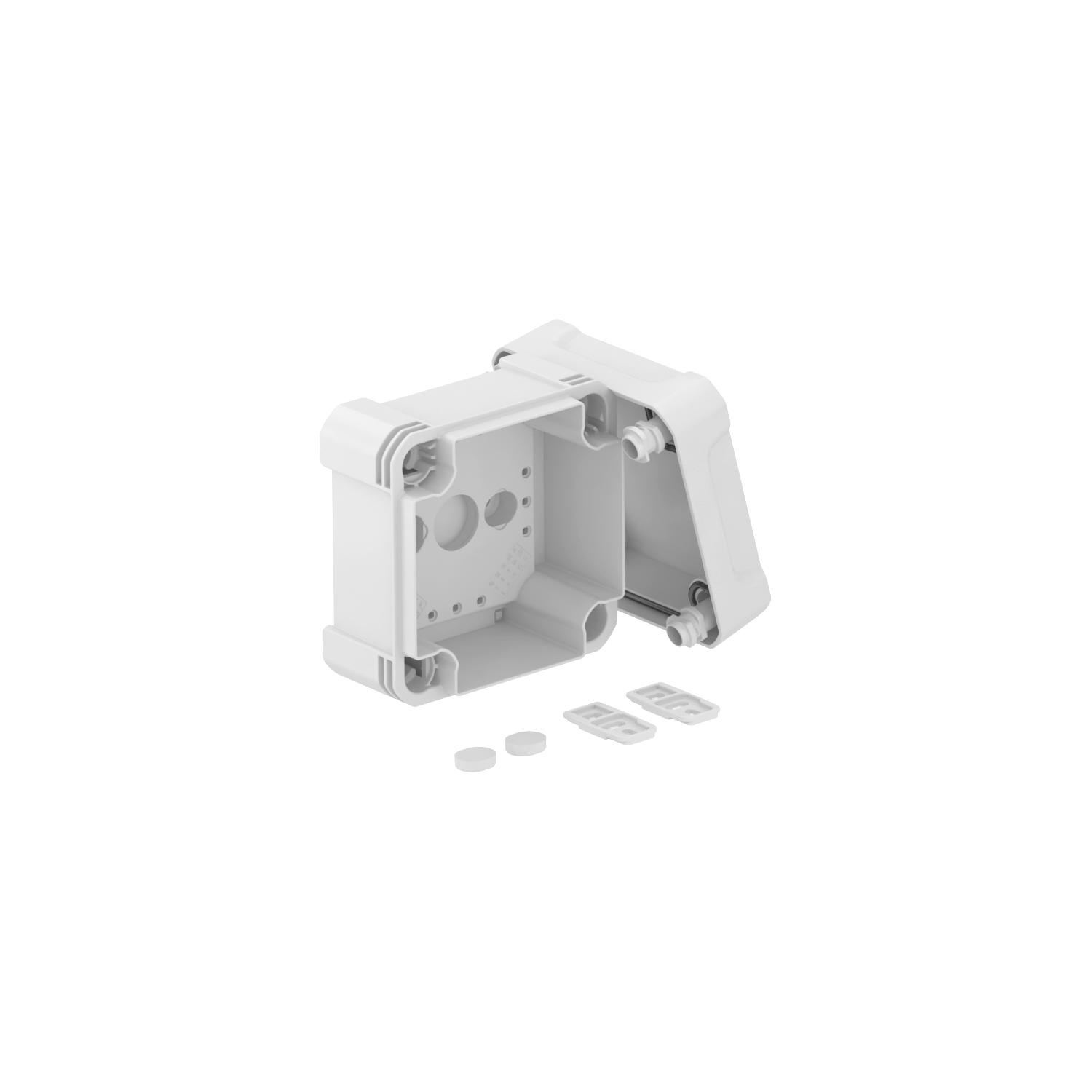

Junction box for the connection of cables in indoor and outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.

Technical data

Dimensions

Clear internal dimensions	102x102x60 mm
Colour	Light grey; RAL 7035
Cover fastening	Screwed

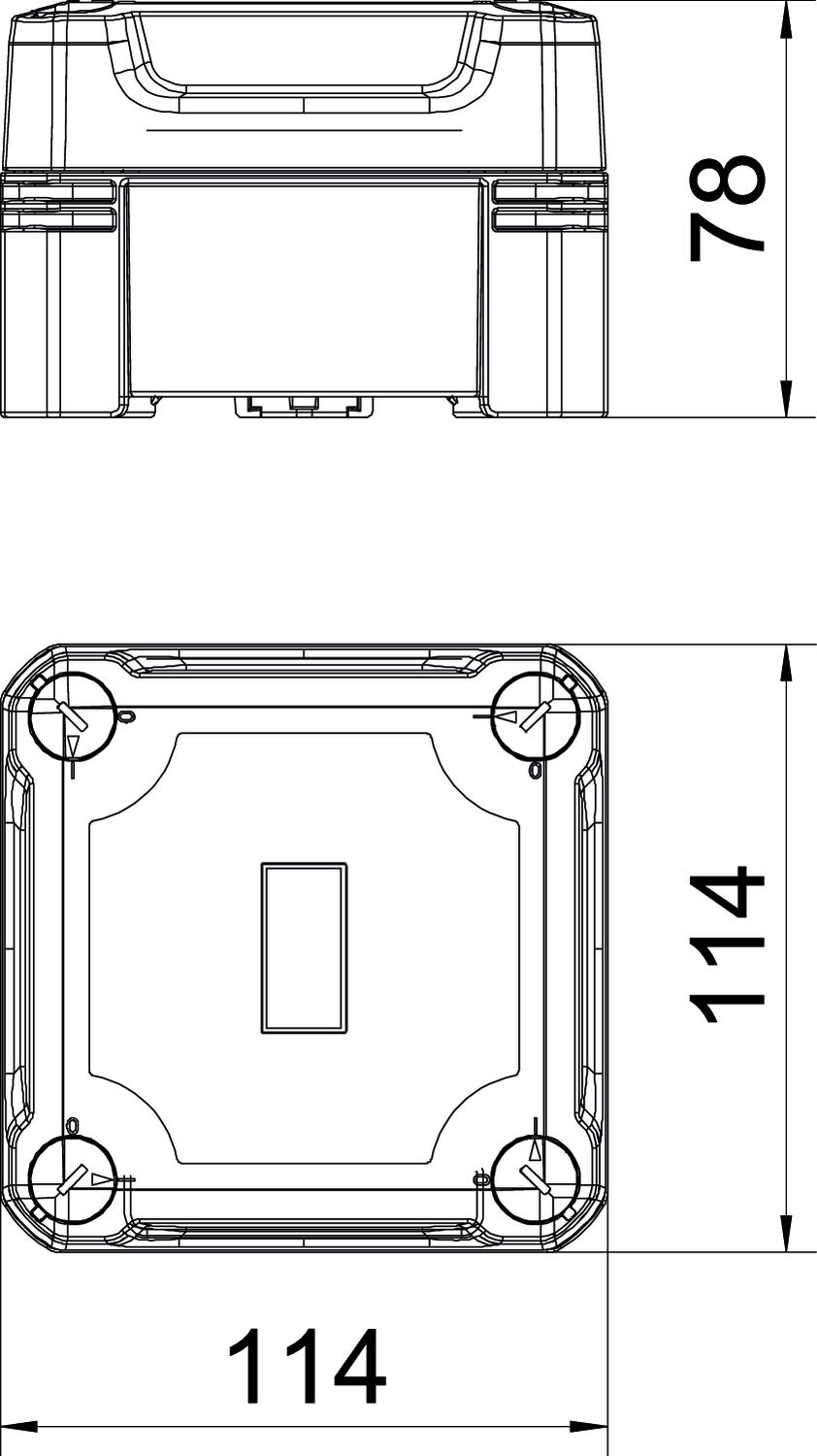

Dimension	114x114x78
Extension option	no
Height	78 mm
Length	114 mm
Material	Polycarbonate
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP67
Protection rating IK code	IK09
Shape	Square
Suitable for outdoor use	yes
Weatherproof	yes
Width	114 mm
with lid	yes

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
X04C LGR	102x102x60 mm	IP67	Light grey; RAL 7035	2005458	piece	1 piece
X04C LGR-TR	102x102x60 mm	IP67	Grey / transparent	2005528	piece	1 piece
X04C SW	102x102x60 mm	IP67	Graphite black; RAL 9011	2005598	piece	1 piece
