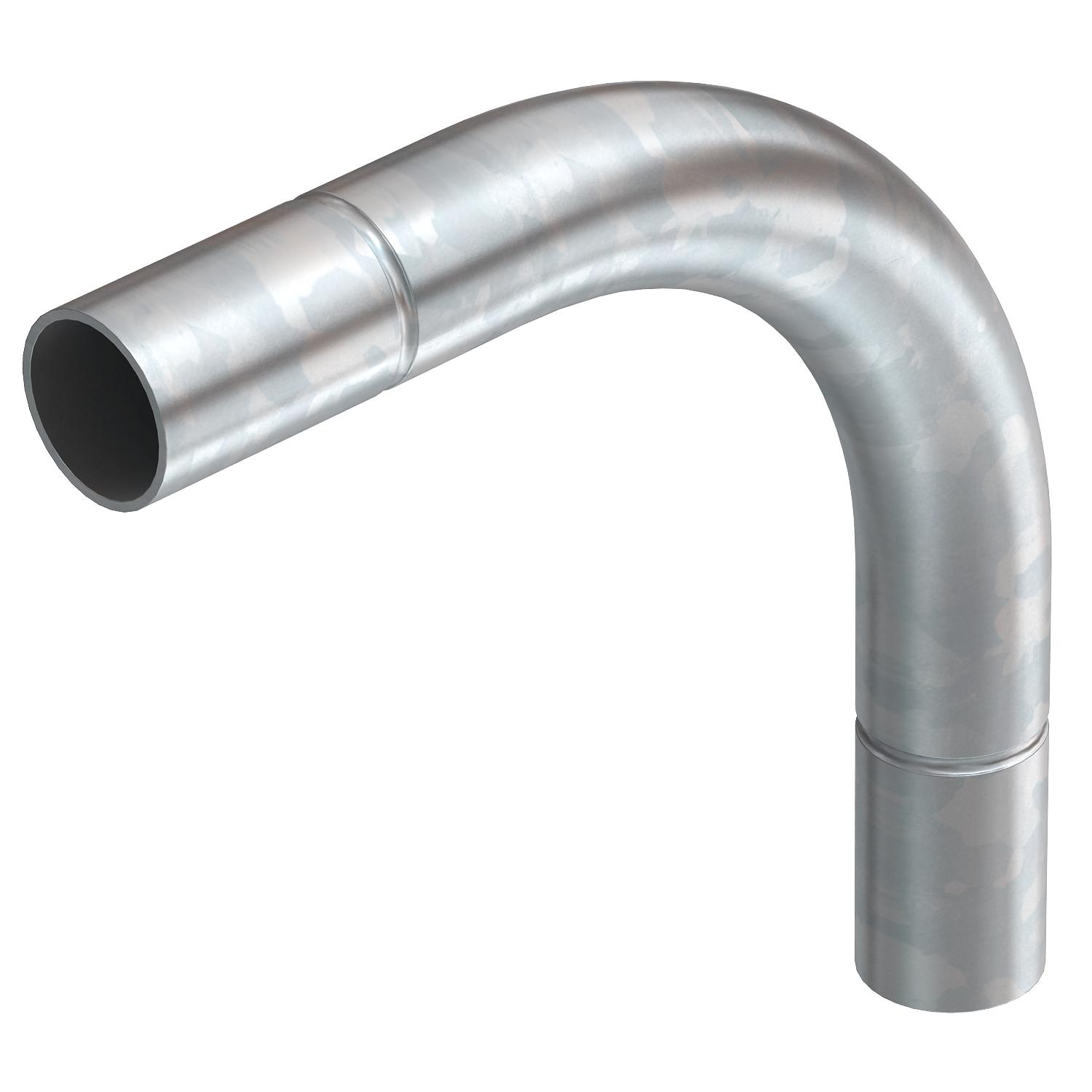

Electrogalvanised steel bend, without thread
Item no. 2046814 | EAN 4012196387892
- Product description
-
Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

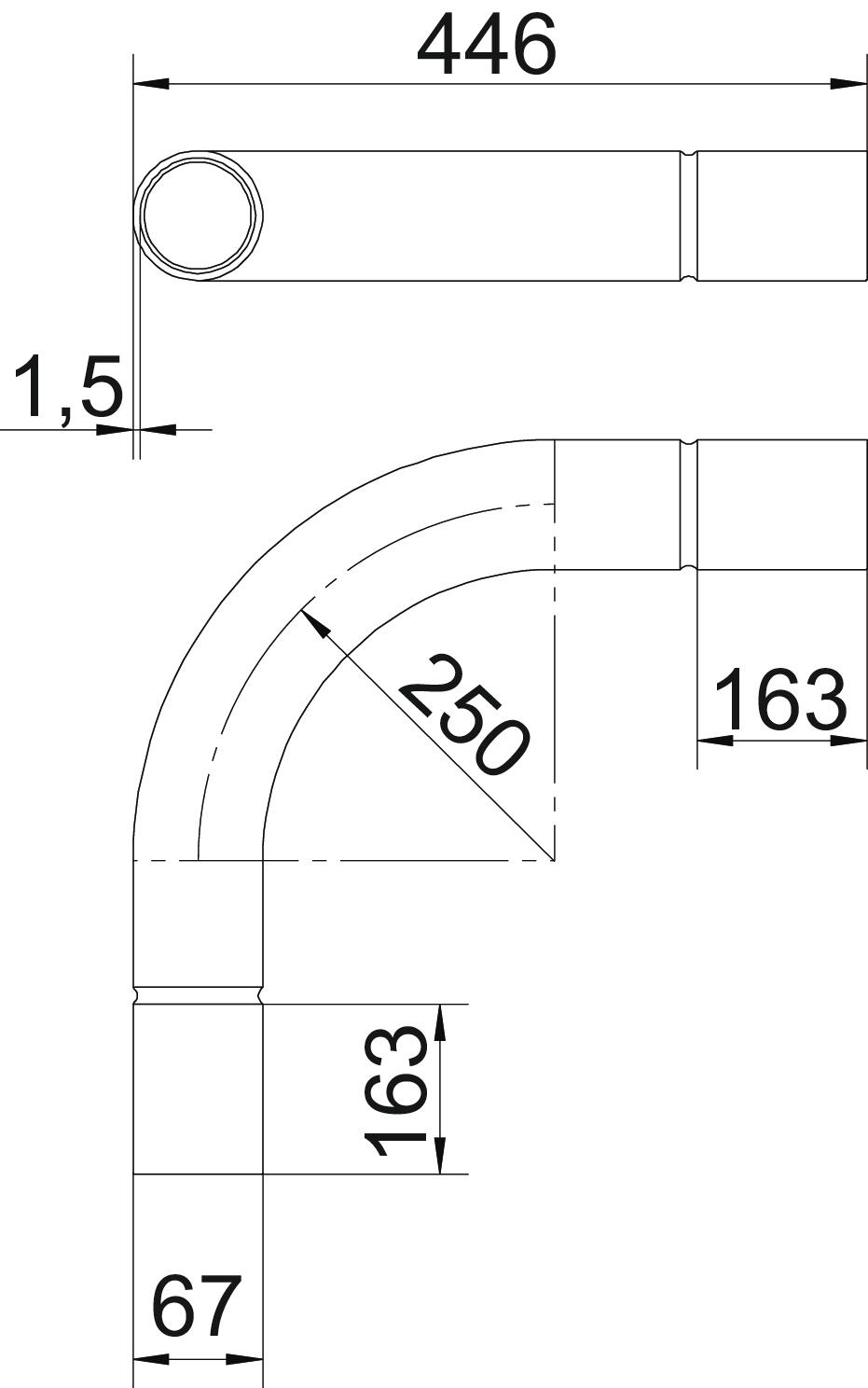

Angle of the bend 90 ° Brushed surface no Dimension Ø63mm Dimension A 163 mm Dimension B 446 mm Dimension D 67 mm Dimension d 64 mm Dimension l 90 mm Dimension m (mm) M63 Dimension R 250 mm Dimension t 1,5 mm Flexible no For nominal pipe diameter 63 mm Halogen-free no Material Steel Polished surface no Surface Electrogalvanized Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN63 G / 2046814 , 0.20MB , pdfEU declaration of conformity SBN63 G / 2046814 , 0.06MB , pdfREACH Declaration of conformity SBN63 G / 2046814 , 0.12MB , pdfRoHS Declaration of conformity SBN63 G / 2046814 , 0.12MB , pdf
