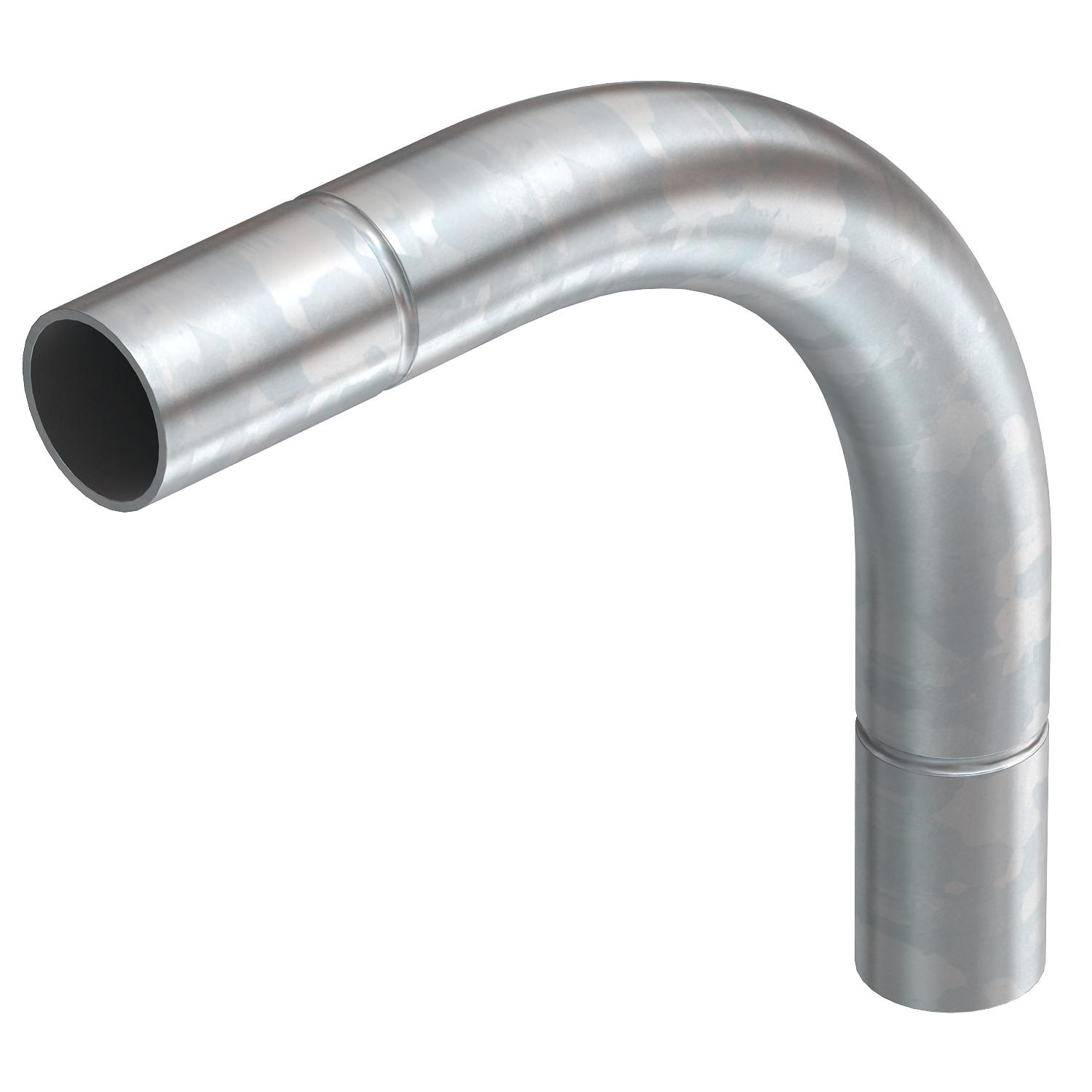

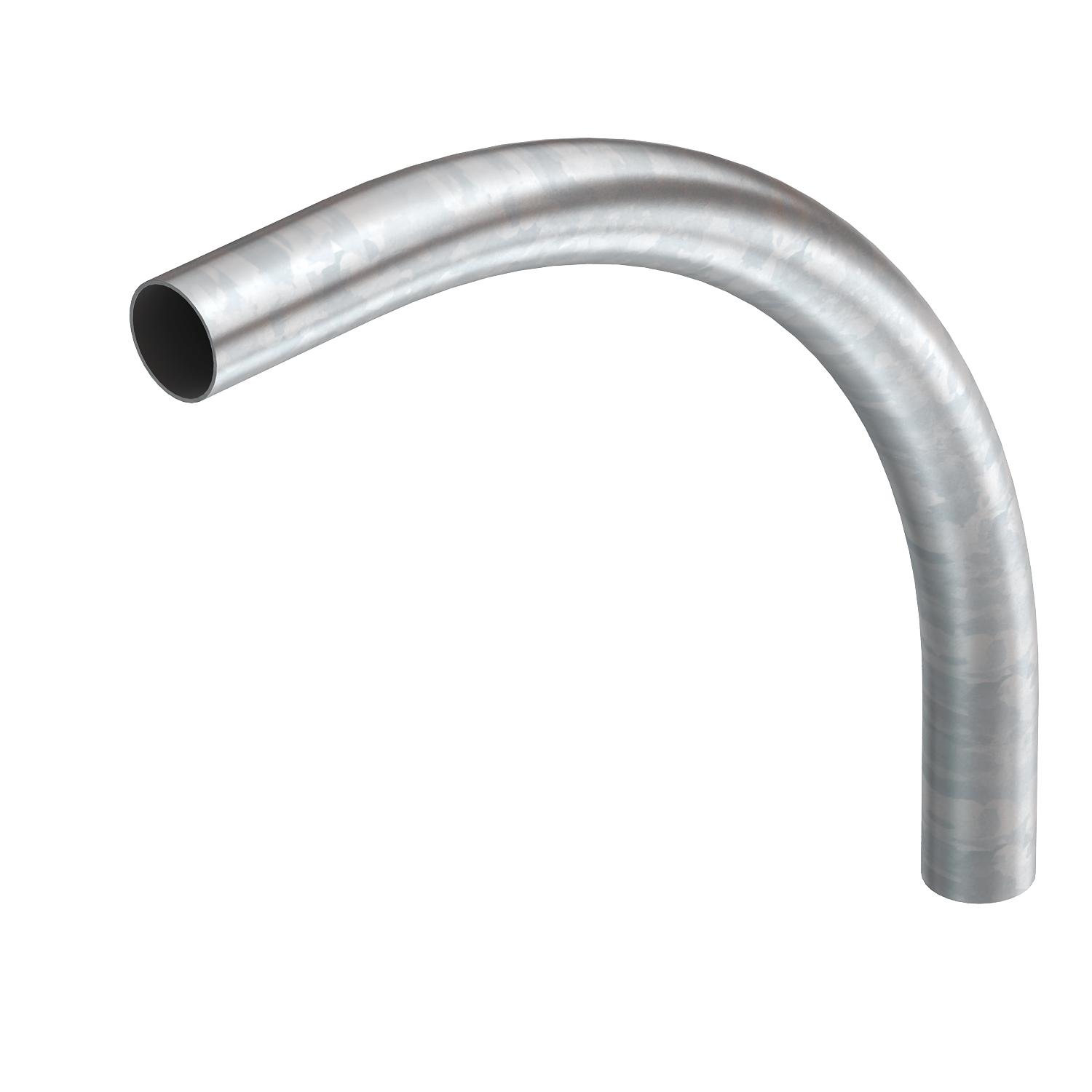

Electrogalvanised steel bend, without thread

Item no. 2046808 | EAN 4012196387816

Item no. / Types

For nominal pipe diameter

Product description

Product description

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Technical data

Technical data

Angle of the bend	90 °
Brushed surface	no
Dimension	Ø16mm
Flexible	no
For nominal pipe diameter	16 mm
Halogen-free	no
Material	Steel

Polished surface	no
Surface	Electrogalvanized
Two-part	no
Version for	Connector
With inspection opening and lid	no
With sleeve	yes

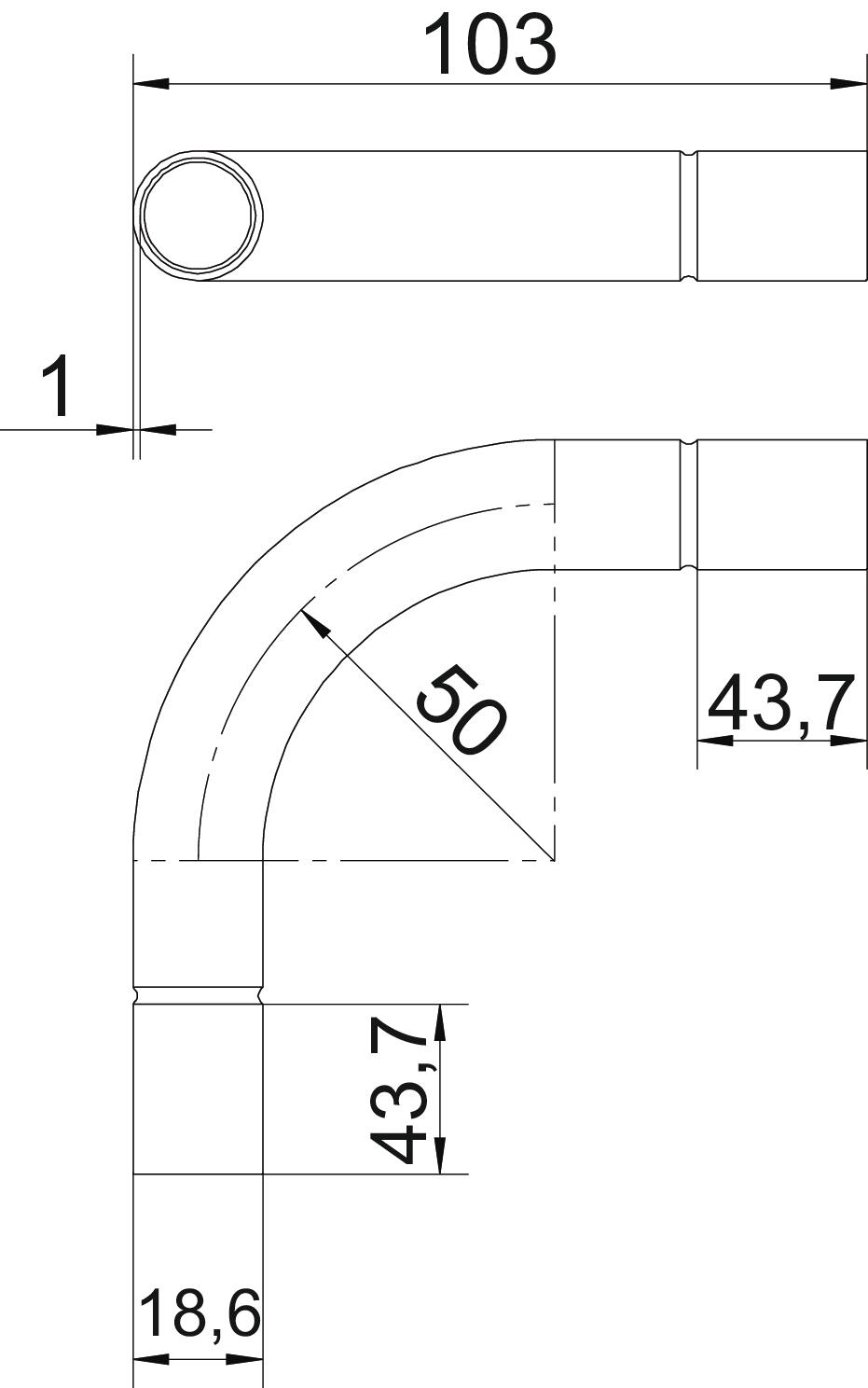

Dimensions

Dimension A	43,7 mm
Dimension B	103 mm
Dimension d	16,6 mm
Dimension D	18,6 mm

Dimension l	25 mm
Dimension m (mm)	M16
Dimension R	50 mm
Dimension t	1 mm

All types

All types

Types	For nominal pipe diameter	Item no.	Quantity	SSU
SBN16 G	16 mm	2046808	piece	15 piece
SBN20 G	20 mm	2046809	piece	25 piece
SBN25 G	25 mm	2046810	piece	25 piece
SBN32 G	32 mm	2046811	piece	20 piece
SBN40 G	40 mm	2046812	piece	15 piece
SBN50 G	50 mm	2046813	piece	5 piece
SBN63 G	63 mm	2046814	piece	3 piece
