- Product description
-
Product description

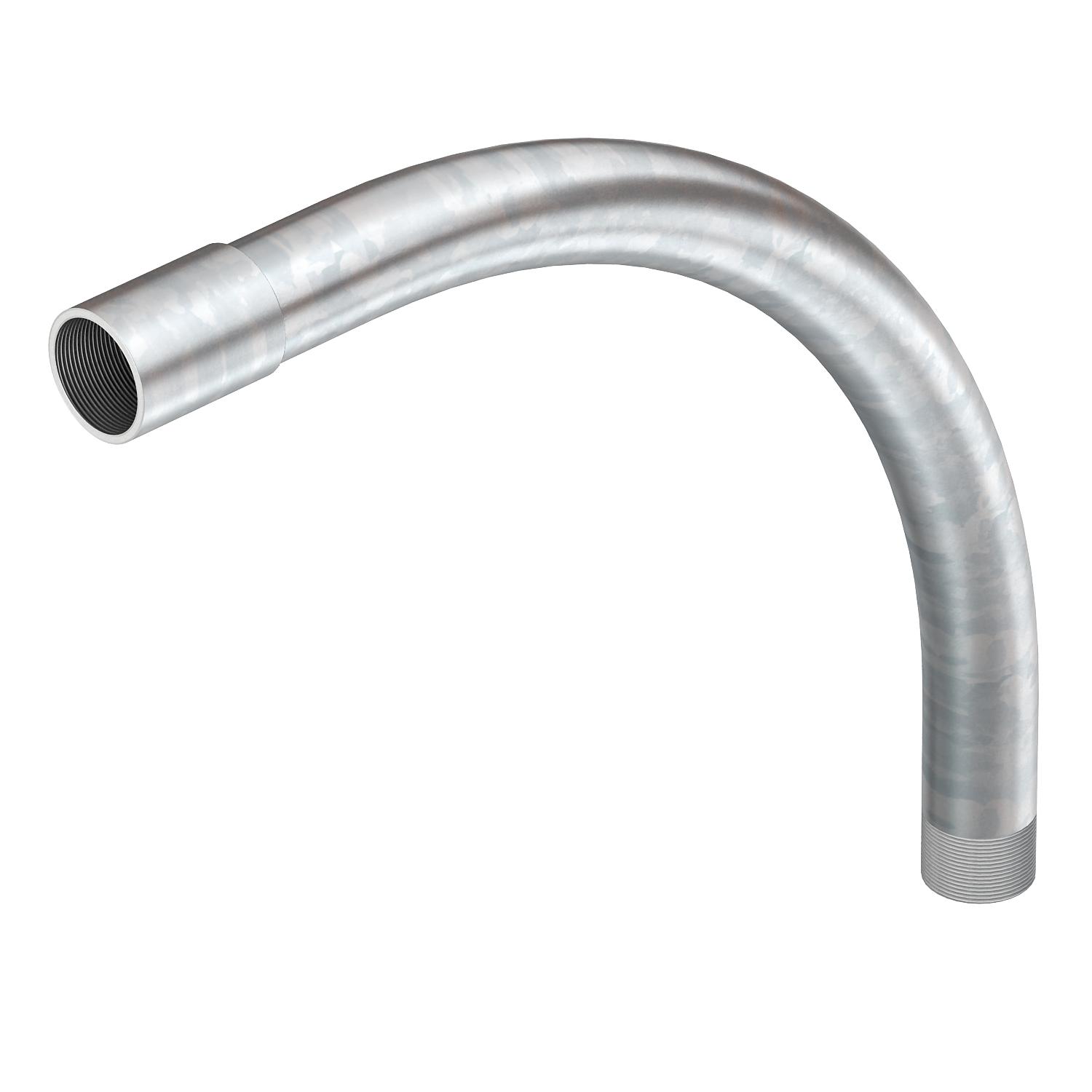

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
- Technical data
-
Technical data

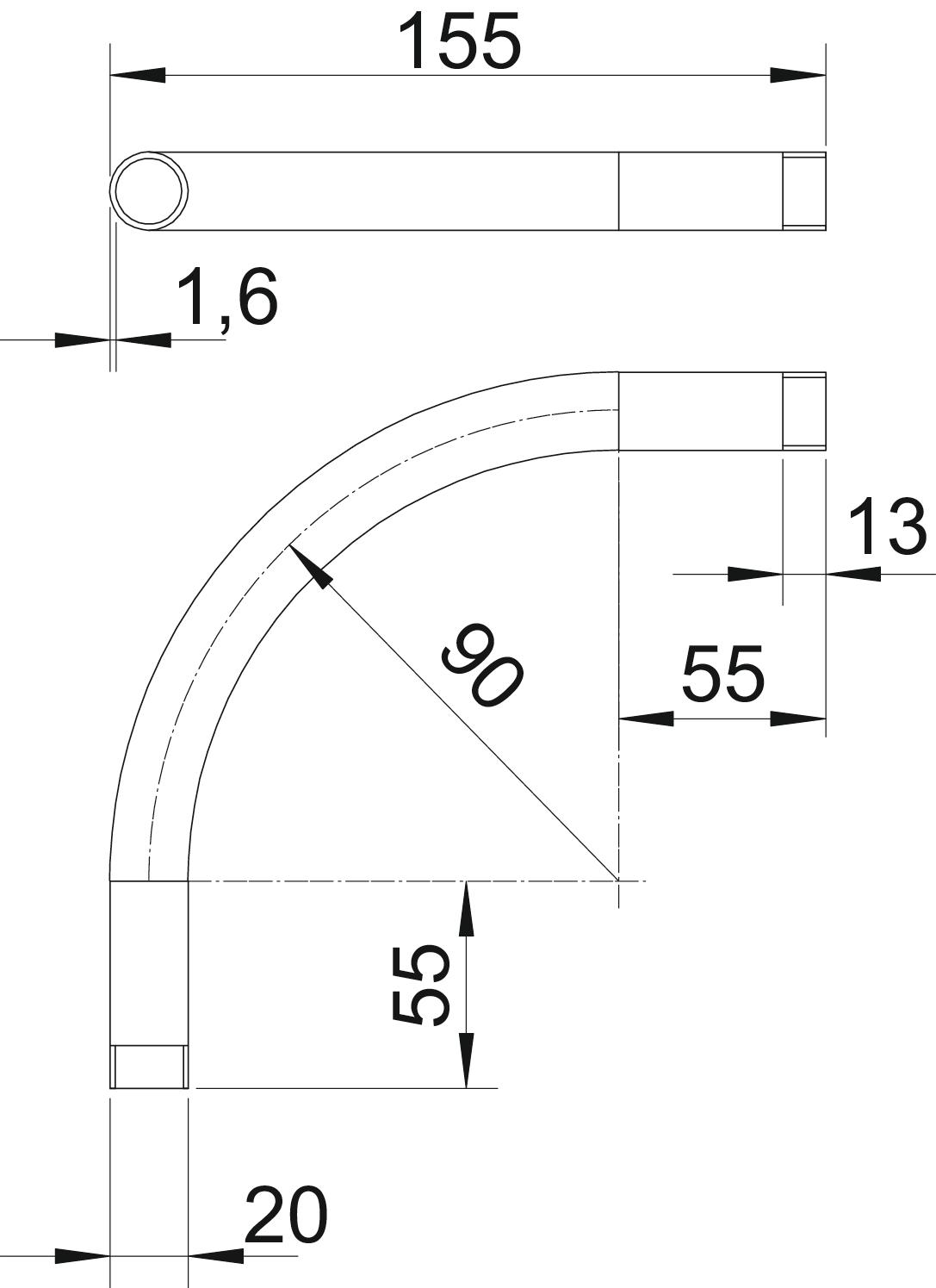

Angle of the bend 90 ° Brushed surface no Dimension M20x1,5 Dimension A 55 mm Dimension B 155 mm Dimension D 20 mm Dimension l 13 mm Dimension m (mm) M20 Dimension R 90 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 20 mm Halogen-free no Material Steel Polished surface no Surface Electrogalvanized Thread M20x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM20 G / 2046779 , 0.22MB , pdfDeclaration of conformity SBNM20 G / 2046779 , 0.06MB , pdfREACH Declaration of conformity SBNM20 G / 2046779 , 0.12MB , pdfRoHS Declaration of conformity SBNM20 G / 2046779 , 0.12MB , pdf
