- Product description
-

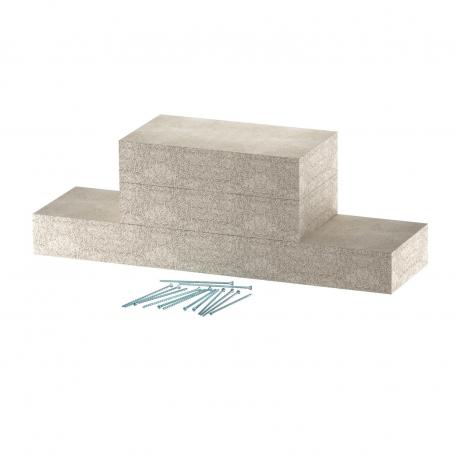

Product descriptionWall connection collar for PYROLINE® Con D EI90 fire protection duct, type PLCD D091220, consisting of fibreglass light concrete, which is resistant to water and frost, for mounting on the fire protection duct in the area of wall and ceiling connections and wall and ceiling penetrations. Consists of 3 single plates (width 100 mm, depth 40 mm). Including countersunk head screws.
- Technical data
-
Technical data
Classification EI − installation duct 90 Colour Grey Dimension 200x120 Material Fibreglass lightweight concrete Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLCD W091220 / 7215834 , 0.11MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCD W091220 / 7215834 , 0.11MB , pdfDeclaration of performance PLCD W091220 / 7215834 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf
