EI90 T piece for PLCS D090810 fire protection duct
Item no. 7217910 | EAN 4012196836765
- Product description
-
Product description

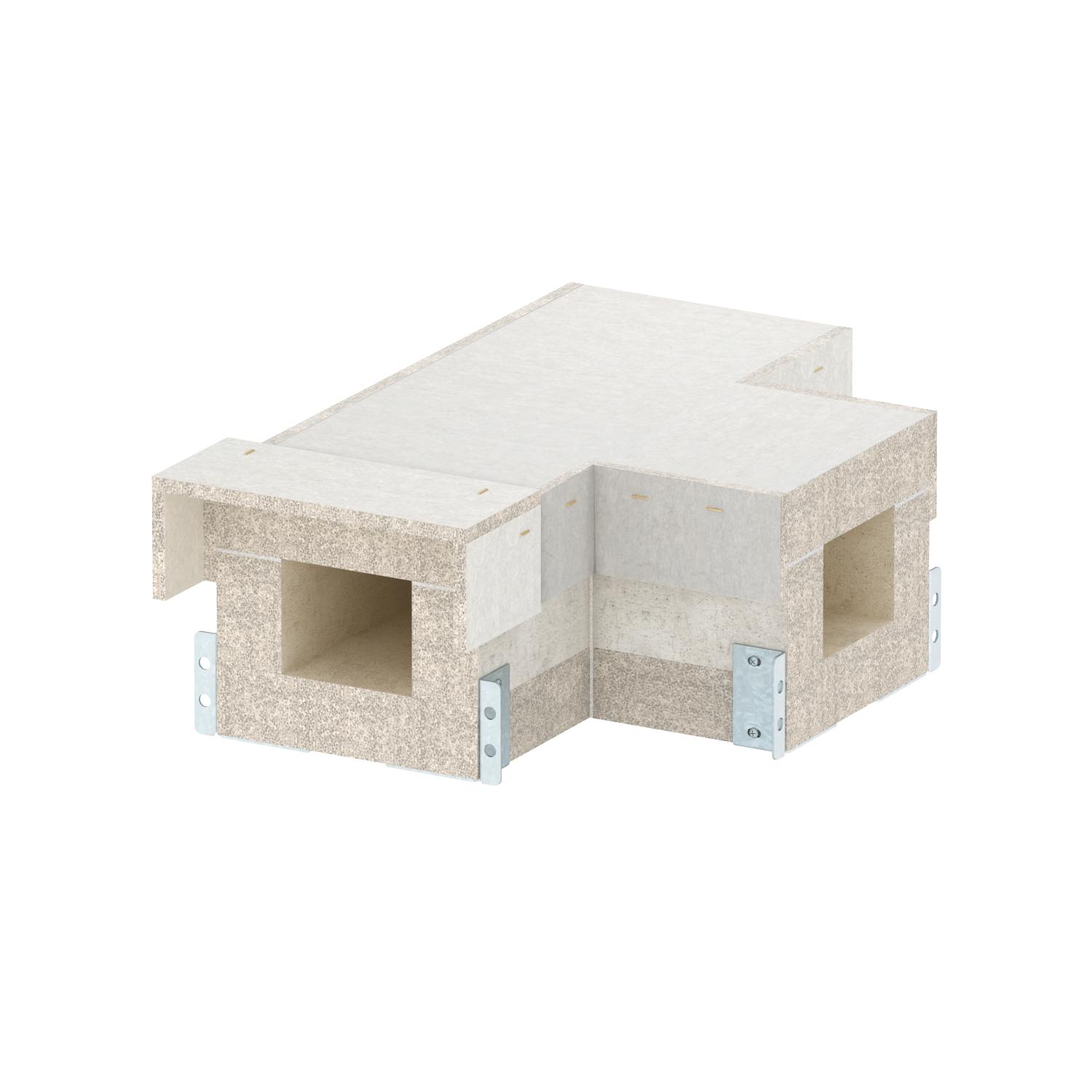

T piece for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost, for the creation of T branches in the duct route. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data
Classification EI − installation duct 90 Colour Grey Dimension 100x80 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no Dimensions

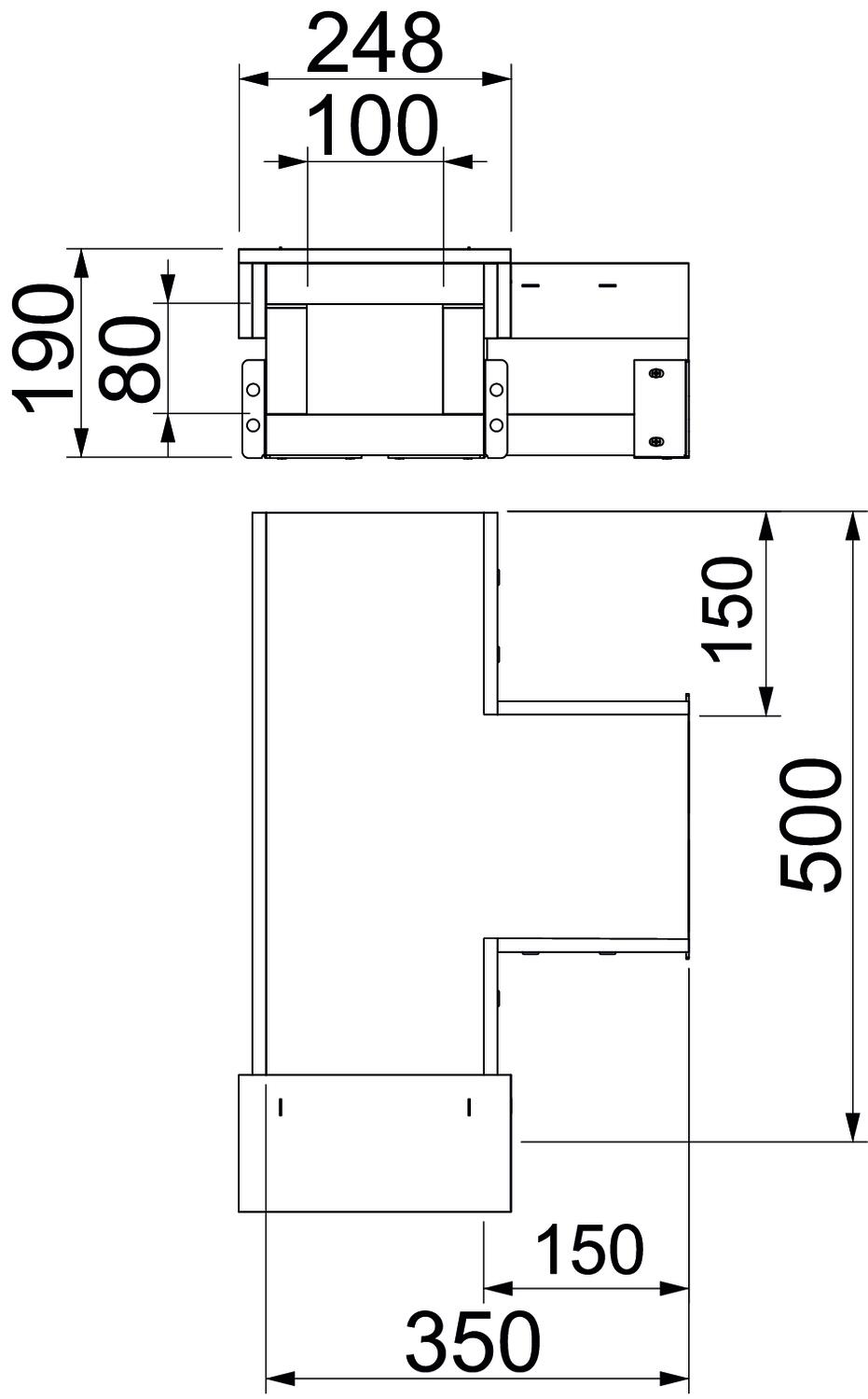

Dimension b 100 mm Dimension B 248 mm Dimension H 190 mm Dimension h 80 mm Dimension l 350 mm Dimension L 500 mm - All types
- Downloads
-
Data sheet PLCS T090810 / 7217910 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
