- Product description
-

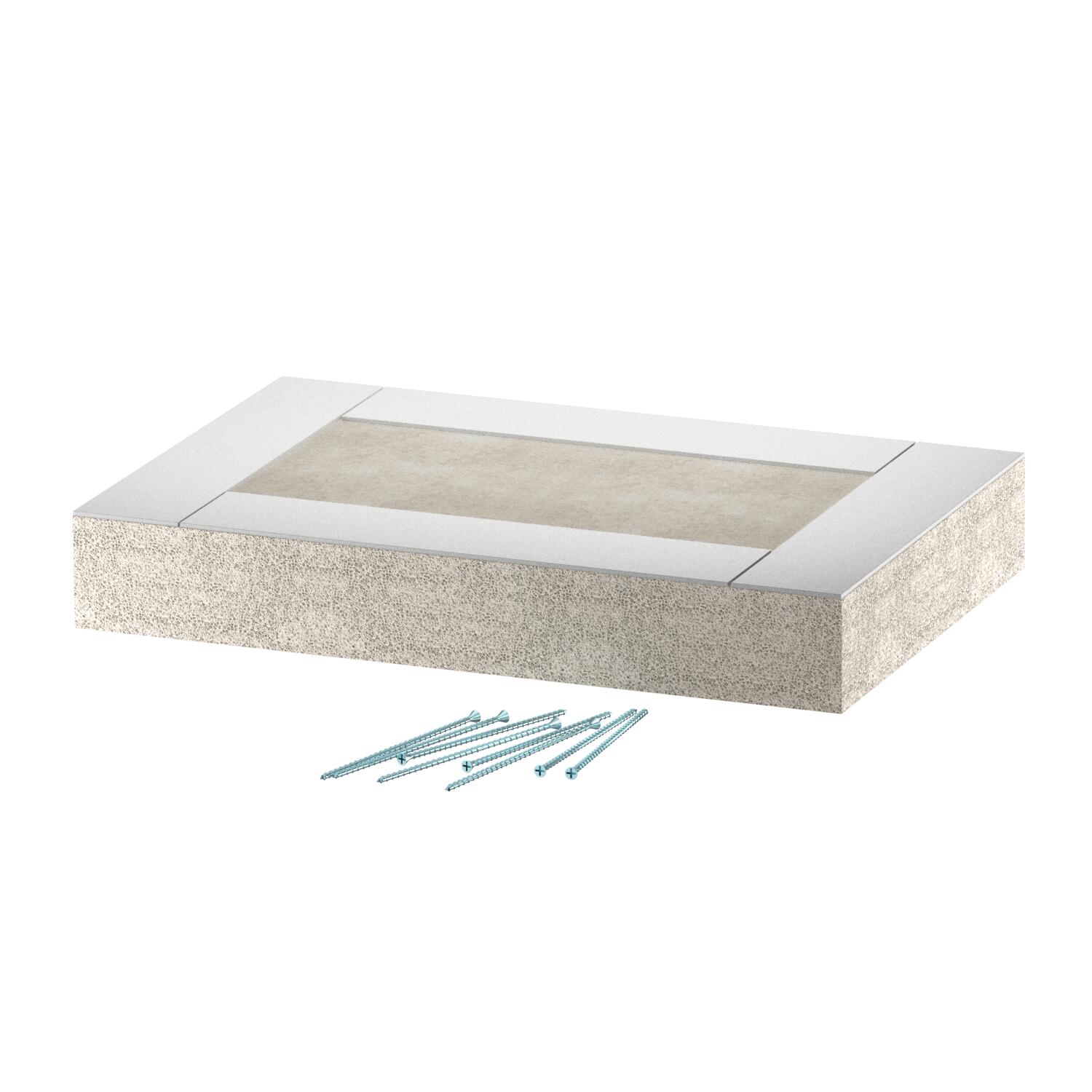

Product descriptionEnd piece for PYROLINE® Con D EI90 fire protection duct, type PLCD D091220, consisting of fibreglass light concrete which is resistant to water and frost for closing the duct ends.
Including countersunk head screws and stuck-on sealing strip.
- Technical data
-
Technical data

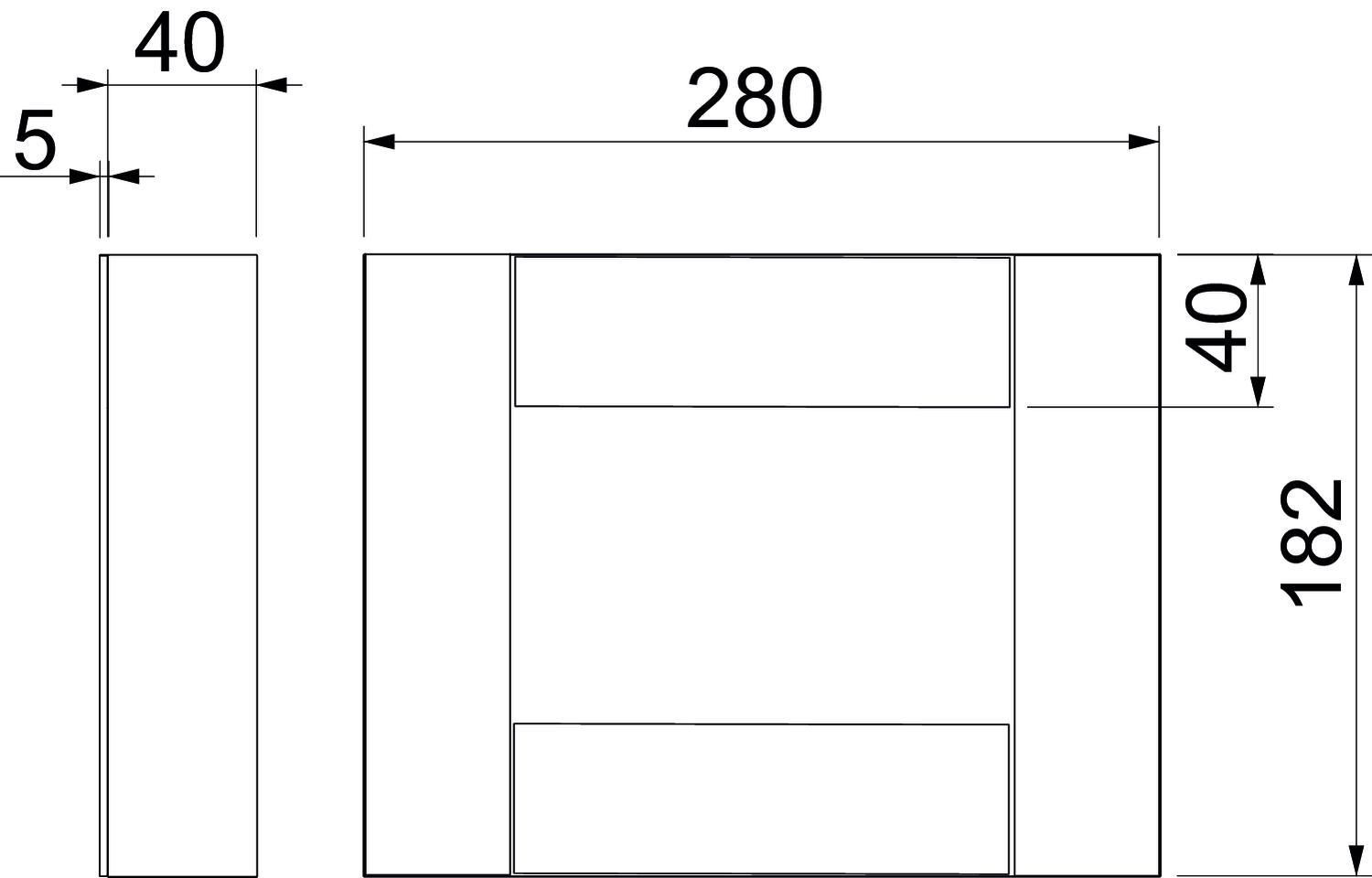

Classification EI − installation duct 90 Colour Grey Dimension 200x120 Dimension A 40 mm Dimension B 280 mm Dimension H 182 mm Dimension L 40 mm Height 182 mm Jacketing Without Length 40 mm Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Version for Left/right Width 280 mm - All types
- Downloads
-
Data sheet PLCD E091220 / 7215854 , 0.23MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCD E091220 / 7215854 , 0.10MB , pdfDeclaration of performance PLCD E091220 / 7215854 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf
