EI90 90° bend for PLCS D091220 fire protection duct
Item no. 7217894 | EAN 4012196836734
- Product description
-
Product description

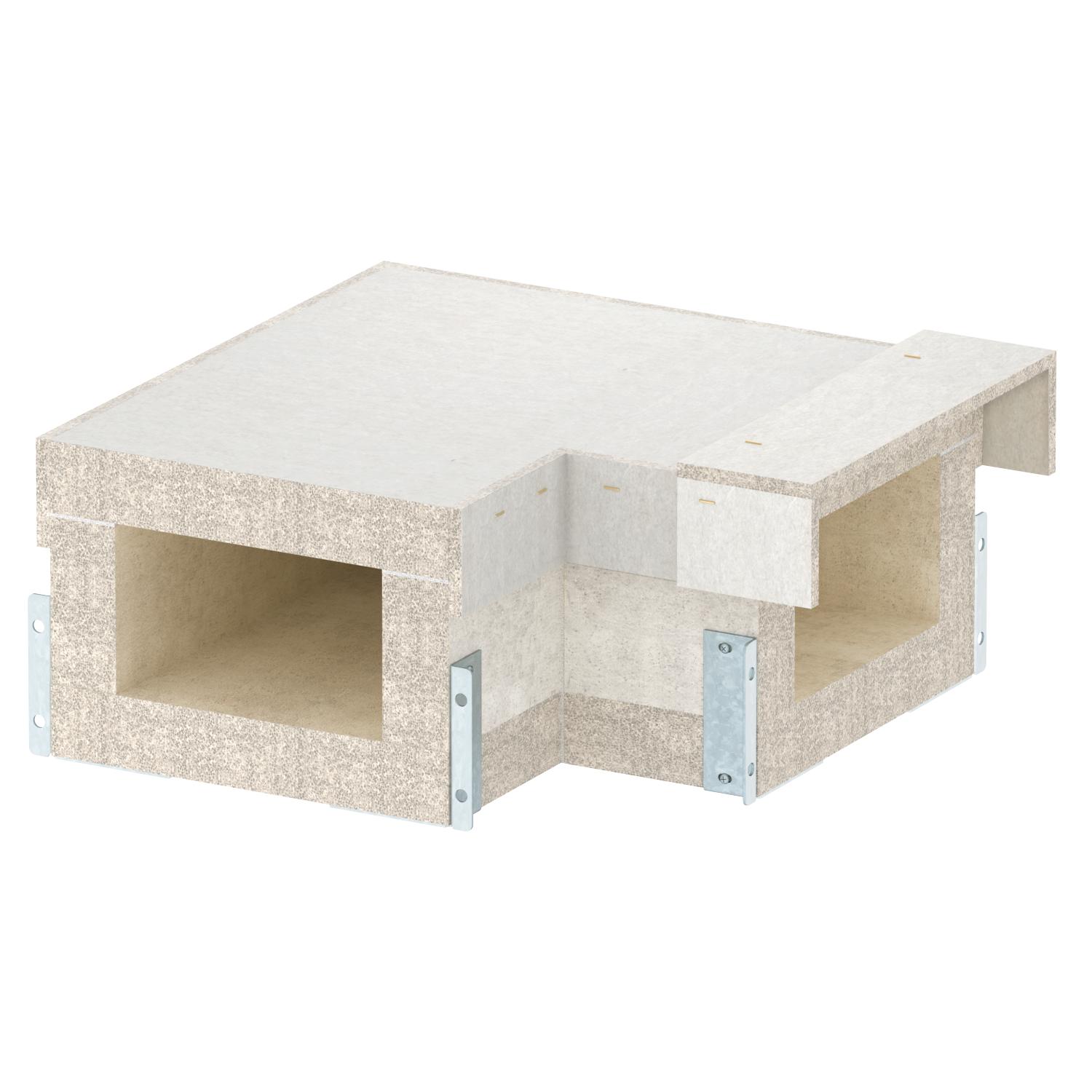

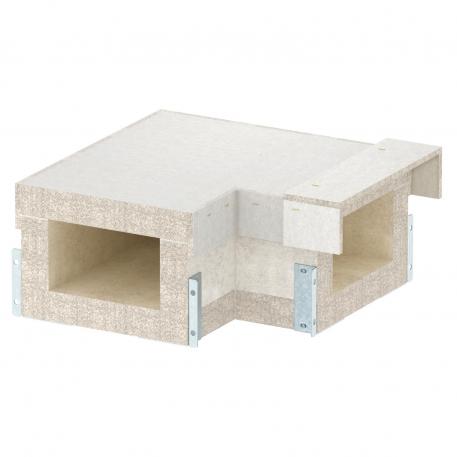

90° bend for PYROLINE® Con S EI90 fire protection duct, type PLCS D091220, consisting of fibreglass light concrete which is resistant to water and frost for the creation of horizontal changes of direction in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Classification EI − installation duct 90 Colour Grey Cover fastening Loose Dimension 200x120 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no Dimensions

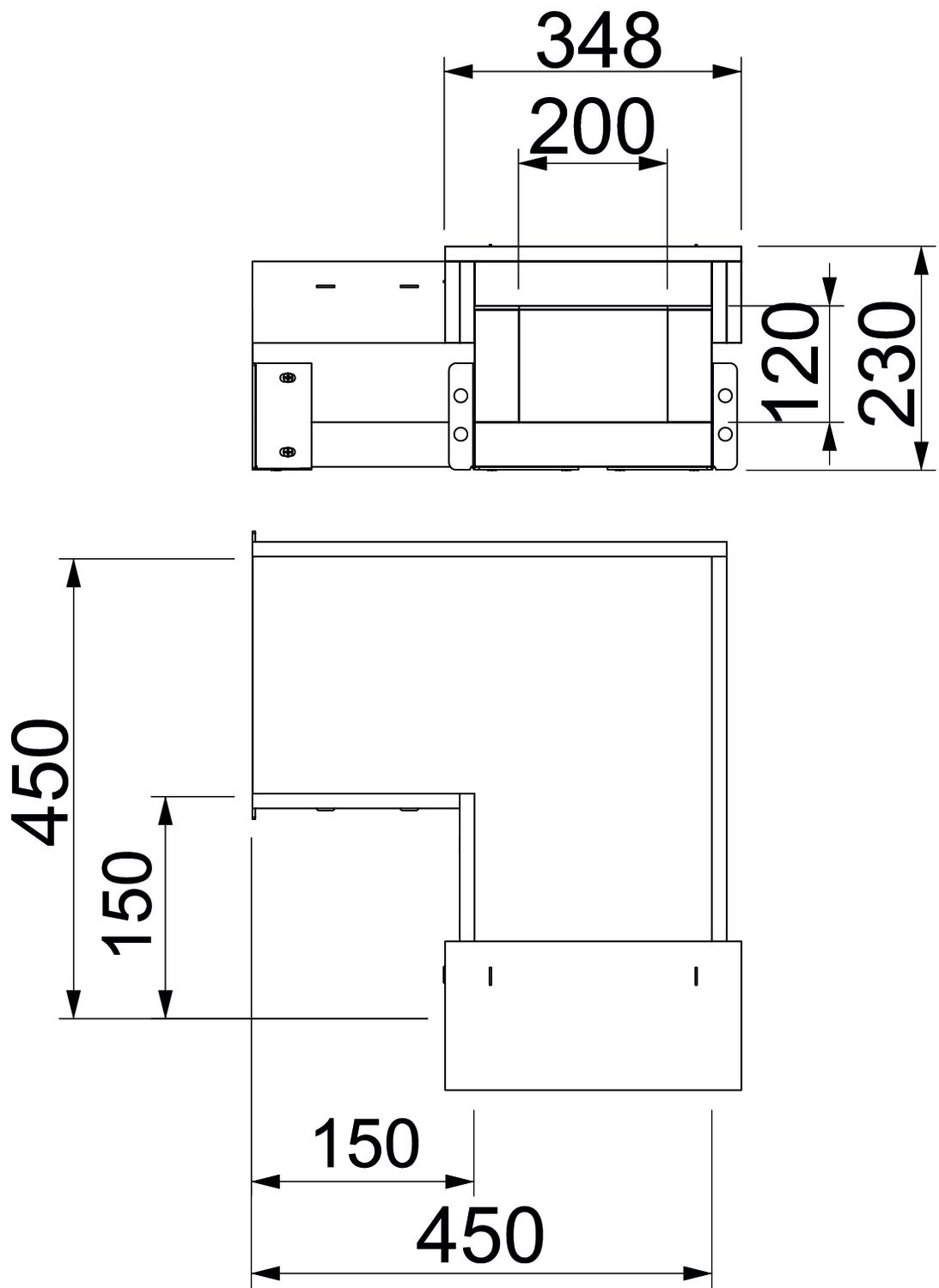

Dimension B 348 mm Dimension b 200 mm Dimension h 120 mm Dimension H 230 mm Dimension L 450 mm - All types
