EI60 wall connection collar for PLCD D061220 fire protection duct
Item no. 7215824 | EAN 4012196836499
- Product description
-
Product description

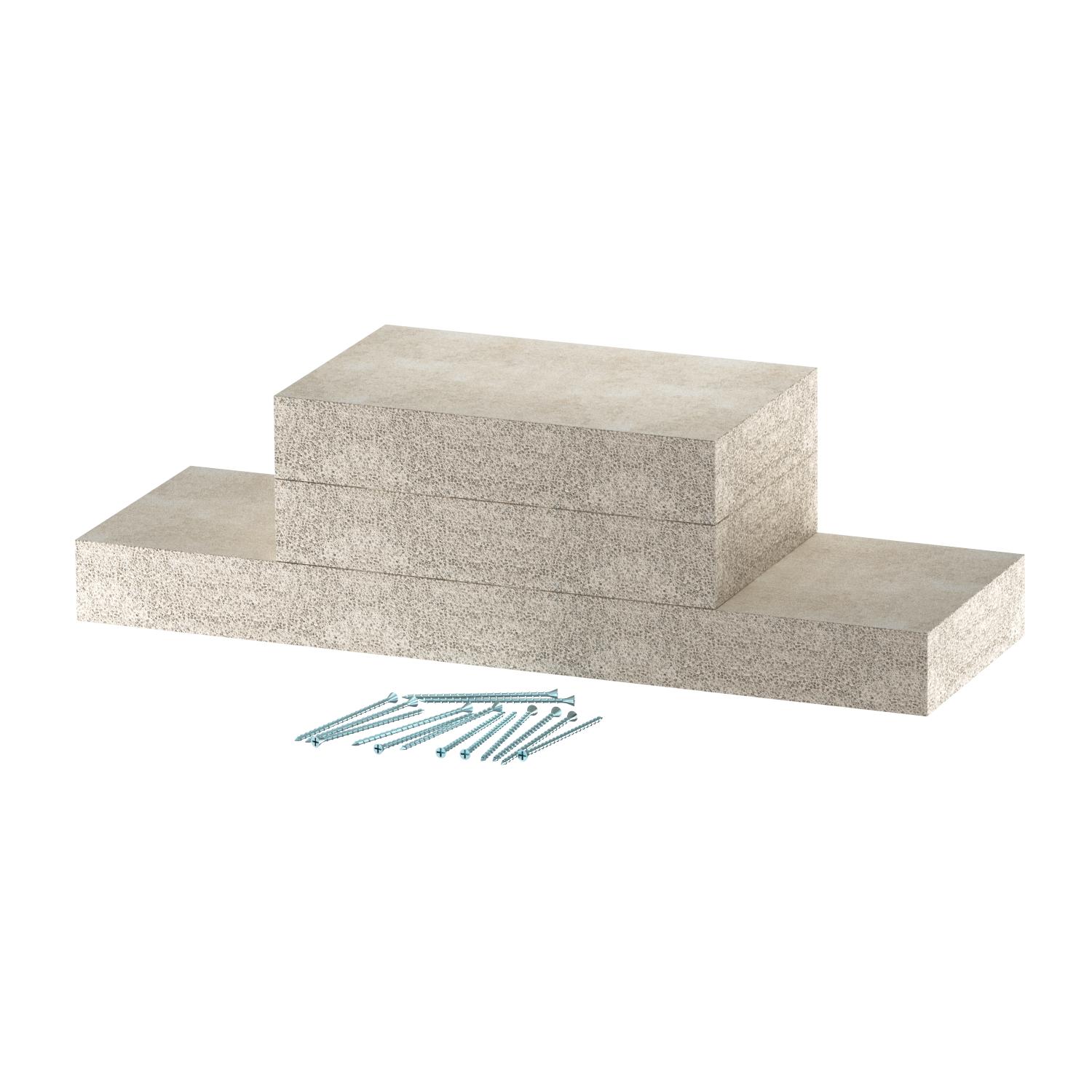

Wall connection collar for PYROLINE® Con D EI60 fire protection duct, type PLCD D061220, consisting of fibreglass light concrete, which is resistant to water and frost, for mounting on the fire protection duct in the area of wall and ceiling connections and wall and ceiling penetrations. Consists of 3 single plates (width 100 mm, depth 30 mm). Including countersunk head screws.
-
- Technical data
-
Technical data
Classification EI − installation duct 60 Colour Grey Dimension 200x120 Material Fibreglass lightweight concrete Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLCD W061220 / 7215824 , 0.10MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLCD W061220 / 7215824 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
