EI60 T piece for PLCS D060810 fire protection duct
Item no. 7217900 | EAN 4012196836741
- Product description
-

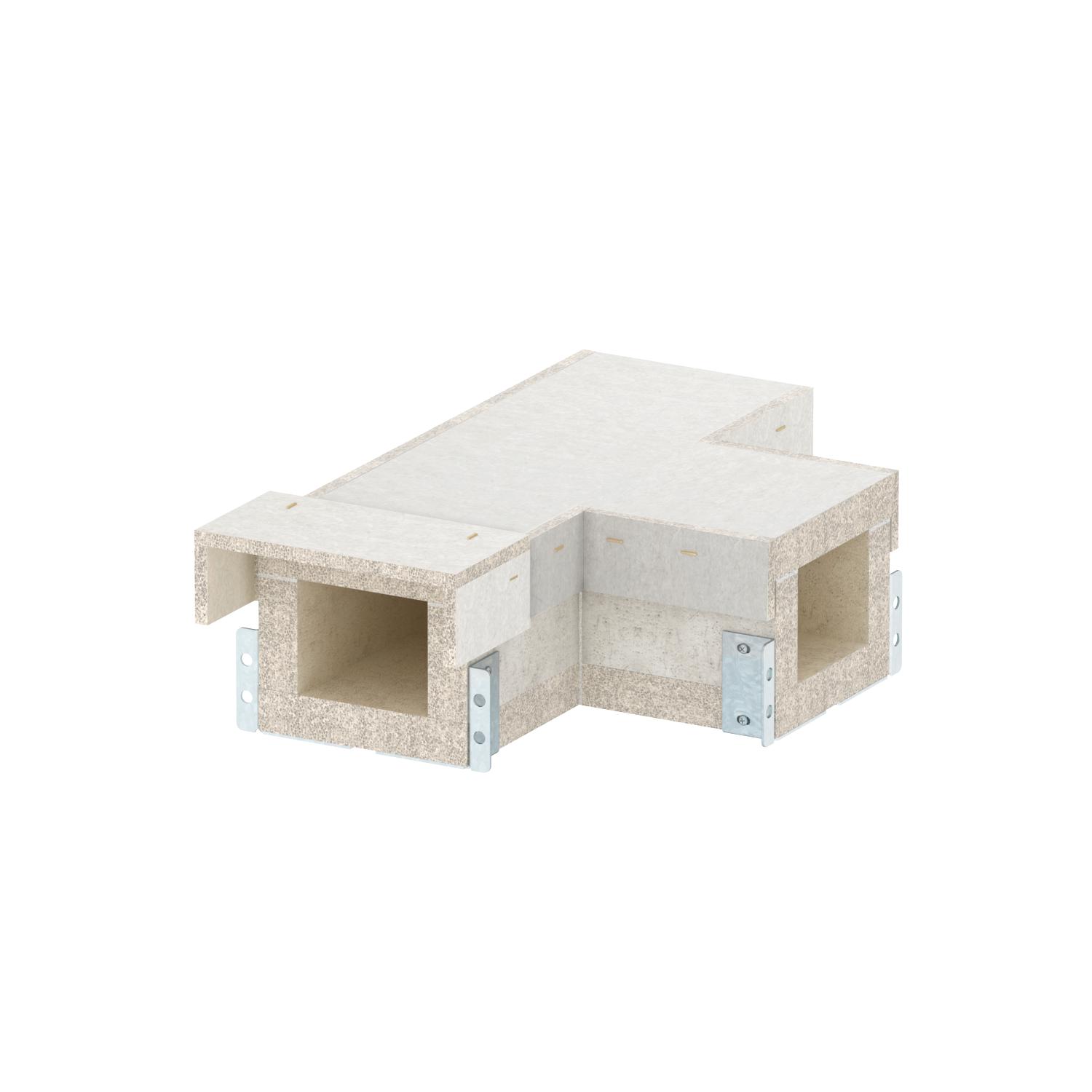

Product descriptionT piece for PYROLINE® Con S EI60 fire protection duct, type PLCS D060810, consisting of fibreglass light concrete which is resistant to water and frost, for the creation of T branches in the duct route. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

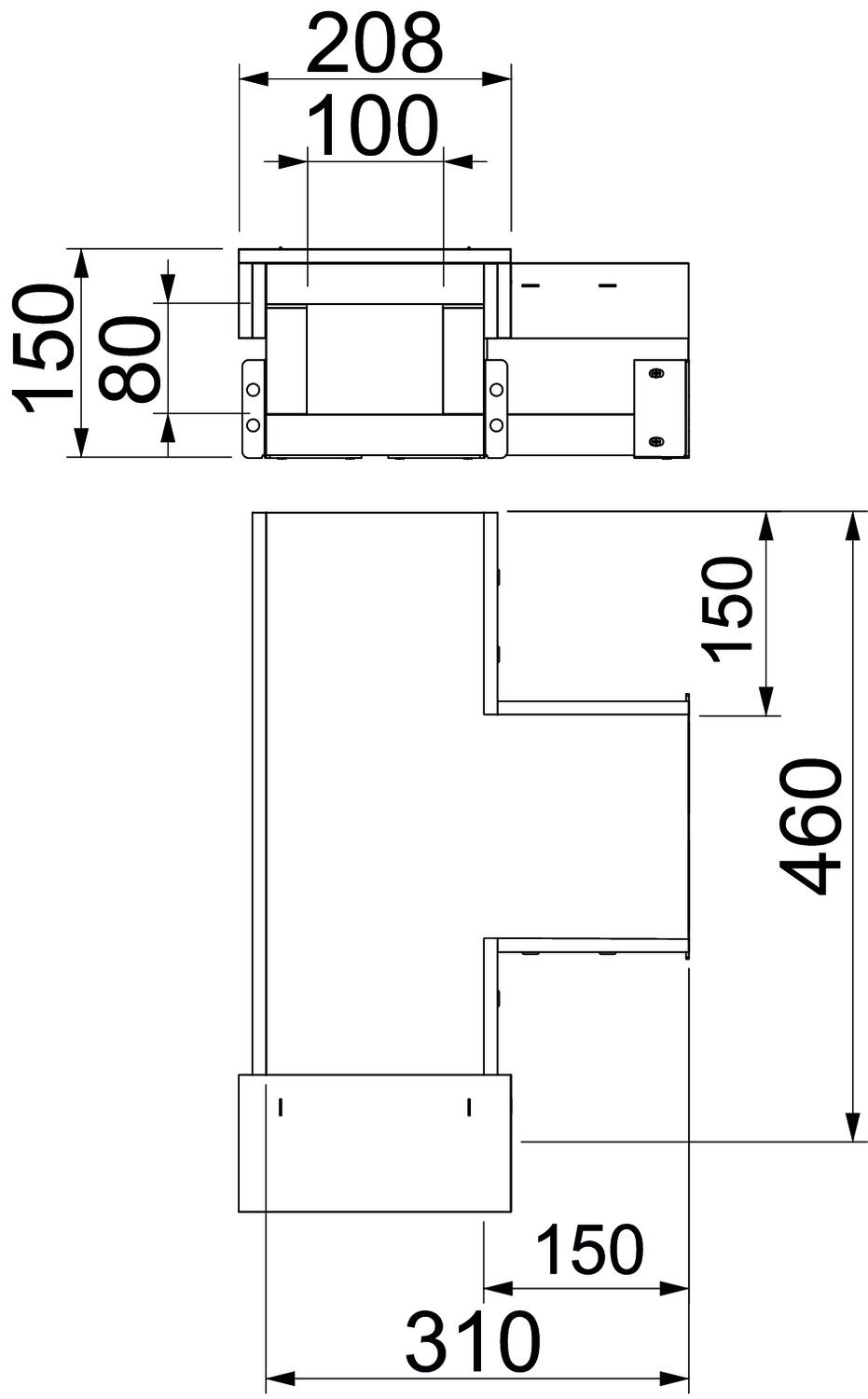

Classification EI − installation duct 60 Colour Grey Dimension 100x80 Dimension B 208 mm Dimension b 100 mm Dimension h 80 mm Dimension H 150 mm Dimension L 460 mm Dimension l 310 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
- Downloads
-
Data sheet PLCS T060810 / 7217900 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS T060810 / 7217900 , 0.10MB , pdfDeclaration of performance PLCS T060810 / 7217900 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
