EI60 end piece for PLCS D060810 fire protection duct
Item no. 7217980 | EAN 4012196836932
- Product description
-
Product description

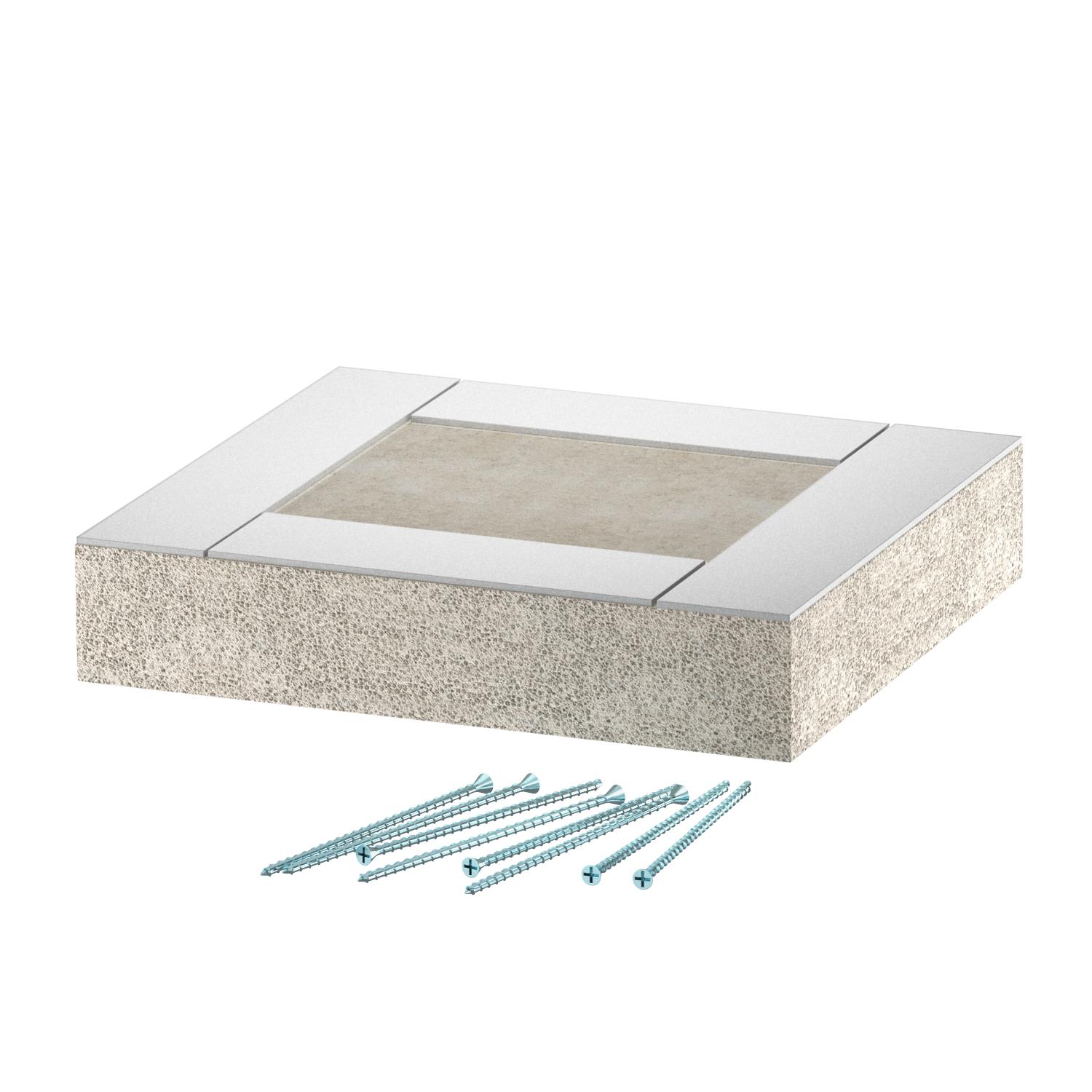

End piece for PYROLINE® Con S EI60 fire protection duct, type PLCS D060810, consisting of fibreglass light concrete which is resistant to water and frost to close the duct ends.
Including countersunk head screws and stuck-on sealing strip.
-
- Technical data
-
Technical data
Classification EI − installation duct 60 Colour Grey Dimension 100x80 Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Version for Left/right Dimensions

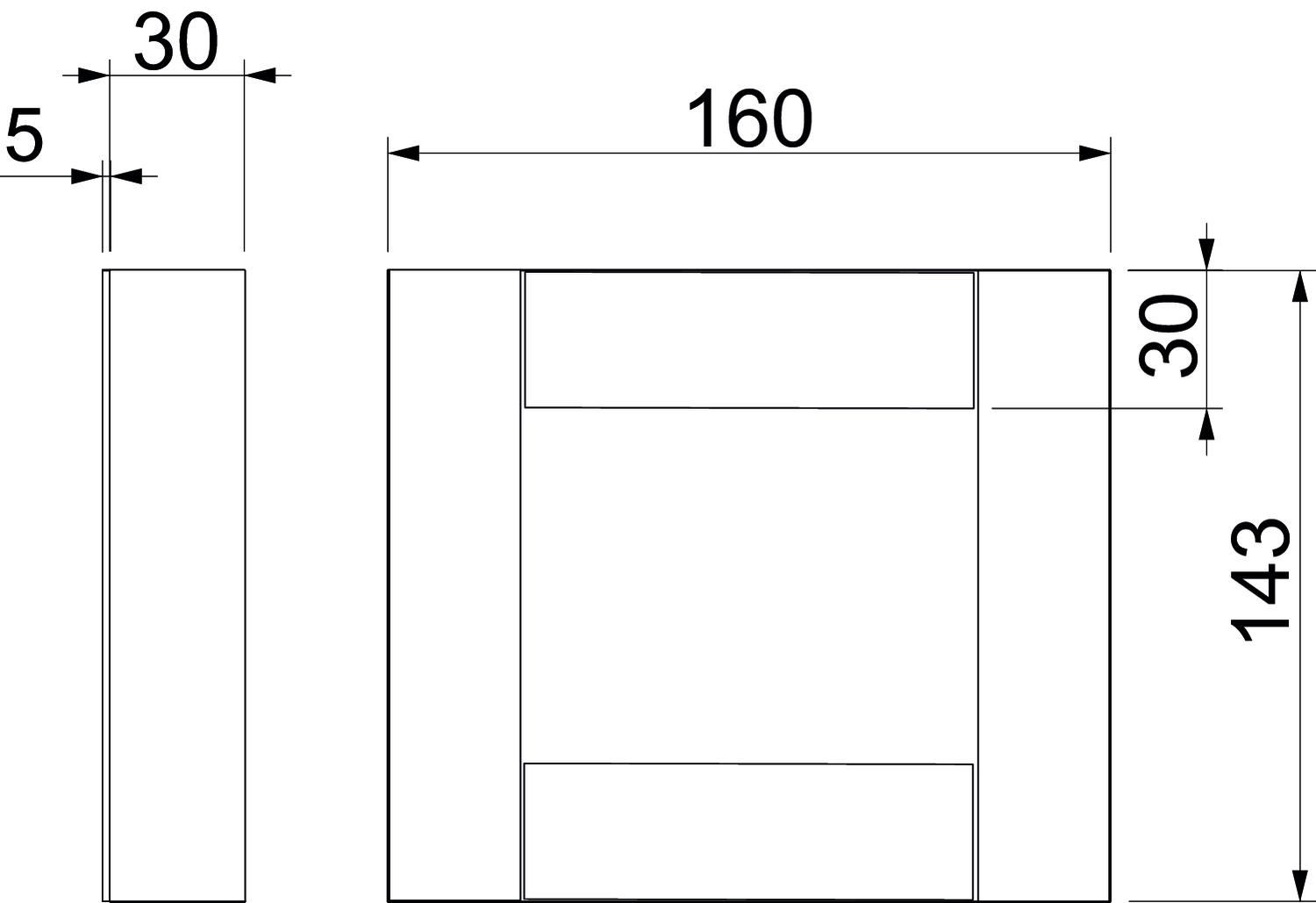

Dimension A 30 mm Dimension B 160 mm Dimension H 143 mm Dimension L 30 mm Height 143 mm Length 30 mm Width 160 mm - All types
- Downloads
-
Data sheet PLCS E060810 / 7217980 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
