EI60 end piece for PLCD D060810 fire protection duct 160 | 127 | Grey

morepic-1

morepic-2

EI60 end piece for PLCD D060810 fire protection duct

Item no. 7215840 | EAN 4012196836529

Item no. / Types

Dimension B

Dimension H

Colour	Grey

Product description

Product description

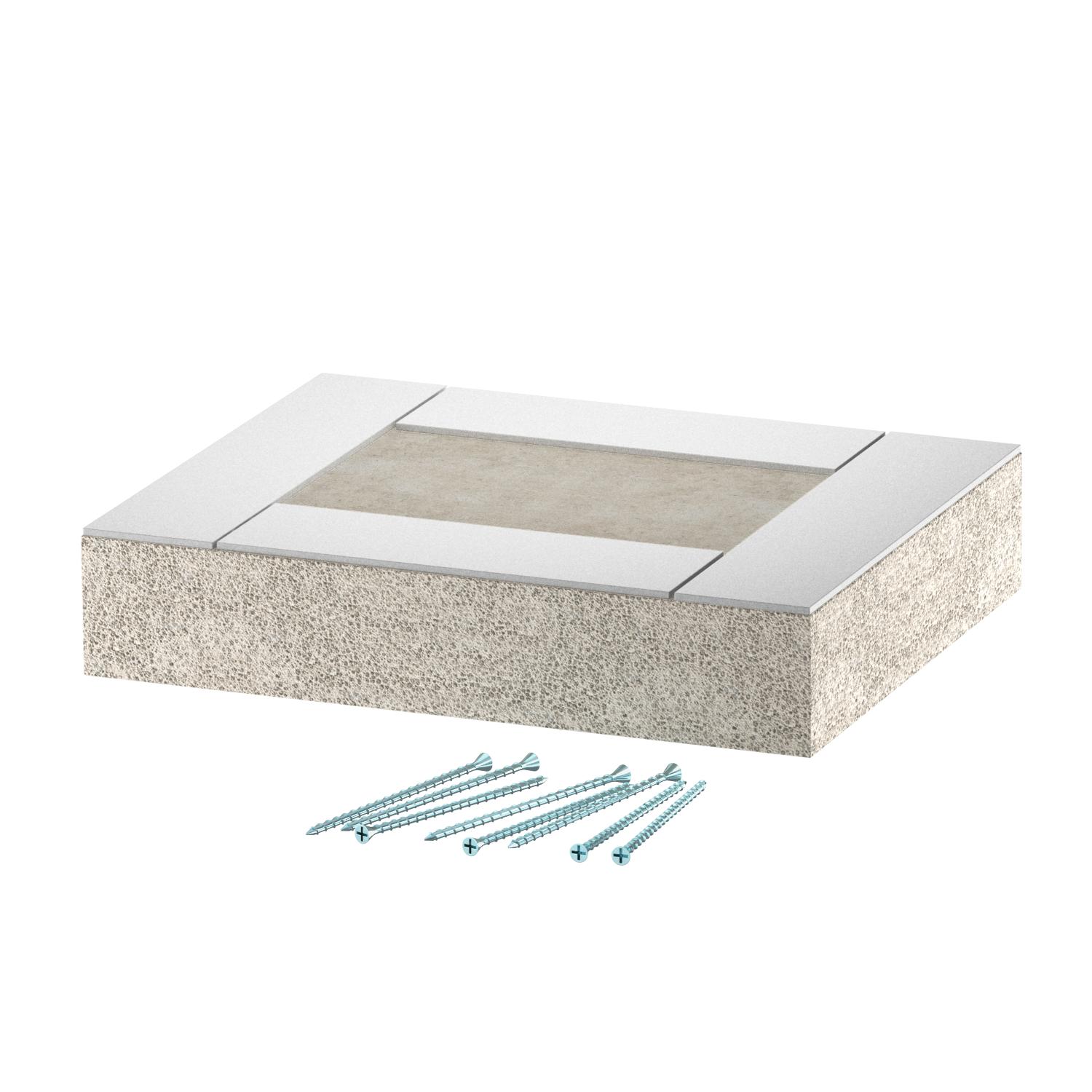

End piece for PYROLINE® Con D EI60 fire protection duct, type PLCD D060810, consisting of fibre glass light concrete which is resistant to water and frost for closing the duct ends.

Including countersunk head screws and stuck-on sealing strip.

Technical data

Technical data

Classification EI − installation duct	60
Colour	Grey
Dimension	100x80
Dimension A	30 mm
Dimension B	160 mm
Dimension H	127 mm
Dimension L	30 mm

Height	127 mm
Jacketing	Without
Length	30 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Version for	Left/right
Width	160 mm

All types

All types

Types	Dimension B	Dimension H	Colour	Item no.	Quantity	SSU
PLCD E060810	160 mm	127 mm	Grey	7215840	piece	1 piece
PLCD E061220	260 mm	167 mm	Grey	7215844	piece	1 piece

Downloads

Data sheet PLCD E060810 / 7215840 , 0.19MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure PYROLINE® Con PLC concrete fire protection ducts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Brandschutzkanäle , 8.99MB , pdf

Declaration of conformity PLCD E060810 / 7215840 , 0.11MB , pdf

PLCD E060810 / 7215840 , 0.31MB , pdf

Approval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdf

Download

Mounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdf

Mounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdf

Product graphic PLCD E060810 / 7215840, 135.86 kB, jpg

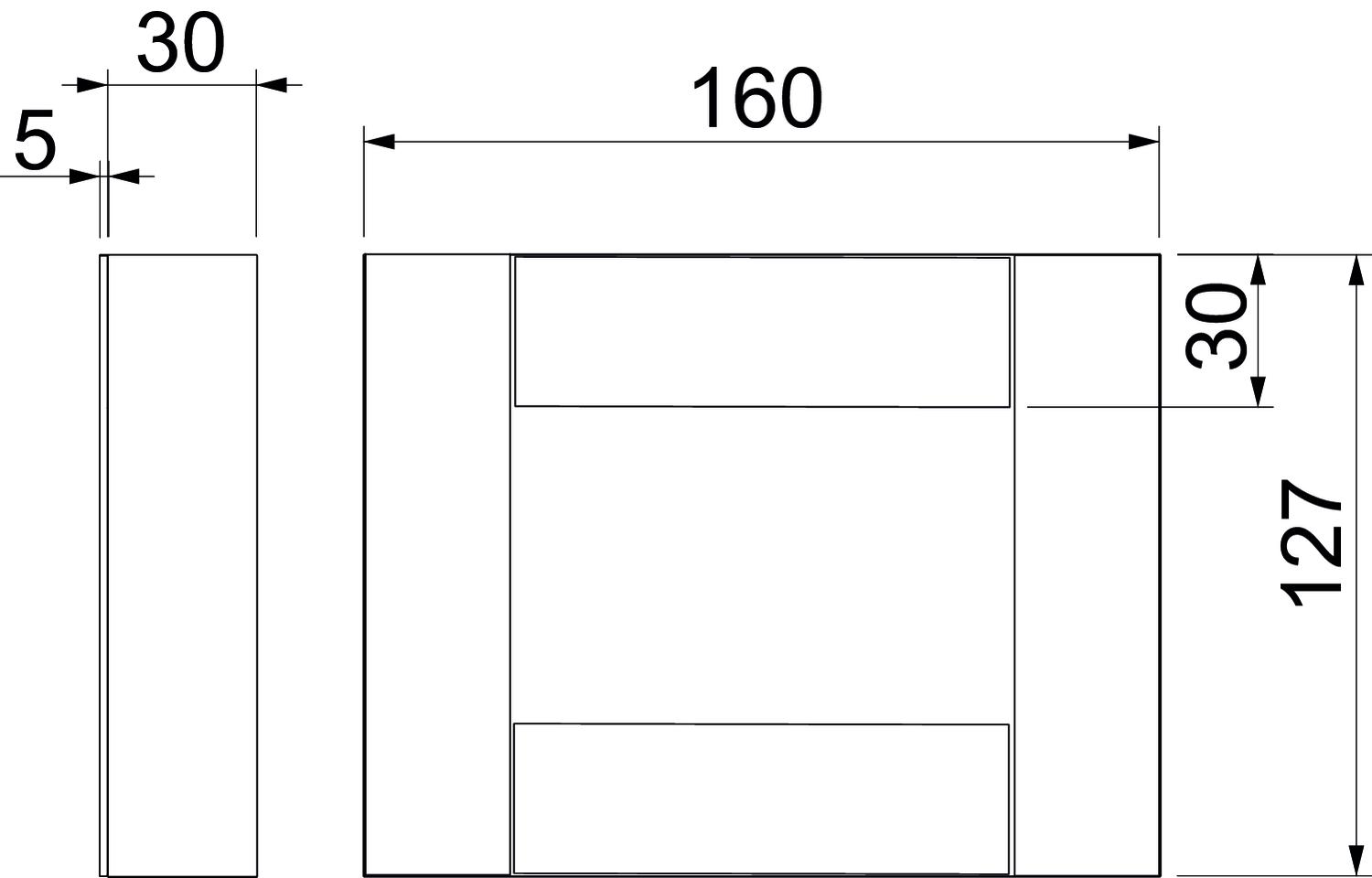

Scale drawing PLCD E060810 / 7215840, 45.98 kB, jpg

No invitation to tender text is available for this product.
