EDS plug-in seal, light grey | 17 | M20 | Light grey; RAL 7035
morepic-1 morepic-2

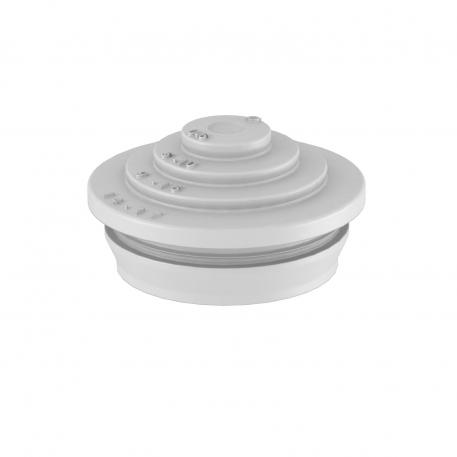

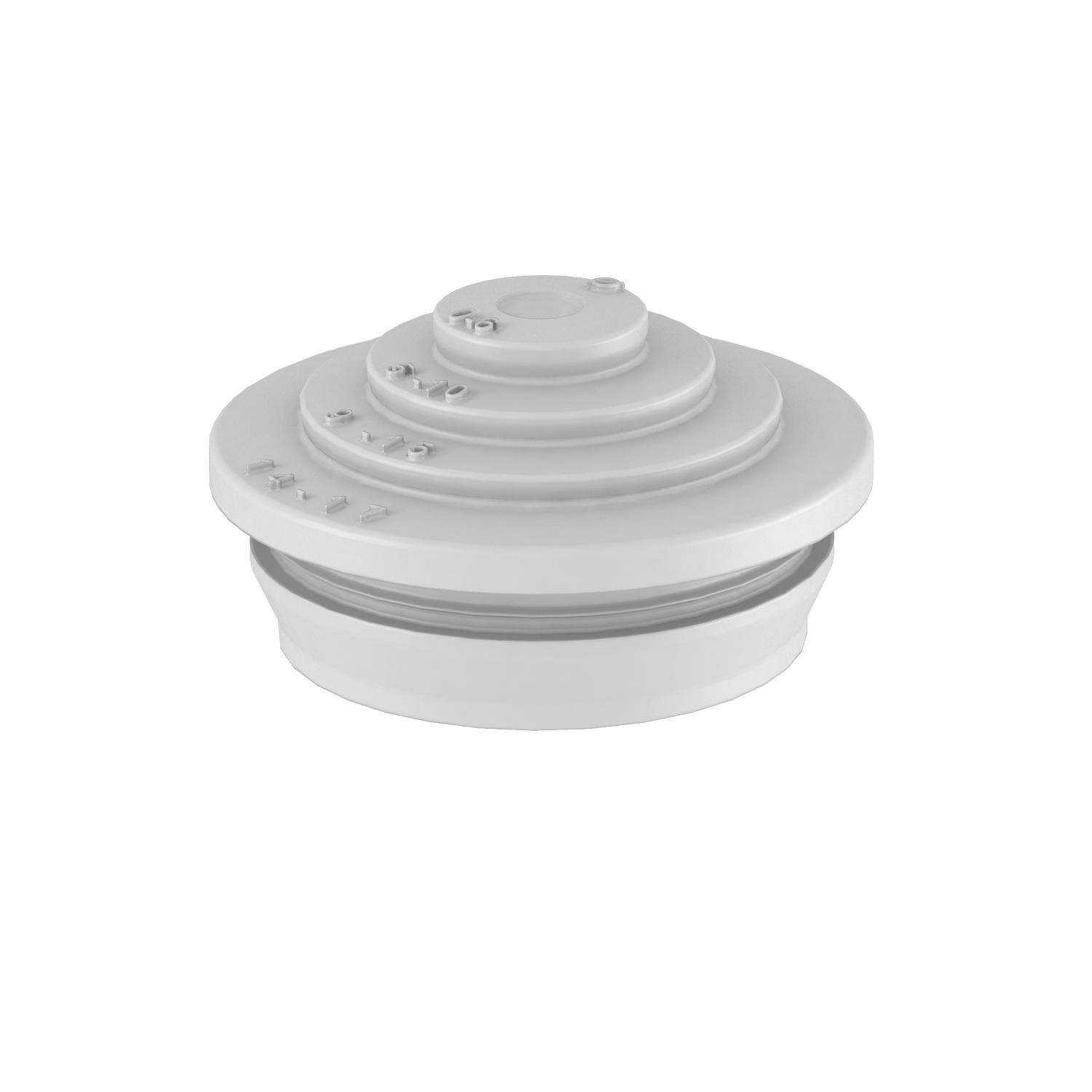

EDS plug-in seal, light grey

Item no. 2012350 | EAN 4012196478064

Light grey; RAL 7035
Product description

Product description

The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension M20
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 17 mm
for wall thickness, max. 3,1
for wall thickness, min. 2,5
Halogen-free yes
Material Thermoplastic elastomer
Nominal diameter 20 mm
Protection rating IP54
Size M20
Version for Cuttable

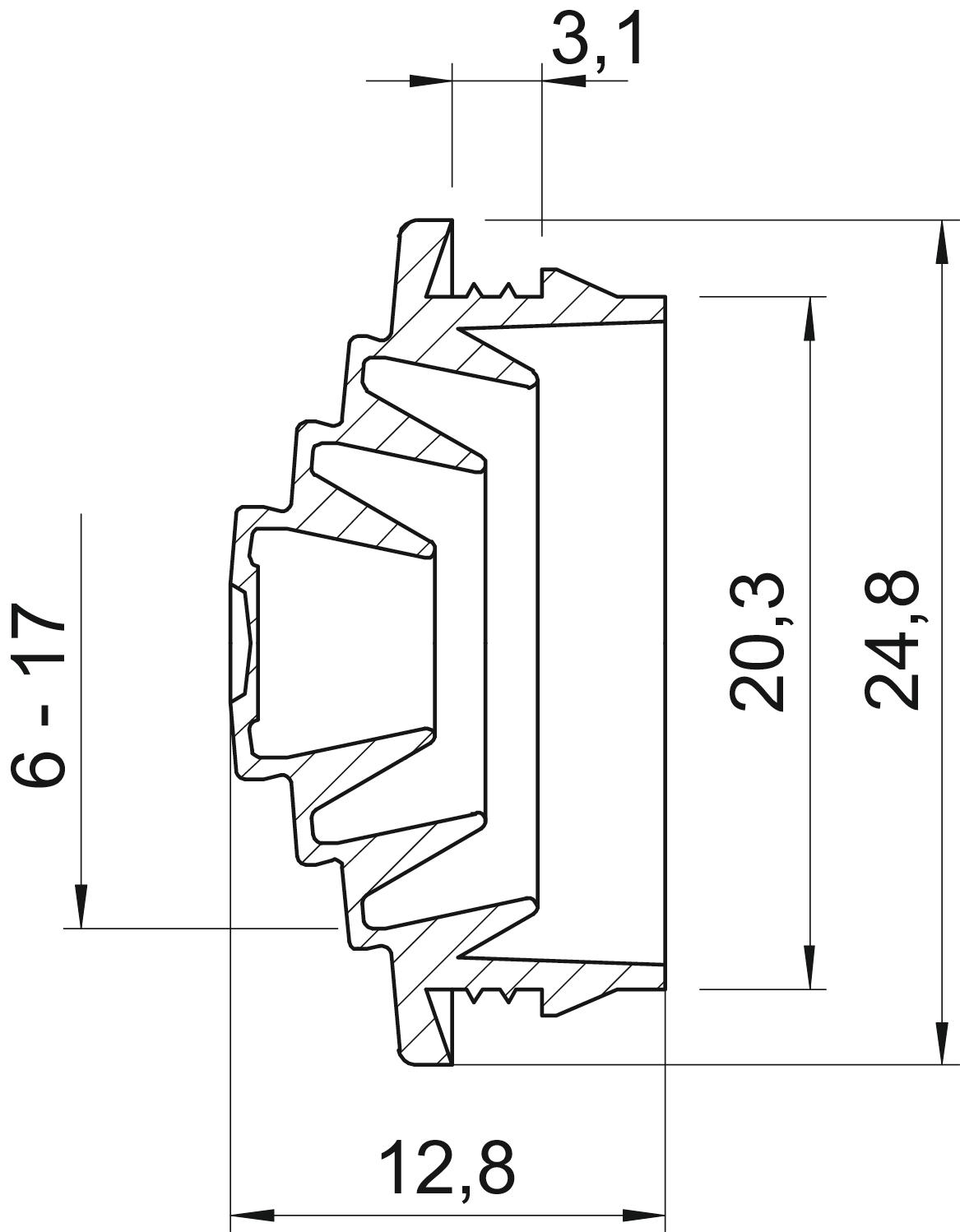

Dimensions

Dimension A 3,1 mm
Dimension D1 24,8 mm
Dimension D2 20,3 mm
Dimension D3 6 mm
Dimension D4 10 mm
Dimension D5 15 mm
Dimension L 12,8 mm
Dimension t 3,1 mm
All types

All types

Types for diameter, max. Size Colour Item no. Quantity SSU
EDS M20 LGR 17 mm M20 Light grey; RAL 7035 2012350
100 piece
EDS M25 LGR 22 mm M25 Light grey; RAL 7035 2012354
100 piece
EDS M32 LGR 28 mm M32 Light grey; RAL 7035 2012358
50 piece
