Note: This article is discontinued. You can find the current article here: 6249762 / Edge protection ring KSR 80080, for LKM cable trunking type 80080

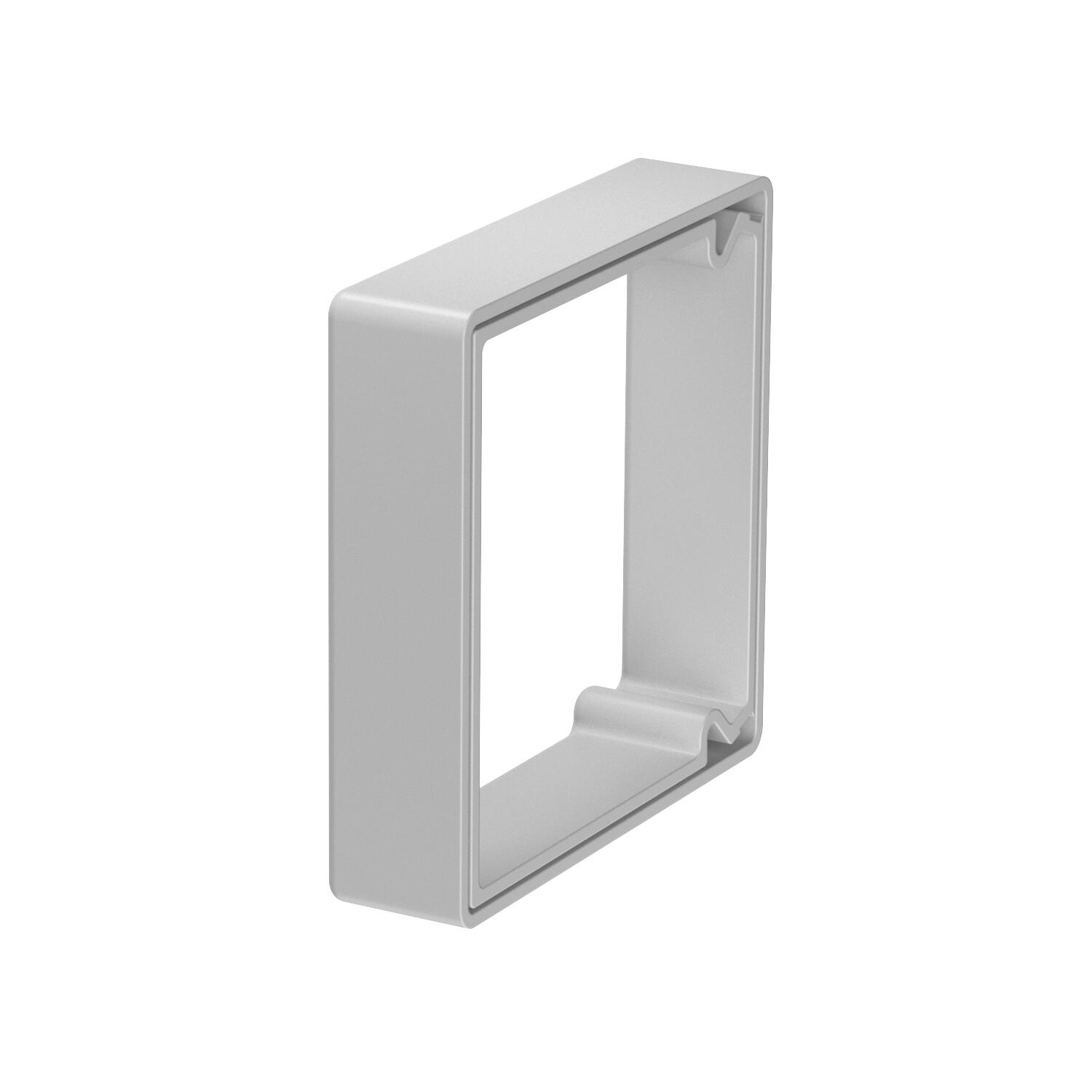

Edge protection ring KSR 80080, for LKM cable trunking LKM 80080

Item no. 6249865 | EAN 4012195691037

6249865 / KSR80080
84 mm
84 mm
Product description

Product description

Edge protection ring for the open ends of LKM cable trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Grey
Dimension 80x80mm

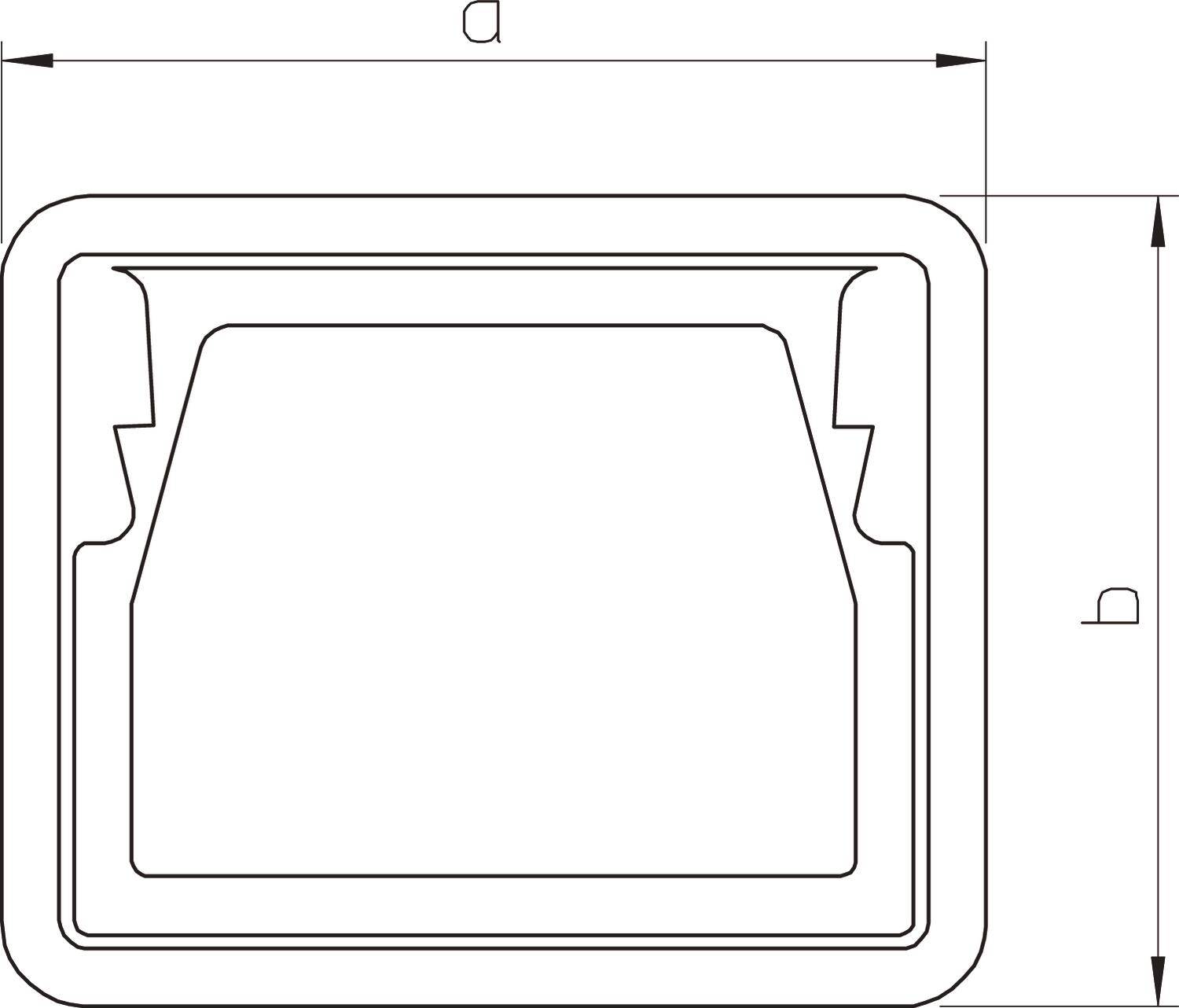

Dimension a 84 mm
Dimension b 84 mm
Halogen-free yes
Height 84 mm
Length 21 mm
Material Polyvinylchloride
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Suitable for Cable routing duct
Type Injection-moulded part
Width 84 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
KSR80080 84 mm 84 mm 6249865
5 piece
