Note: This article is discontinued.
Edge protection ring KSR 60200, for LKM cable trunking type LKM 60200 204 | 68
morepic-1 morepic-2 video-1

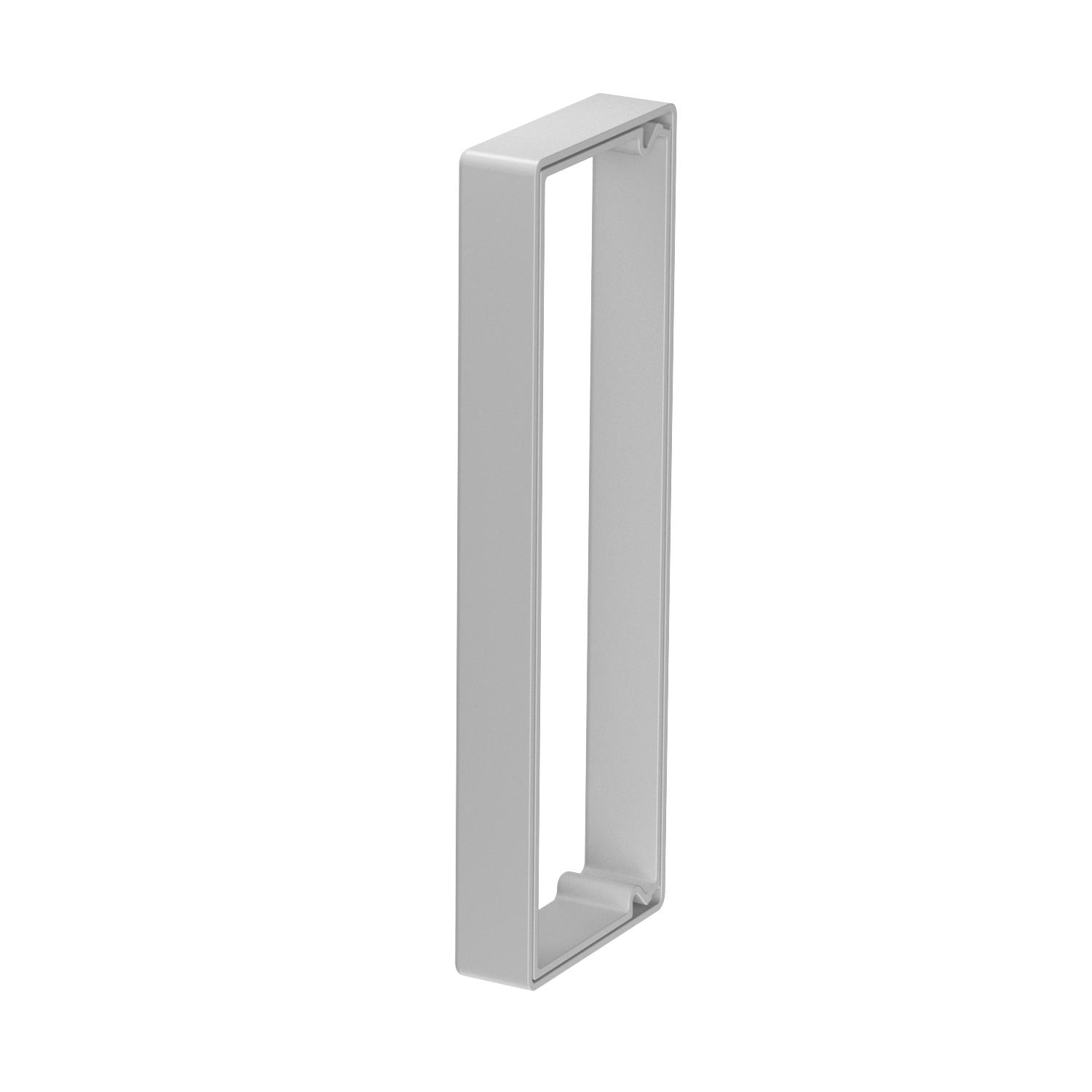

Edge protection ring KSR 60200, for LKM cable trunking type LKM 60200

Item no. 6249856 | EAN 4012195020394

6249856 / KSR60200
204 mm
68 mm
Product description
Product description
Edge protection ring for the open ends of LKM cable trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Grey
Dimension 60x200mm

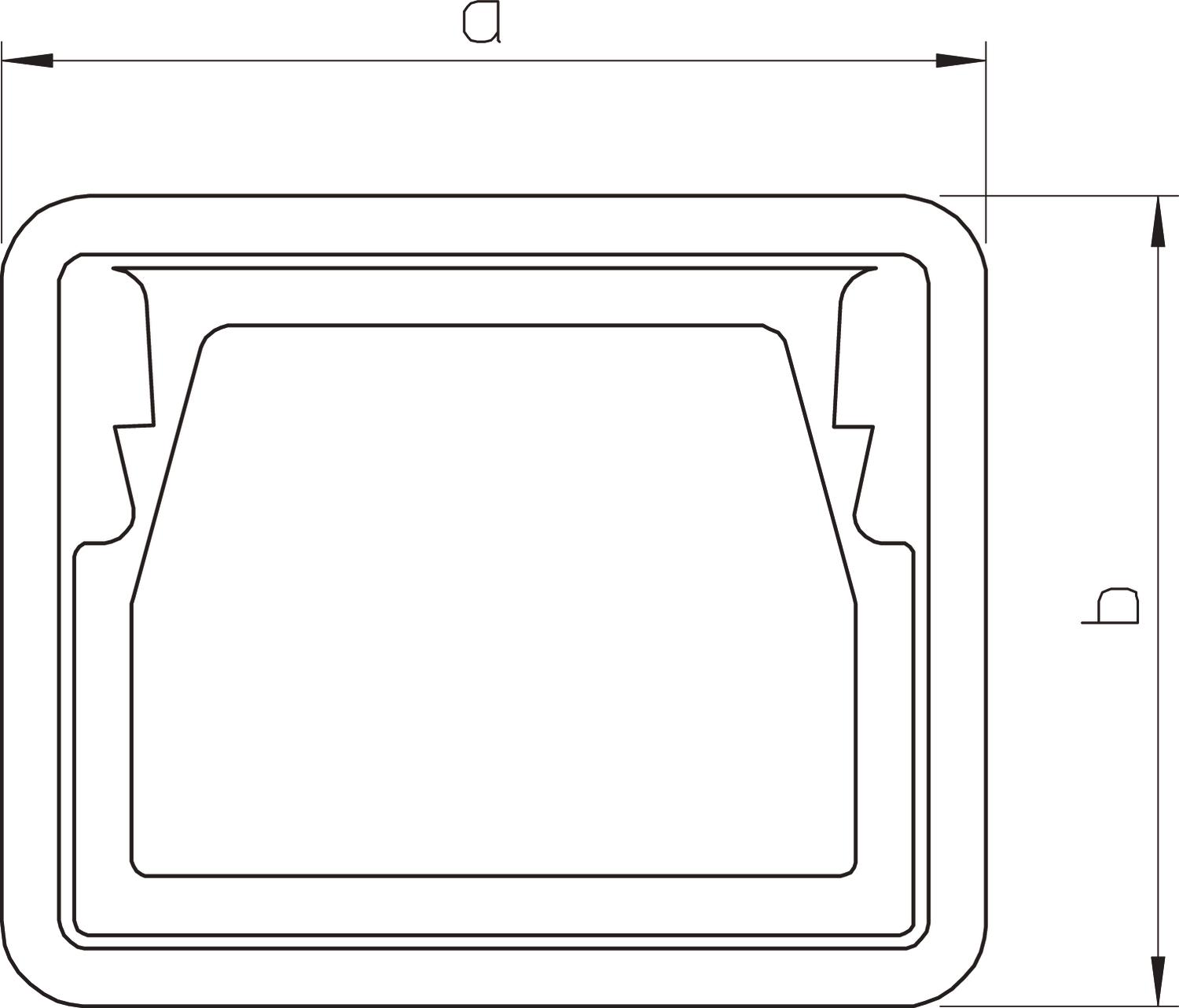

Dimension a 204 mm
Dimension b 68 mm
Halogen-free yes
Height 68 mm
Length 21 mm
Material Polyvinylchloride
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Suitable for Cable routing duct
Type Injection-moulded part
Width 204 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
KSR60200 204 mm 68 mm 6249856
5 piece
