Note: This article is discontinued.
Edge protection ring KSR 40060, for LKM cable trunking type LKM 40060
Item no. 6249848 | EAN 4012196018956
- Product description
-
Product description

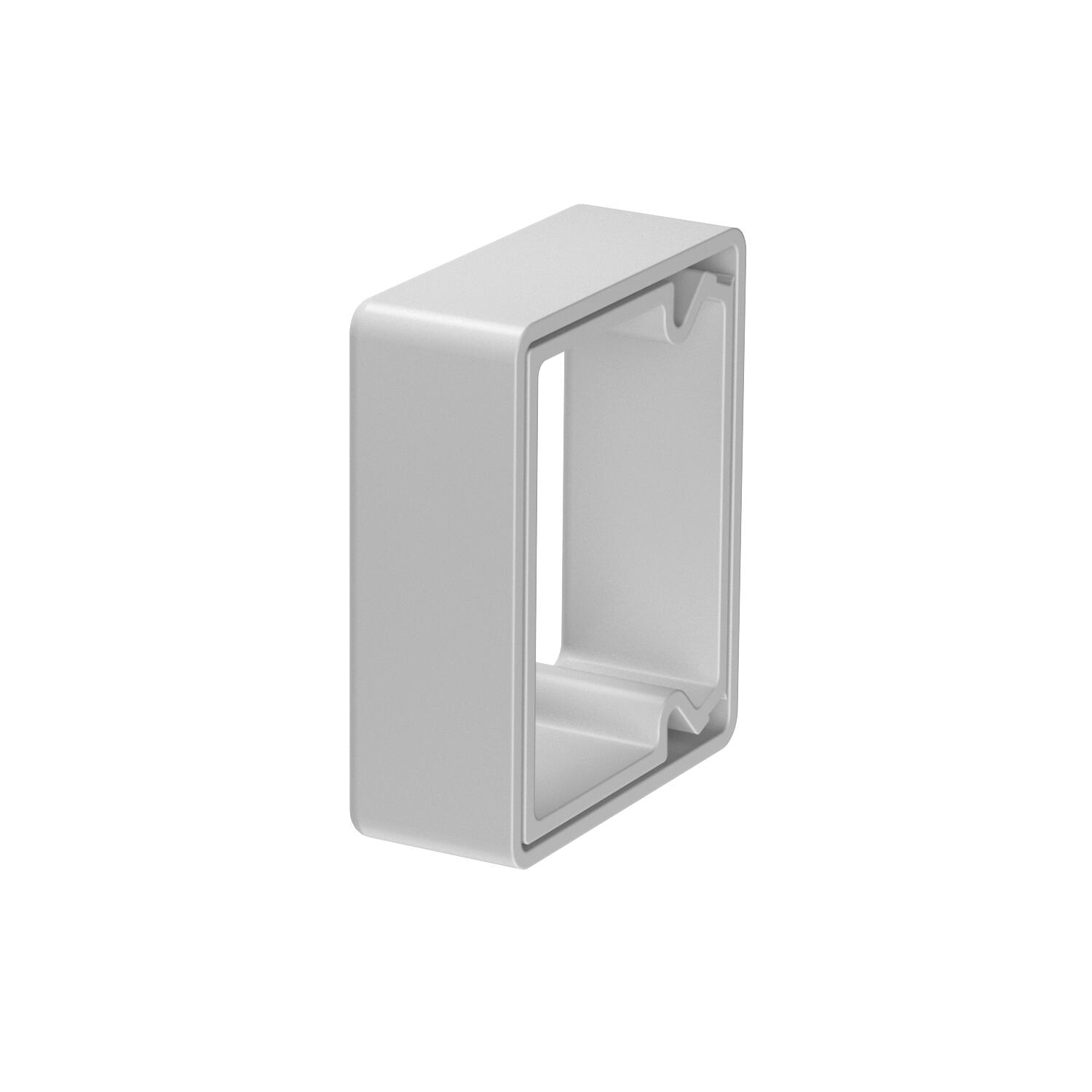

Edge protection ring for the open ends of LKM cable trunking.
-
- Technical data
-
Technical data
Colour Grey Dimension 40x60mm Halogen-free yes Material Polyvinylchloride Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Suitable for Cable routing duct Type Injection-moulded part Dimensions

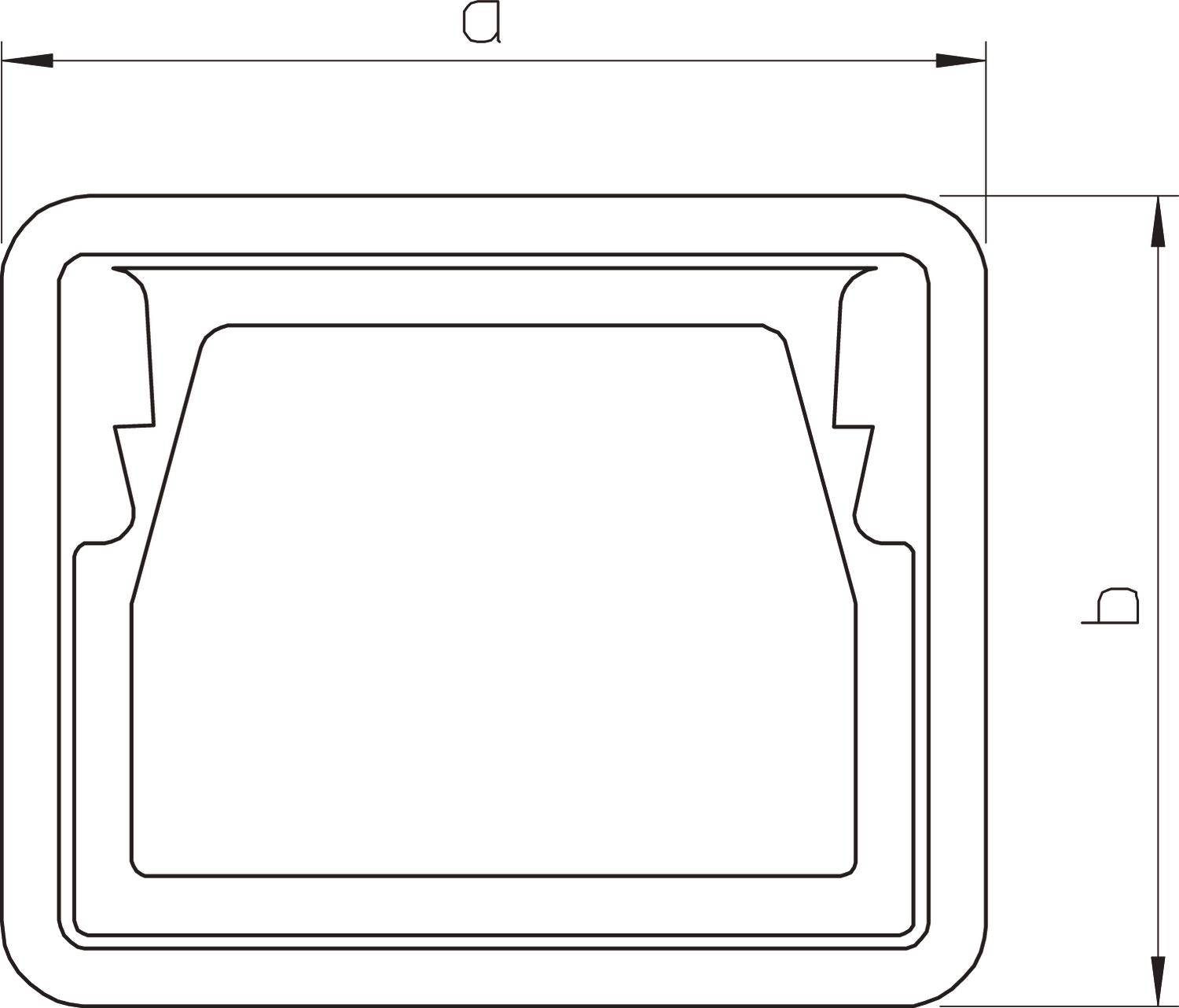

Dimension a 64 mm Dimension b 48 mm Height 48 mm Length 21 mm Width 64 mm - All types
- Downloads
-
Data sheet KSR40060 / 6249848 , 0.26MB , pdfDeclaration of conformity KSR40060 / 6249848 , 0.17MB , pdfUK Declaration of Conformity KSR40060 / 6249848 , 0.14MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdf
