Earthing terminal for cables and flat conductors G
Item no. 5043107 | EAN 4012195386056
- Product description
-
Product description• For cables to 16 mm² and flat conductors
• Fit: cable to 16 mm² x max. FL 30
• With riveted brass connection terminal and one cylinder bolt, M5 x 12, with two cylinder bolts, M6 x 16
- Technical data
-
Technical data

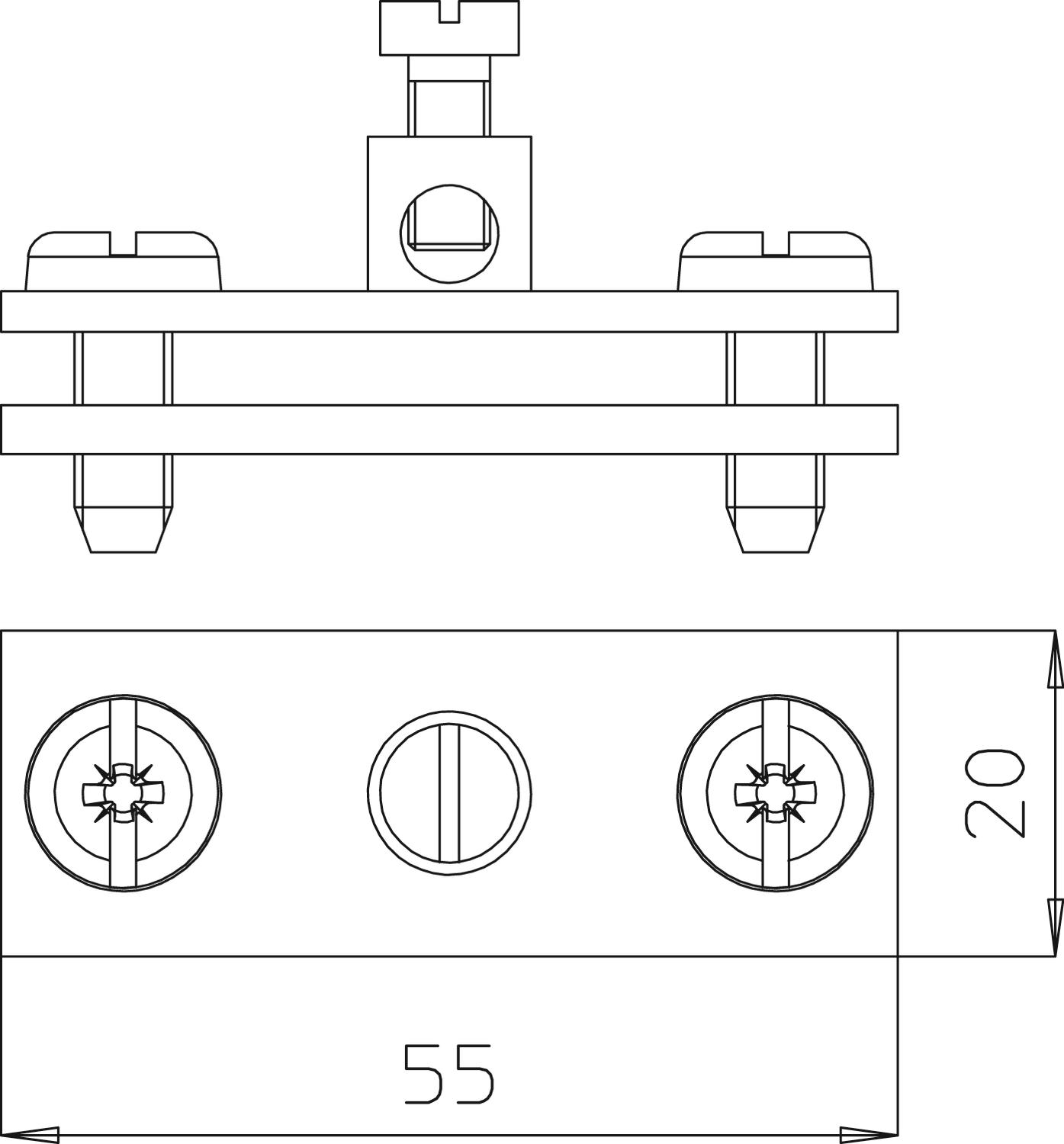

Dimension 55mm Material Steel Suitable for Round conductor Surface Electrogalvanized - All types
- Downloads
-
Data sheet 939 / 5043107 , 0.16MB , pdfEU declaration of conformity 939 / 5043107 , 0.06MB , pdfREACH Declaration of conformity 939 / 5043107 , 0.13MB , pdfRoHS Declaration of conformity 939 / 5043107 , 0.12MB , pdf
