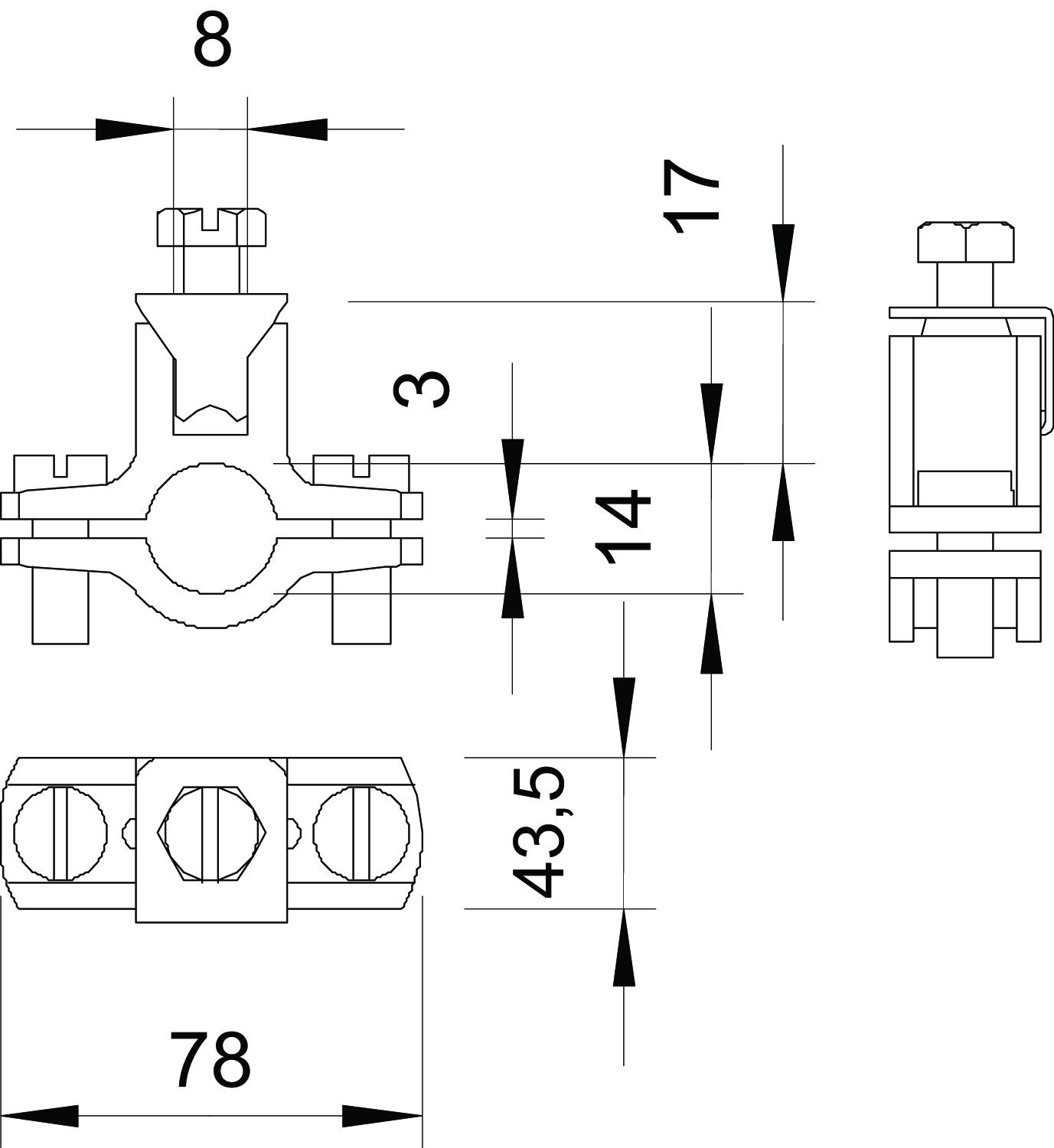

Earthing strap, type 950 78 | 3 | 40.5 | 43.5

Earthing strap, type 950

Item no. 5050138 | EAN 4012195386414

Item no. / Types

Dimension A

Dimension X

Clamping range D, min.

Clamping range D, max.

Product description

Product description

• For pipes Ø 1/4"-2"

• Connection options: conductors to 35 mm² or round conductors to Ø 6 mm

• With captive pressure strip, 2 cylinder bolts M6 x 16 and 1 hex-head screw M6 x 16

from galvanised steel, top and bottom part of clamp from die-cast zinc

Technical data

Technical data

Clamping range D	1 1/4
Clamping range D, max.	43,5 mm
Clamping range D, min.	40,5 mm
Cross-section of cable to be connected, max.	35 mm²
Dimension	1 1/4"
Dimension A	78 mm

Dimension D	43,5 mm
Dimension X	3 mm
Material	Die-cast zinc
Number of conductors	1
Surface	Electrogalvanized

All types

All types

Types	Dimension A	Dimension X	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
950 Z 1/4	45 mm	2 mm	12 mm	14 mm	5050030	piece	10 piece
950 Z 3/8	50 mm	2 mm	15.5 mm	17.5 mm	5050057	piece	10 piece
950 Z 1/2	54 mm	2.5 mm	20 mm	22.5 mm	5050073	piece	10 piece
950 Z 3/4	61 mm	3 mm	25 mm	28 mm	5050081	piece	10 piece
950 Z 1	66 mm	3 mm	31.5 mm	34.5 mm	5050111	piece	10 piece
950 Z 1 1/4	78 mm	3 mm	40.5 mm	43.5 mm	5050138	piece	10 piece
950 Z 1 1/2	84 mm	3 mm	46.5 mm	49.5 mm	5050154	piece	10 piece
950 Z 1 3/4	88 mm	3 mm	51 mm	54 mm	5050170	piece	10 piece
950 Z 2	96 mm	3 mm	58.5 mm	61.5 mm	5050197	piece	10 piece
