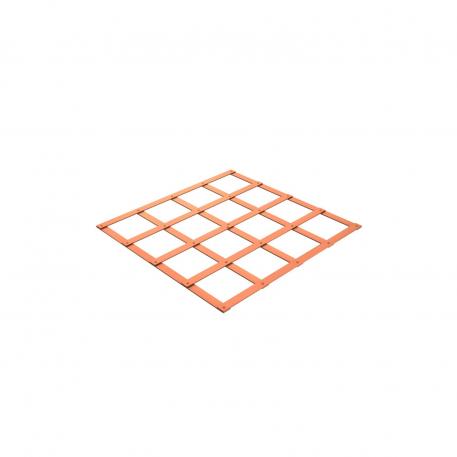

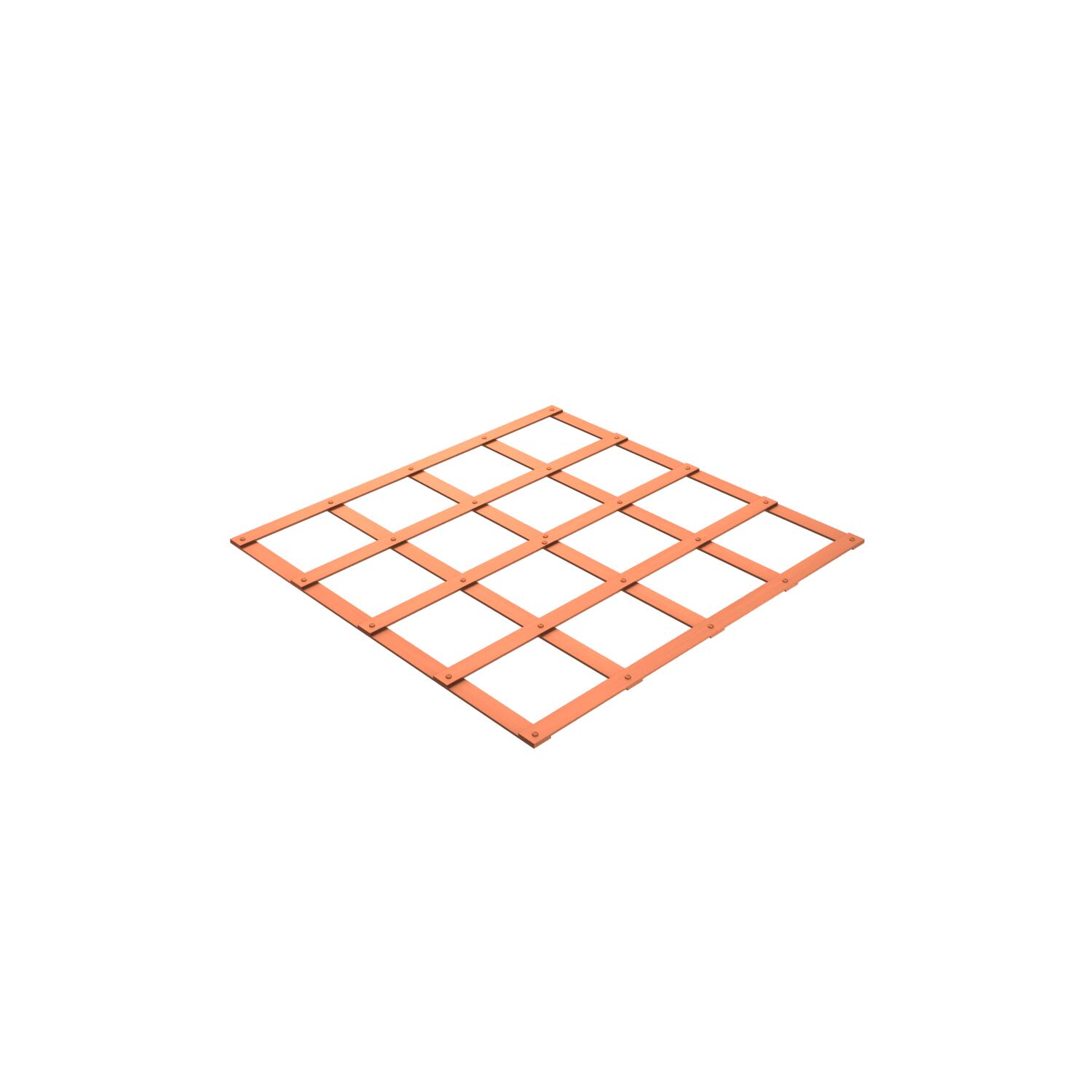

Earthing mats

Item no. / Types

Width

Product description

Product description

• To reduce the step and contact voltage
• In accordance with IEC 62561-2 and IEC 62305-3

Technical data

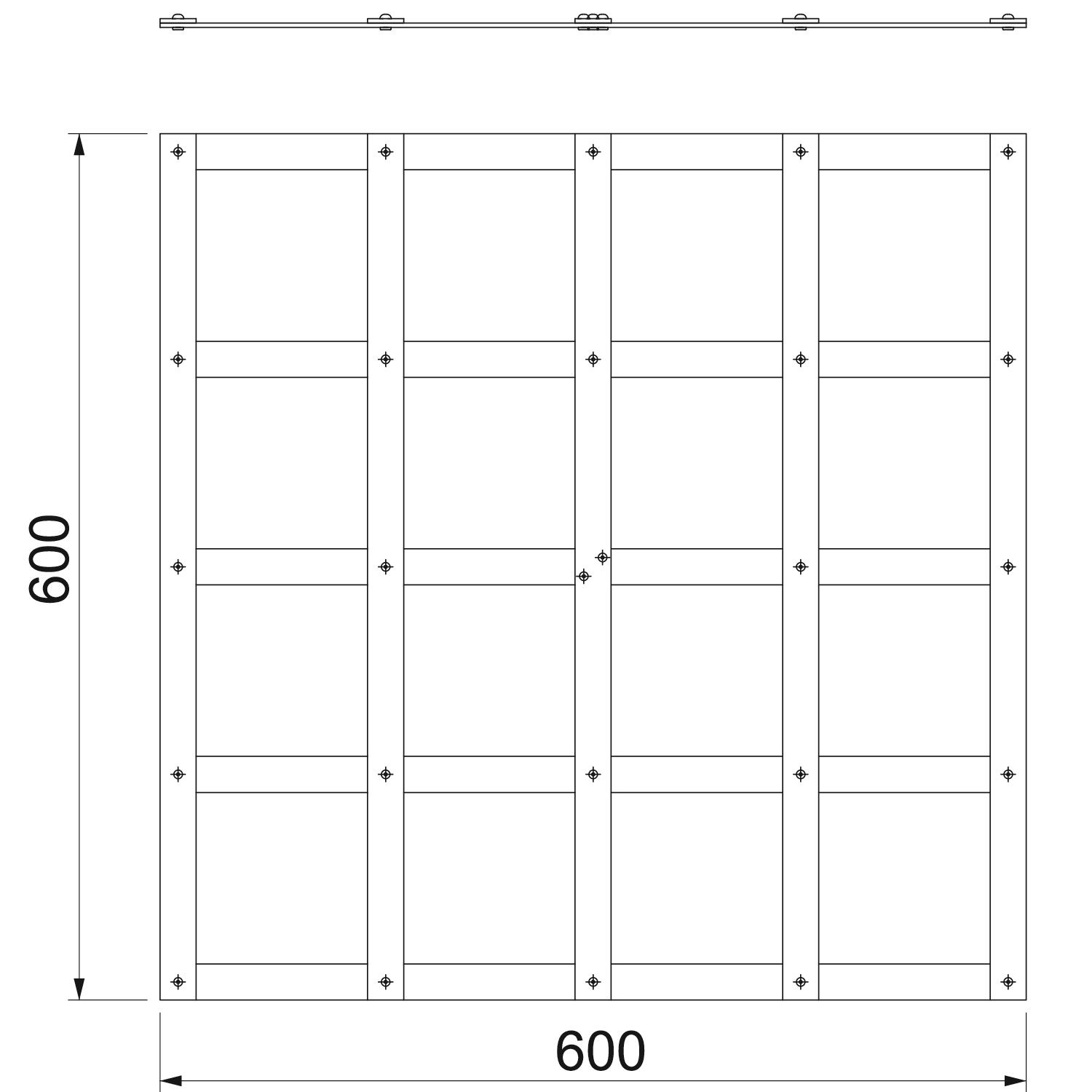

Dimension	600x600x3

Material	Copper

Height	3 mm
Length	600 mm

Width	600 mm

All types

Types	Width	Item no.	Quantity	SSU
1816 CU 6	600 mm	5009250	piece	1 piece
1816 CU 9	900 mm	5009256	piece	1 piece
