Earthing clamp, type 952 94 | 3 | 45.5 | 48.5

Earthing clamp, type 952

Item no. 5052157 | EAN 4012195387077

Item no. / Types

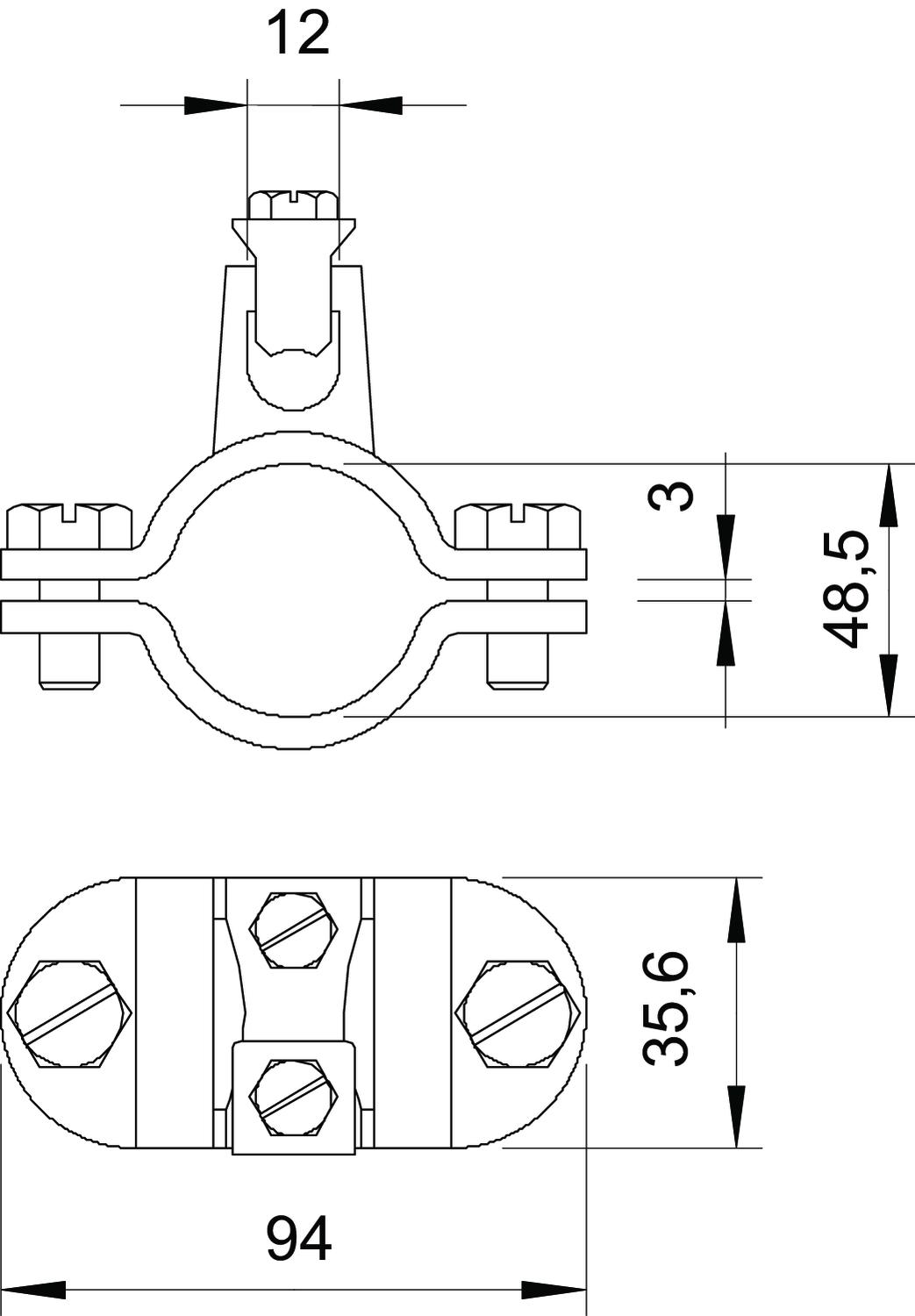

Dimension A

Dimension X	3 mm

Clamping range D, min.

Clamping range D, max.

Product description

Product description

• For pipes 1/2-2" or Ø 11.5-60 mm

• Connection options: conductors 16-70 mm² and/or round conductors to Rd 10

with captive pressure strip from stainless steel

• With 2 hexagonal bolts M6 x 16 and 2 hexagonal bolts M6 x 20 from hot-dip galvanised steel

• Top section of clamp with cast contact point from die-cast zinc, bottom section of clamp from hot-dip galvanised steel

Technical data

Technical data

Clamping range D	1 1/2
Clamping range D, max.	48,5 mm
Clamping range D, min.	45,5 mm
Cross-section of cable to be connected, max.	70 mm²
Cross-section of cable to be connected, min.	16 mm²
Dimension	1 1/2"

Dimension A	94 mm
Dimension D	48,5 mm
Dimension X	3 mm
Material	Steel
Number of conductors	1
Surface	Hot-dip galvanised

All types

All types

Types	Dimension A	Dimension X	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
952 Z 1/2	65 mm	3 mm	18.5 mm	21.5 mm	5052076	piece	5 piece
952 Z 3/4	71 mm	3 mm	24 mm	27 mm	5052092	piece	5 piece
952 Z 1	77 mm	3 mm	30.5 mm	33.5 mm	5052114	piece	5 piece
952 Z 1 1/4	87 mm	3 mm	39.5 mm	42.5 mm	5052130	piece	5 piece
952 Z 1 1/2	94 mm	3 mm	45.5 mm	48.5 mm	5052157	piece	5 piece
952 Z 2	105 mm	3 mm	57 mm	60 mm	5052181	piece	5 piece
