- Product description
-
Product description
• For pipes 1/2-2" or Ø 11.5-60 mm
• Connection options: conductors 16-70 mm² and/or round conductors to Rd 10
with captive pressure strip from stainless steel
• With 2 hexagonal bolts M6 x 16 and 2 hexagonal bolts M6 x 20 from hot-dip galvanised steel
• Top section of clamp with cast contact point from die-cast zinc, bottom section of clamp from hot-dip galvanised steel
- Technical data
-
Technical data

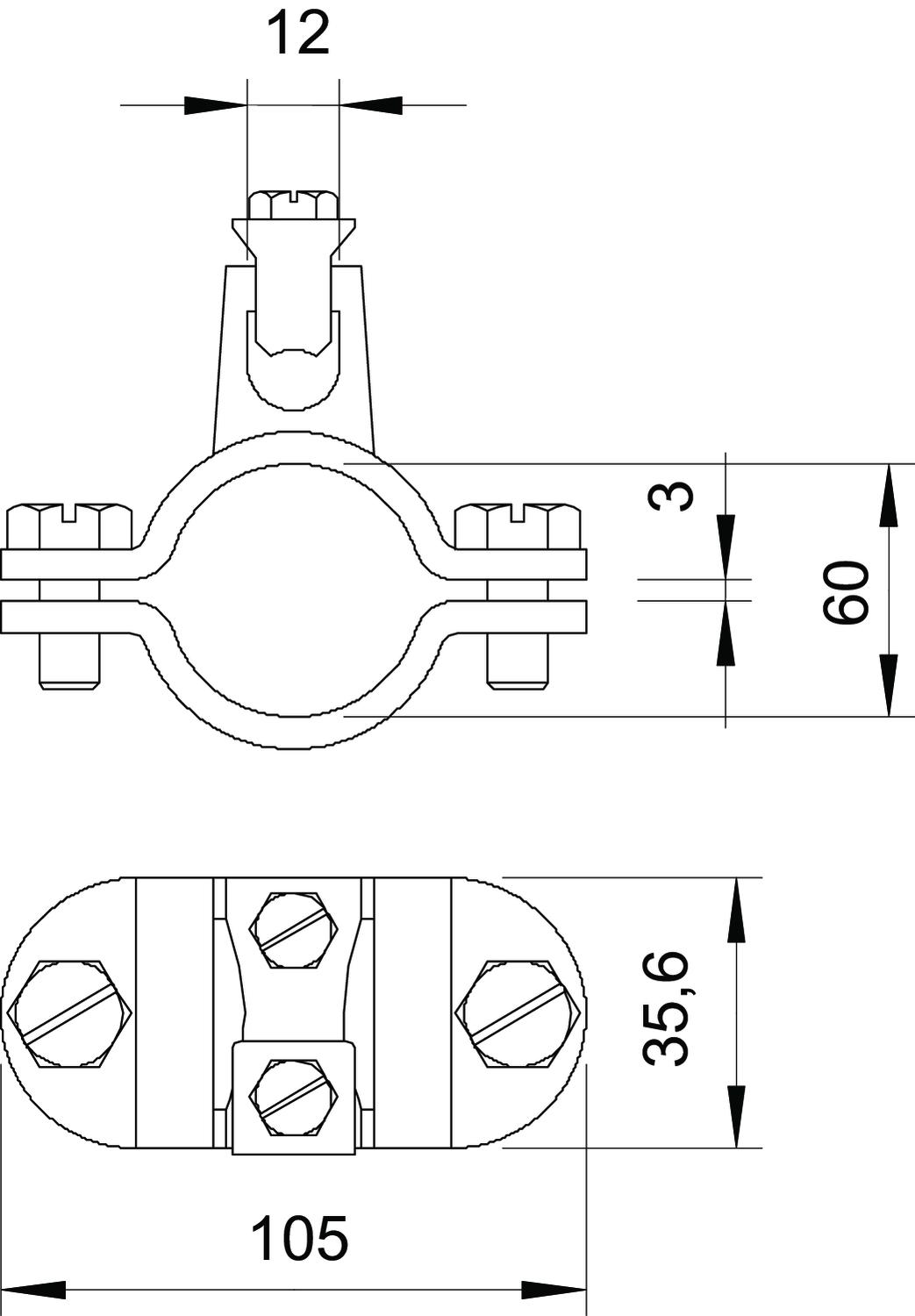

Clamping range D 2 Clamping range D, max. 60 mm Clamping range D, min. 57 mm Cross-section of cable to be connected, max. 70 mm² Cross-section of cable to be connected, min. 16 mm² Dimension 2" Dimension A 105 mm Dimension D 60 mm Dimension X 3 mm Material Steel Number of conductors 1 Surface Hot-dip galvanised - All types
-
All types
- Downloads
-
Data sheet 952 Z 2 / 5052181 , 0.16MB , pdfDeclaration of conformity 952 Z 2 / 5052181 , 0.06MB , pdfREACH Declaration of conformity 952 Z 2 / 5052181 , 0.27MB , pdfRoHS Declaration of conformity 952 Z 2 / 5052181 , 0.12MB , pdf
